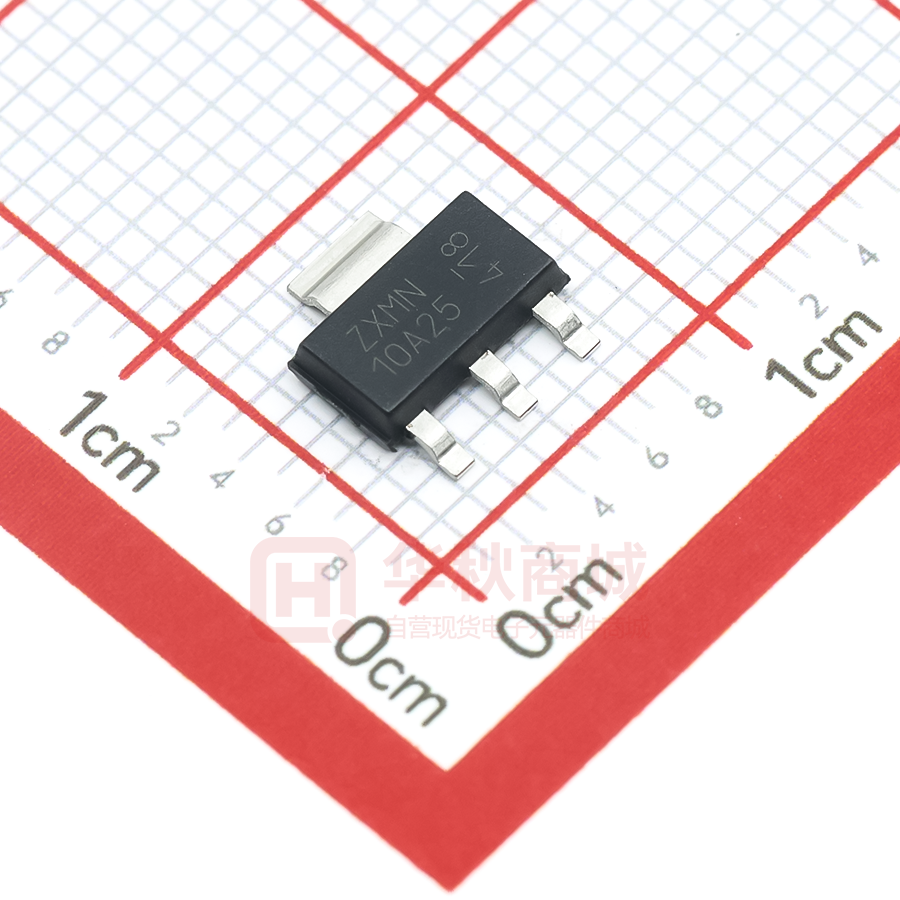

ZXMN10A25GTA

ZXMN10A25G Green 100V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Description        This new generation MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, Mechanical Data RDS(on) max ID TA = +25°C 125mΩ @ VGS = 10V 4.0A 150mΩ @ VGS = 6.0V 3.7A V(BR)DSS 100V making it ideal for high efficiency power management applications. Applications        DC Motor Control DC-AC Inverters  Low On-Resistance Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Case: SOT223 Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals Connections: See Diagram Below Terminals: Finish - Matte Tin Annealed over Copper Leadframe; Solderable per MIL-STD-202, Method 208 Weight: 0.112 grams (Approximate) D SOT223 G S Equivalent Circuit Pin Out - Top View Top View Ordering Information (Note 4) Part Number ZXMN10A25GTA Notes: Qualification Standard Case SOT223 Packaging 1,000 / Tape & Reel 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
