ZXMN3A01F
30V N-CHANNEL ENHANCEMENT MODE MOSFET
ADVANCED INFORMATION
Product Summary
V(BR)DSS
RDS(ON)
30V
0.12Ω @ VGS = 10V
Features
ID
TA = +25°C
2.0A
Description
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Low On-Resistance
Fast Switching Speed
Low Threshold
Low Gate Drive
Small Surface Mount Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Applications
DC-DC Converters
Power Management Functions
Motor Control

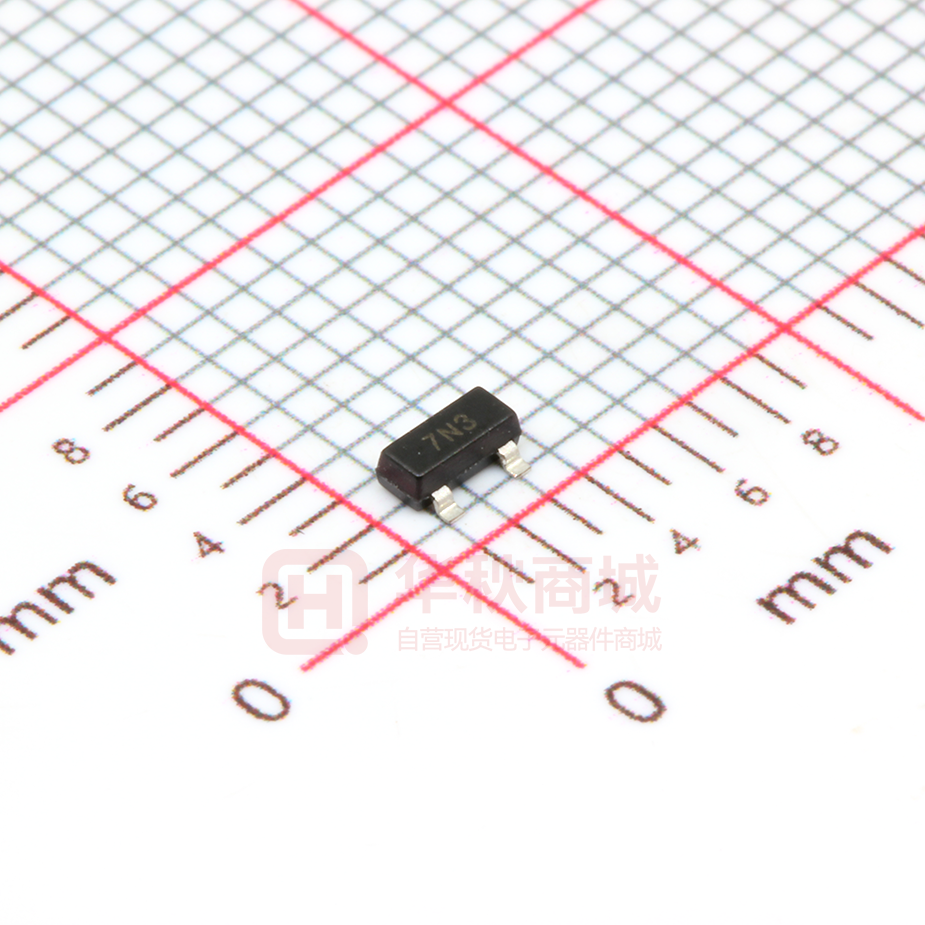

Case: SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208 e3
Lead Free Plating (Matte Tin Finish Annealed over Alloy 42
Leadframe)
Terminal Connections: See Diagram
Weight: 0.006 grams (Approximate)
D
D
G
S
G
Top View
Pin Configuration
Top View
S
Equivalent Circuit
Ordering Information (Note 4)
Part Number
ZXMN3A01FTA
ZXMN3A01FTC
Notes:
Case
SOT23
SOT23
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
