A Product Line of
Diodes Incorporated
Green
ZXMP3A16G
Product Summary
Features and Benefits
ID max
RDS(on) max
V(BR)DSS
TA = +25°C
(Note 6)
-30V
•
Low On-Resistance
•
Fast Switching Speed
•
Low Threshold
•
Low Gate Drive
45mΩ @ VGS = -10V
-7.5A
•
Lead Free Finish; RoHS Compliant (Notes 1 & 2)
70mΩ @ VGS = -4.5V
-5.9A
•
Halogen and Antimony Free. “Green Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Description and Applications
Mechanical Data
This MOSFET is designed to minimize the on-state resistance and yet
maintain superior switching performance, making it ideal for highefficiency power management applications.
•

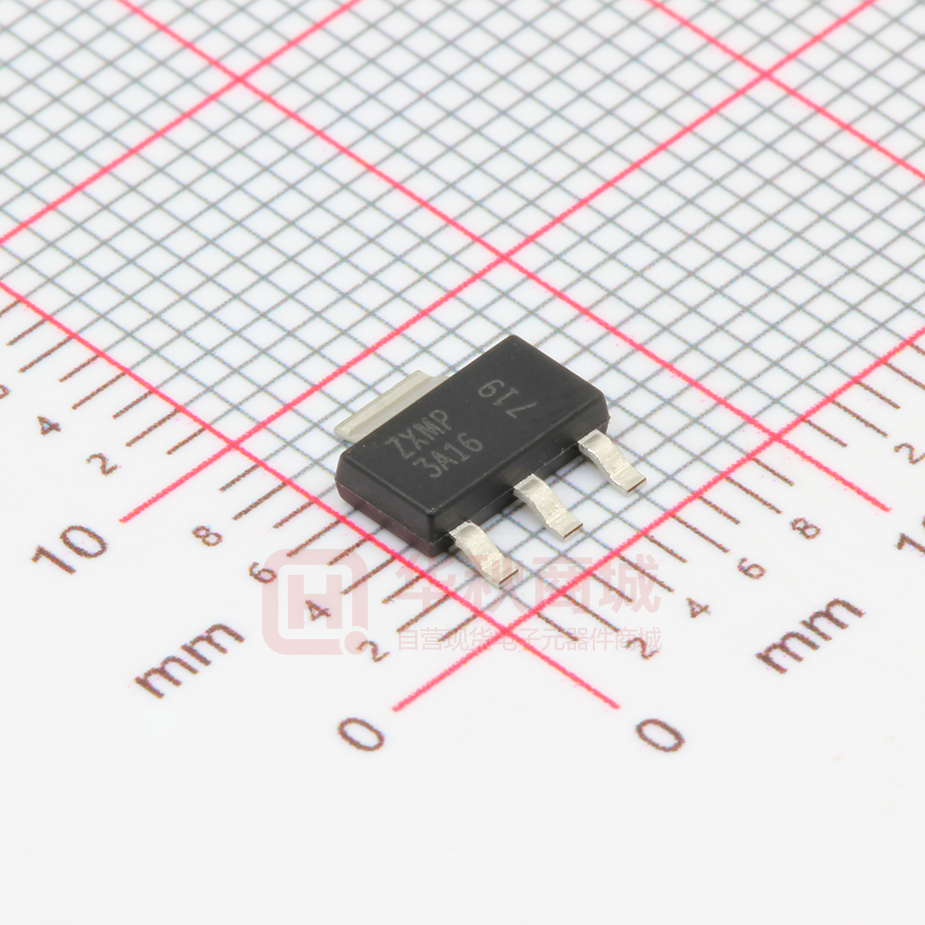

Case: SOT223
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Motor Control
•
Moisture Sensitivity: Level 1 per J-STD-020
•
DC-DC Converters
•
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
•
Power Management Functions
•
Weight: 0.112 grams (Approximate)
•
Relay and Solenoid Driving
•
SOT223
D
G
S
Pin Out - Top View
Top View
Equivalent Circuit
Ordering Information (Note 4)
Product
ZXMP3A16GTA
ZXMP3A16GTC
Notes:
Marking
ZXMP3A16
ZXMP3A16
Reel size (inches)
7
13
Tape width (mm)
12
12
Quantity per reel
1,000
4,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
