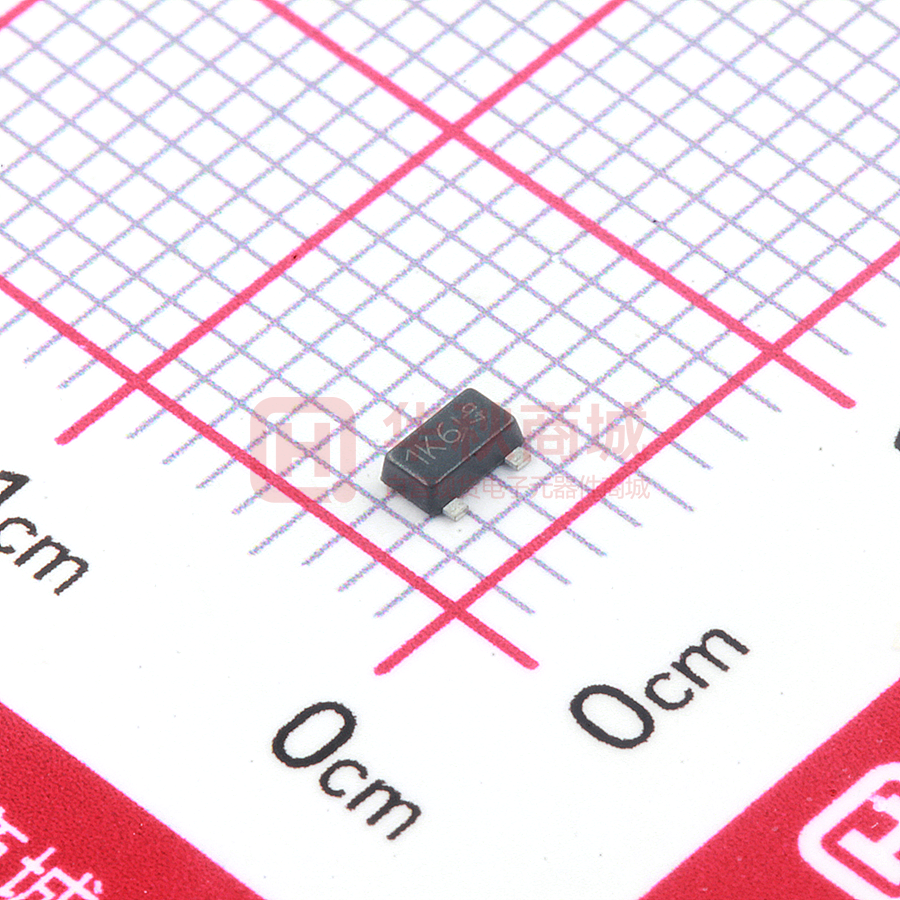

ZXMS6004FFTA

ZXMS6004FF DMN2027USS 60V N-CHANNEL SELF PROTECTED ENHANCEMENT MODE IntelliFET MOSFET Product Summary Features and Benefits                 Continuous Drain Source Voltage: 60V On-State Resistance: 500mΩ Nominal Load Current (VIN = 5V): 1.3A Clamping Energy: 90mJ Description The DIODES™ ZXMS6004FF is a self-protected low side IntelliFET® MOSFET with logic level input. It integrates overtemperature, overcurrent, overvoltage (active clamp) and ESD protected logic level functionality. The ZXMS6004FF is ideal as a general purpose switch driven from 3.3V or 5V microcontrollers in harsh environments where standard MOSFETs are not rugged enough. Compact High Power Dissipation Package Low Input Current Logic Level Input (3.3V and 5V) Short Circuit Protection with Auto Restart Over Voltage Protection (Active Clamp) Thermal Shutdown with Auto Restart Overcurrent Protection Input Protection (ESD) High Continuous Current Rating Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://www.diodes.com/products/automotive/automotiveproducts/. This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (ZXMS6004FFQ) Applications       Especially suited for loads with a high in-rush current such as lamps and motors All types of resistive, inductive and capacitive loads in switching applications μC compatible power switches for 12V and 24V DC applications Automotive rated Replaces electromechanical relays and discrete circuits Linear mode capabilities – the current-limiting protection circuitry is designed to de-activate at low VDS to minimize on state power dissipation. The maximum DC operating current is therefore determined by the thermal capability of the package/board combination, rather than by the protection circuitry. This does not compromise the product’s ability to self-protect at low VDS.   Mechanical Data   Package: SOT23F Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020   Terminals: Finish – Matte Tin Plated Leads, Solderable per MILSTD-202, Method 208 Weight: 0.012 grams (Approximate)  SOT23F S D IN Top View Top View Pin Out Ordering Information (Note 4) Part Number Package Marking Reel Size (inches) Tape Width (mm) ZXMS6004FFTA SOT23F 1K6 7 12 Notes: Packing Qty. Carrier 3,000 Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
