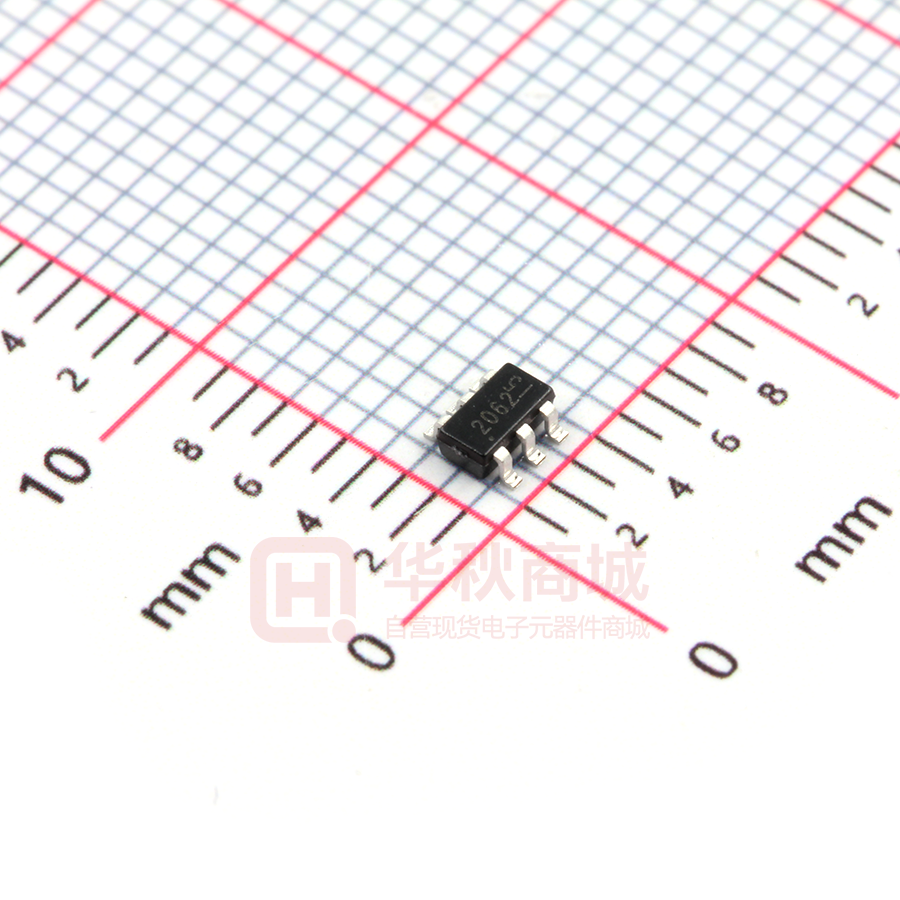

ZXTC2062E6TA

A Product Line of Diodes Incorporated ZXTC2062E6 20V COMPLEMENTARY MEDIUM POWER TRANSISTORS IN SOT26 ADVANCE INFORMATION Features • • • • • • • • • Mechanical Data NPN + PNP Combination BVCEO > 20 (-20)V BVEBO > 7 (-7)V Continuous Collector Current IC = 4 (-3.5)A VCE(sat) < 50 (-65)mV @ 1A RCE(sat) = 35 (54)mΩ Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability • Applications • • SOT26 Case: SOT26 Case Material: Molded Plastic, “Green” Molding Compound UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 Weight: 0.015 grams (Approximate) • • • • • MOSFET and IGBT Gate Driving Motor Drive C1 C2 B1 B2 Q1 Top View Q2 E1 E2 C1 E1 B1 B2 C2 E2 Device Symbol Top View Pin-Out Ordering Information (Note 4) Product ZXTC2062E6TA Notes: Marking 2062 Reel size (inches) 7 Tape width (mm) 8 Quantity per reel 3,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/ for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free. 3. Halogen and Antimony free "Green” products are defined as those which contain
