ZXTR2005Z-7

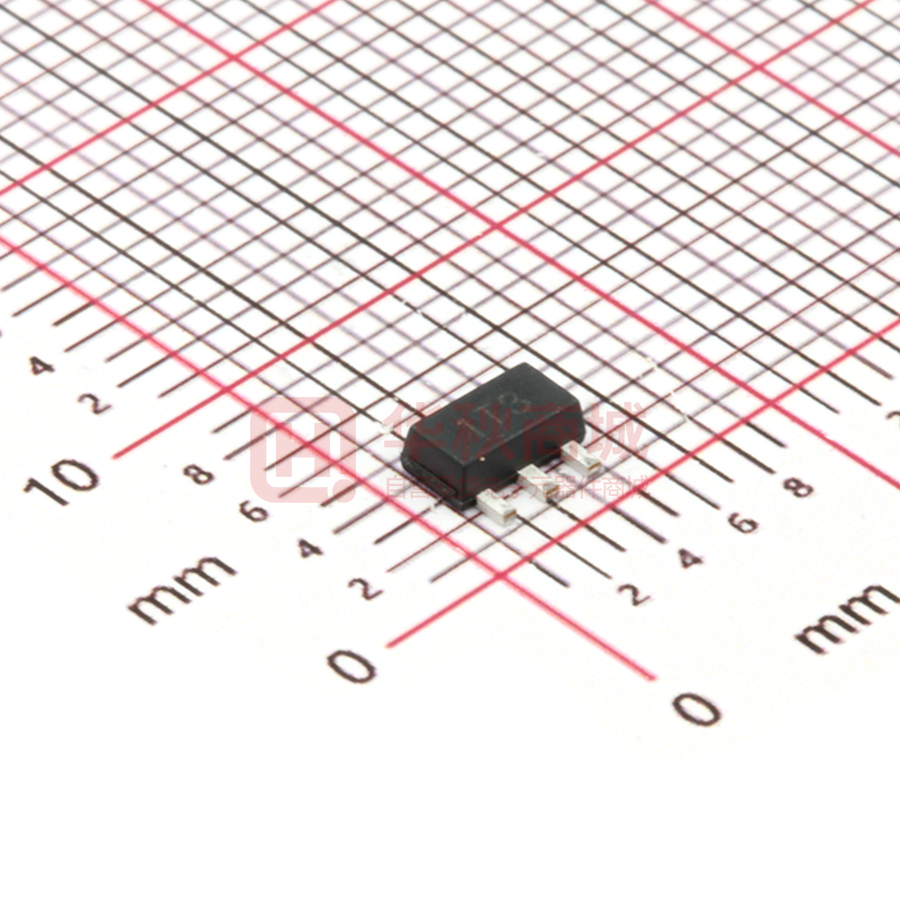

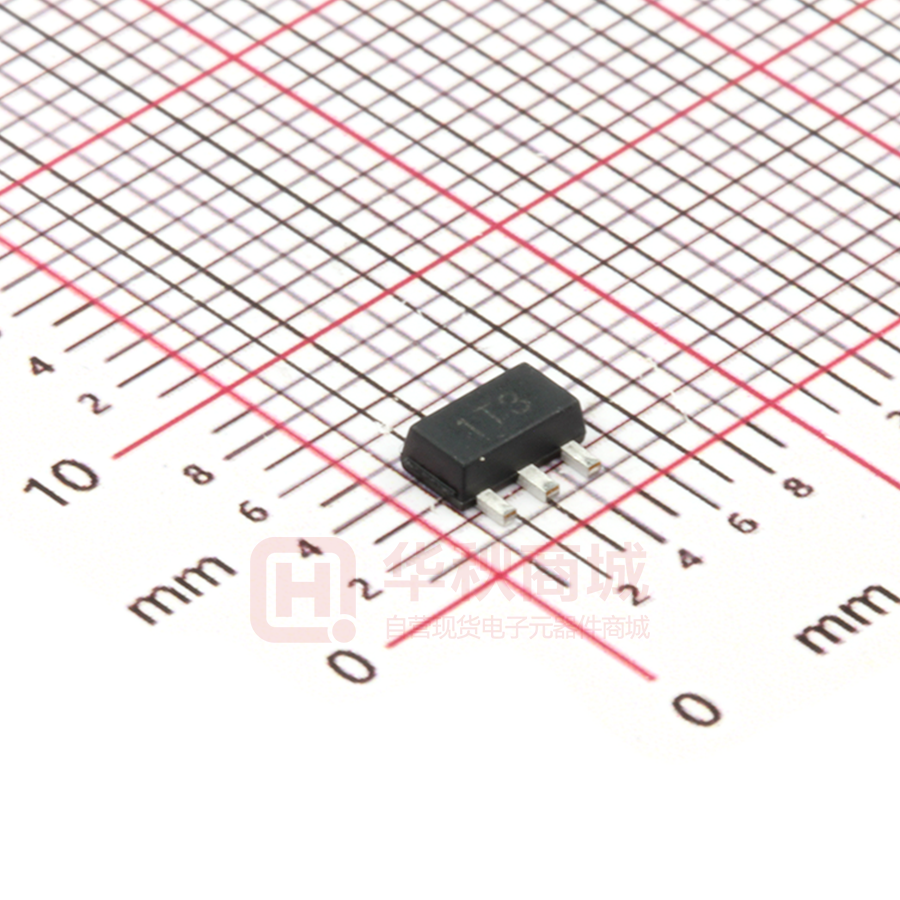

ZXTR2005Z 100V INPUT, 5V 30mA REGULATOR TRANSISTOR Description Features The ZXTR2005Z monolithically integrates a transistor, Zener diode and resistor to function as a high voltage linear regulator. The device regulates with a 5V nominal output at 15mA. It is designed for use in high voltage applications where standard linear regulators cannot be used. This function is fully integrated into a SOT89 package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution.    Series Linear Regulator Using Emitter-Follower Stage Input Voltage = 10 to 100V (For Regulated Output Voltage) Output Voltage = 5V ± 10%     150kΩ Resistor to Limit Quiescent Current Fully Integrated Into a SOT89 Package Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 for High Reliability Applications Mechanical Data Supply Voltage Regulation in:       Startup Switch in DC-DC Converters Networking Telecommunications Power-over-Ethernet (PoE)    Case: SOT89 Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish - Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208 e3 Weight: 0.052 grams (Approximate) SOT89 Pin Name VIN GND VOUT 150kΩ Pin Function Input Supply Power Ground Voltage Output Top View Top View Pin-Out Internal Device Schematic Ordering Information (Note 4) Product ZXTR2005Z-7 ZXTR2005Z-13 Notes: Package SOT89 SOT89 Marking 1T3 1T3 Reel Size (inches) 7 13 Tape Width (mm) 12 12 Quantity per Reel 1,000 2,500 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
