ZXTR2105FF
60V INPUT, 5V 15mA REGULATOR TRANSISTOR IN SOT23F
Description
Features

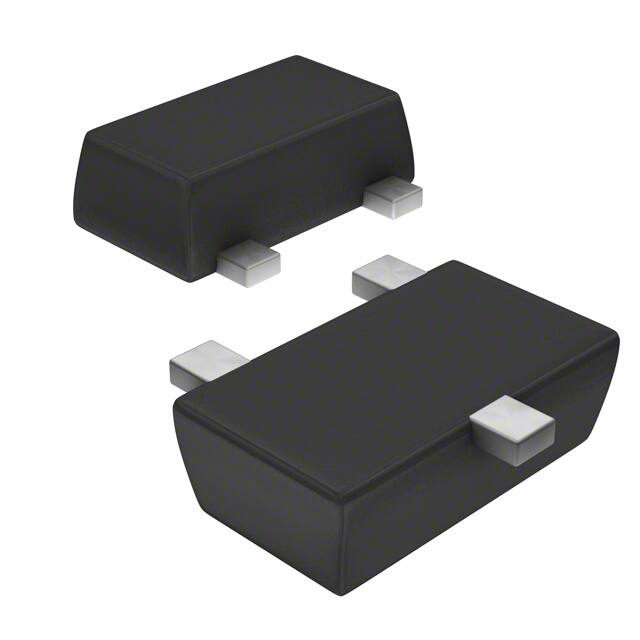

The ZXTR2105FF monolithically integrates a transistor, zener diode
and resistor to function as a linear regulator. The device regulates
with a 5V nominal output at 15mA. It is designed for use in highvoltage applications where standard linear regulators cannot be used.
This function is fully integrated into a SOT23F package, minimizing
PCB area and reducing the number of components when compared
with a multi-chip discrete solution.
Applications
Mechanical Data
Supply Voltage Regulation for:
12V to 5V Rails
24V to 5V Rails
Other Customized Input Rails
Series Linear Regulator Using Emitter-Follower Stage
Input Voltage = 7 to 60V (For Regulated Output Voltage)
Output Voltage = 5V ± 5%
Fully Integrated into a SOT23F Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Case: SOT23F
Case Material: Molded Plastic “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads; Solderable per MILSTD-202, Method 208
Weight: 0.008 grams (Approximate)
ZXTR2105FF
SOT23F
VIN
GND
Pin Name
Pin Function
VIN
GND
VOUT
Input Supply
Power Ground
Voltage Output
VOUT
Top View
Pin-Out
Top View
Internal Device
Schematic
Ordering Information (Note 4)
Product
ZXTR2105FF-7
Notes:
Compliance
AEC-Q101
Marking
2T1
Reel Size (inches)
7
Tape Width (mm)
8
Quantity per Reel
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3).compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
