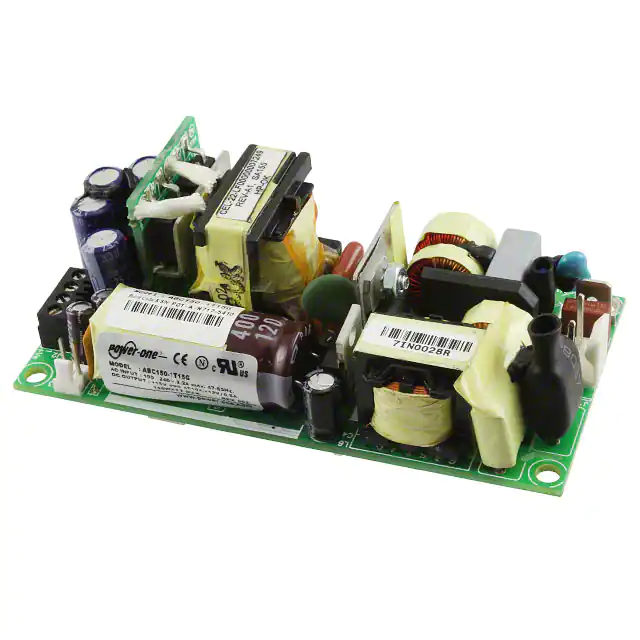

ABC150-1T15G

WLT150 The ABC150 Series of open-frame power supplies, with its wide universal input range 90 – 264 VAC (120 – 390 VDC) and high power density, is available at 150 W of output power and a variety of single output voltages. The high efficiency and high power density of the ABC family ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally-friendly end products. These power supplies are ideal for telecom, datacom, industrial equipment and other applications. • 4 x 2 x 1.3 Inch Form Factor • 150 W with Forced-Air Cooling • 12 V @ 0.5 A Fan Output • High Efficiency > 86% • Low Conducted and Radiated Noise • IEC / EN / UL 62368-1 Compliant • IEC Protection Class Options: − Class I: Earthing Tab J4 (no suffix) − Class II: No Earthing Tab (-2 suffix) • Metal Cover Kit Available (optional accessory) • RoHS Compliant • Renewable Energy • Test and Measurement • Robotics • Wireless Communication ABC150 Series 2 MODEL 1 CONNECTOR ABC150-1005G ABC150-1T05G JST (Header) Screw Terminal ABC150-1015G JST (Header) ABC150-1T15G Screw Terminal ABC150-1024G JST (Header) ABC150-1T24G Screw Terminal ABC150-1048G JST (Header) ABC150-1T48G Screw Terminal 2 3 5 VDC 16.0 A 2 MIN LOAD 300 LFM POWER 16.0 A Screw Terminal ABC150-1T12G 1 CONVECTION JST (Header) ABC150-1012G COVER-150-XBC 3 MAX LOAD OUTPUT VOLTAGE 80 W 0.0 A 20.0 A 100 W 12 VDC 8.33 A 12.5 A 0.0 A 150 W 15 VDC 6.67 A 10.0 A 0.0 A 150 W 24 VDC 4.17 A 6.25 A 0.0 A 150 W 48 VDC 2.08 A 3.13 A 0.0 A 150 W Metal Cover Kit (accessory) Class I products have an Earthing tab. For Class II version (without Earthing tab) add suffix -2 (e.g.: ABC150-1012G-2). Combined output power from V1 and VFAN should not exceed the total output power rating. When used in Cover Kit, de-rate output power to 70 % under all operating conditions. Specifications are for nominal input voltage, 25°C unless otherwise stated. PARAMETER DESCRIPTION / CONDITION SPECIFICATION Input Voltage Universal 90 – 264 VAC / 120 – 390 VDC Input Frequency Input Current 47 – 63 Hz 120 VAC: 230 VAC: No Load Power Inrush Current Leakage Current 1.2 W 120 VAC: 230 VAC: 120 VAC: 230 VAC: No Load Power Switching Frequency 1.70 A max. 0.85 A max. 35 A max. 65 A max. < 150 µA < 300 µA 1.2 W PFC converter (variable) Resonant converter (variable) 35 – 250 kHz, 90 kHz typical 35 – 250 kHz, 90 kHz typical tech.support@psbel.com ABC150 Series 3 PARAMETER DESCRIPTION / CONDITION SPECIFICATION Output Voltage Refer to Model Selection table 5 V to 48 V Output Power 4 Peak Power: 170 W for 2 s 150 W Fan Output 5 @5A 120 VAC: 230 VAC: 120 VAC: 230 VAC: 120 VAC: 230 VAC: 12 V 84% typical 86% typical 6 ms 10 ms 0.99 0.95 ± 0.5% Efficiency Hold Up Time Power Factor Line Regulation Load Regulation Transient Response Ripple 6 50 to 100% load change, 50 Hz, 50% duty cycle, 0.1A / µs All outputs Rise Time ± 2.0% < 10%, recovery time < 5 ms 1.0 % max < 100 ms Set Point Accuracy Main output ± 1% Output Voltage Adjustment V1 ±3% Over Current Protection 110% typical above rating Over Voltage Protection V1 Short Circuit Protection Short term, Automatic recovery Cooling 4 5 6 110 to 150% Convection 80 W (5 V model), 100 W (other models) 300 LFM 100 W (5 V model), 150 W (other models) Derate output power linearly to 80% from 90 VAC to 80 VAC input. Fan output voltage tolerance is +/-20 %. Peak current for fan output is 1 A. Ripple is 2 % up to 20 % load and < 1 % above 20 % load. Ripple is peak to peak with 20 MHz bandwidth and 10 µF (Electrolytic capacitor) in parallel with a 0.1 µF capacitor at rated line voltage and load ranges. Conducted Emissions EN 55032-B, CISPR22-B, FCC PART15-B Pass Radiated Emissions EN 55032 B Pass Input Current Harmonics EN 61000-3-2 Class D Voltage Fluctuation and Flicker EN 61000-3-3 Pass ESD Immunity EN 61000-4-2 Level 3, Criterion A Radiated Field Immunity EN 61000-4-3 Level 3, Criterion A Electrical Fast Transient Immunity EN 61000-4-4 Level 3, Criterion A Surge Immunity EN 61000-4-5 Level 3, Criterion A Conducted Immunity EN 61000-4-6 Level 3, Criterion A Magnetic Field Immunity EN 61000-4-8 Level 3, Criterion A Voltage Dips, Interruptions EN 61000-4-11 Criterion A & B Asia-Pacific +86 755 298 85888 Europe, Middle East +353 61 49 8941 North America +1 866 513 2839 © 2022 Bel Power Solutions & Protection BCD.00283_AG ABC150 Series 4 PARAMETER DESCRIPTION / CONDITION SPECIFICATION Isolation Voltage Input to Output: Min. 4000 VDC Safety Standards EN / IEC / UL 62368-1 (Ed.3) Agency Approvals Nemko, UL, C-UL, IEC CE mark Complies with LVD Directive PARAMETER DESCRIPTION / CONDITION SPECIFICATION Operating Temperature 7 -20 to 0°C start-up is guaranteed -20 to 70°C Storage Temperature Humidity Altitude Reliability 7 -40 to 70° C Non Condensing Operating: Non-Operating: MTBF according to Telcordia -SR332-Issue 3 95% 10,000 ft. 40,000 ft. 2.4 million hours Refer to derating curves Convection load: 80 W up to 50 °C De-rate above 50 °C @ 3.125% per °C Forced air cooled load: 100W up to 50°C De-rate above 50 °C @ 2.5% per °C Convection load: 100 W up to 50 °C De-rate above 50 °C @ 2.5% per °C Forced air cooled load : 150 W up to 50°C De-rate above 50 °C @ 1.67% per °C Figure 1. Derating Curves tech.support@psbel.com ABC150 Series CONNECTOR PIN 5 DESCRIPTION / CONDITION Pin 1 AC Line Pin 2 AC Neutral AC Input Connector J1 DC Output Connector J2 Pin 1, 2 Pin 3, 4 V1 RTN Fan (Aux) Connector J3 Pin 1 Pin 2 VFAN (12 V / 0.5 A) RTN Earth 8 (Spade Connector) J4 8 MANUFACTURER / PN Molex: 26-60-4030 or equivalent Mating: 09-50-3031; Pins: 08-50-0106 Option 1: Tyco: 1776112-4 or equivalent Mating: 13 AWG wire Option 2: JST: B4P-VH-B (LF) (SN) or B4P-VH (LF) (SN) or equivalent Mating: VHR-4M; Pins: SVH-41T-P1.1 Tyco: 640456-2 or equivalent Mating: 640440-2 Molex: 19705-4301 or equivalent Mating: 190030001 Class I product only PARAMETER DESCRIPTION / CONDITION Weight 150 g (0.33 lbs.) Dimensions 101.6 x 50.8 x 33.6 mm (4.0 x 2.0 x 1.3 in) Figure 2. Mechanical Drawing NOTES: In case the PCB is mounted in a metal enclosure, using metal hardware ensure the following: 1 Stand off, used to mount PCB has OD of 5.4 mm max. 2 Screws, used to fix PCB on stand off, have head dia of 6.0 mm max. 3 Washer, if used, to have dia of 6.5 mm max. Asia-Pacific +86 755 298 85888 Europe, Middle East +353 61 49 8941 North America +1 866 513 2839 © 2022 Bel Power Solutions & Protection BCD.00283_AG ABC150 Series 6 Figure 3. Mechanical Drawing with Cover Kit NUCLEAR AND MEDICAL APPLICATIONS - Products are not designed or intended for use as critical components in life support systems, equipment used in hazardous environments, or nuclear control systems. TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the date manufactured. Specifications are subject to change without notice. tech.support@psbel.com
