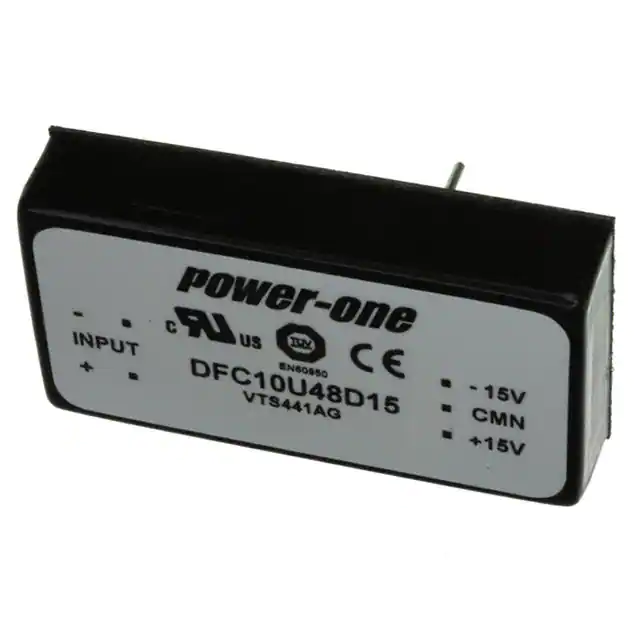

DFC10U48D15

® DFC10 SERIES DUAL OUTPUT FEATURES • High Power Density, up to 11 Watts per Cubic Inch • Efficiencies to 79% • Fully Isolated, Fully Filtered Design • Greater than 700V Isolation • Overcurrent Protection • Five-Side Shielded Copper Case • Ultra Wide Range Input (4:1) Selection Chart VDC mA 9 9 9 18 18 18 36 36 36 72 72 72 ±5 ±12 ±15 ±5 ±12 ±15 ±850 ±400 ±320 ±800 ±415 ±330 3 0.000 0.100 (2.54) 0.200 (5.08) 0.500 (12.70) 0.61 (15.5) 1 4 2 1.02 (25.91) 5 0.61 (15.5) DFC10U24D5 DFC10U24D12 DFC10U24D15 DFC10U48D5 DFC10U48D12 DFC10U48D15 0.300 (7.62) Power W 9 10 10 8 10 10 0.42 (10.67) Max SIDE VIEW 0.040 (1.02) DIA TYP 0.000 Min 0.000 Model BOTTOM VIEW 2.02 (51.31) Output 0.800 (20.32) Input Range VDC 0.3 (7.62) DESCRIPTION The dual output DFC10 Series provides power solutions to meet commercial and industrial requirements. With power densities above 11 watts per cubic inch (0.67 watts per cm3), overcurrent protection, and five sided shielded case, the DFC10 meets rigorous needs in an industry standard case size. The 120KHz operating frequency of the DFC10 Series allows an increased power density while including adequate heat sinking and input/output filtering. This eliminates the need for external components in most applications. Full overload protection is provided by pulse-by-pulse current limiting on models with 48V input. General Specifications (1) All Models Units Mechanical tolerances unless otherwise noted: X.XX dimensions: ±0.03 inches X.XXX dimensions: ±0.005 inches ON/OFF Function OFF Logic Level or Tie Pin to -Input Open Circuit Voltage Input Resistance Converter Idle Current ON/OFF Pin Low Isolation (2) Isolation Voltage Input to Output 10 µA Leakage Input to Output Capacitance Enviromental Case Operating Range, Tc Case Functional Range (3) Storage Range General MTBF (Calculated) Thermal Impedance (4) Unit Weight Mounting Options MAX
