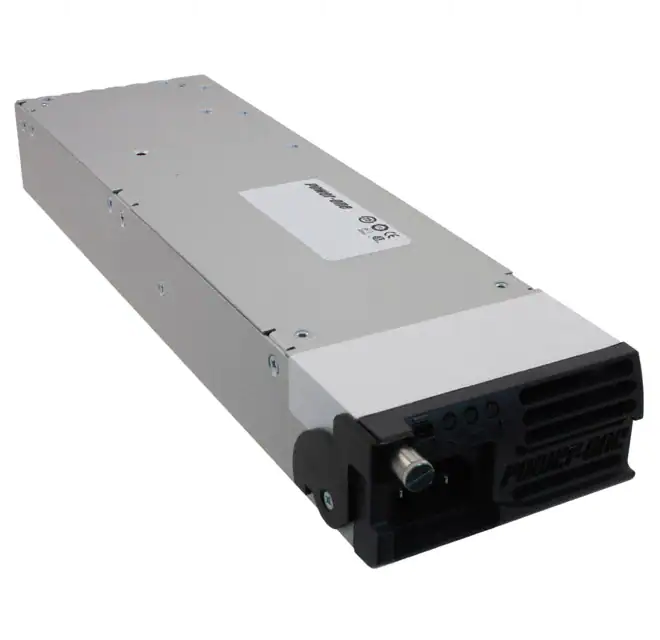

FNP1000-48G

The FNP600/850/1000 power factor corrected (PFC) front ends provide (depending on model) either a 12 VDC or a 48 VDC output for telecom, datacom, and other distributed power applications. Their small 1U by 2U size allows for configurations of either height in hotswap redundant systems while their internal fan and cooling design permits wide use with reliable operation. Status is provided with front panel LEDs, logic signals, and via the I2C management interface bus. In addition, the I2C bus can enable the power supply, control fan speed, and on the 12 VDC models it allows for adjusting the output voltage from 7 to 12 VDC. This powerful feature allows the same power supply to be used in various applications where bus voltages driving isolated dc-dc converters and POL regulators may be different.            RoHS lead free solder and lead solder exempted products are available High density front-ends 10.5 to 16.1 W/in3 Universal input voltage range (90-264 VAC) with PFC 1U or 2U height configurations Droop current share with ORing FETs I2C interface status and control Standby voltage of 12 VDC @ 0.5 A Overtemperature, overload, and overvoltage protection Status LEDs: AC OK, DC OK, Overtemperature FNP850-12 model has airflow direction from front-to-rear or from rear-to-front (-12R model) ON/OFF Enable switch - shuts OFF Vo1; Vaux and fan are operational. Also, the FNP850-12R is uniquely designed with airflow from the rear of the power supply to the front. This airflow direction supports those critical applications where space limitations and/or higher ambient temperatures near the rear of the rack system, prohibit the discharge of higher temperature airflow from regular front-to-rear cooled power supplies. The FNP600/850/1000's meet international safety requirements and are CE marked to the Low Voltage Directive (LVD).    Telecom Datacom Distributed Power Systems North America +1-866.513.2839 Asia-Pacific +86.755.29885888 Europe, Middle East +353 61 225 977 tech.support@psbel.com © 2015 Bel Power Solutions, Inc. BCD20034-G_AE FNP600/850/1000 MODEL FNP600-12 FNP850-12 FNP850-12R 4 FNP600-48 FNP1000-48 NOMINAL OUTPUT VOLTAGE (VDC) 1 12 12 (Standby) 12 12 (Standby) 12 12 (Standby) 48 12 (Standby) 48 12 (Standby) ADJUSTMENT RANGE (VDC) 7 to 12 N/A 7 to 12 N/A 7 to 12 N/A 44 to 50.5 N/A 44 to 50.5 N/A MAXIMUM OUTPUT CURRENT (Amps) 51 0.5 73 0.5 73 0.5 12.6 0.5 21 0.5 LINE REGULATION (%) LOAD REGULATION (%) 2 RIPPLE & NOISE pk-pk % 3 0.17 8 0.17 8 0.17 8 0.17 8 0.17 8 6 8 6 8 6 8 6 8 6 8 1 1 1 1 1 1 1 1 1 1 COMPATIBLE SHELF FNR-5-12 FNR-5-12 FNR-5-12 FNR-5-48 FNR-5-48 1 Models with 5V and 3.3V standby voltages are also available. (Contact factory.) Primary 12V and 48V outputs have built-in droop regulation. 3 Maximum peak-to-peak noise expressed as a percentage of output voltage; 20 MHz bandwidth. 4 FNP850-12R model has airflow from rear to front. 2 1 Options Suffixes to Add to Part Number RoHS lead solder exemption No RoHS suffix character required. RoHS compliant for all 6 substances Add "G" as the last character of the part number. PARAMETER CONDITIONS/DESCRIPTION AC Input Voltage Single-phase continuous input range. Input Frequency AC input. Hold-up Time After last AC line peak at full power. Input Current At full-rated load. Inrush Surge Current Internally limited. Vin = 230 VAC, T = 25 ºC Power Factor Per EN61000-3-2 MIN. At 115 VAC MAX. UNITS 90 264 VAC 47 63 Hz 20 NOM. 1 ms At 90 VAC 14 A rms 34 A pk 0.97 W/VA FNP1000-48 model has a hold-up time of 16 ms PARAMETER CONDITIONS/DESCRIPTION FNP600-48 FNP1000-48 FNP600-12 FNP850-12 Efficiency: Full rated load at 230 VAC input. Minimum Load Minimum loading required to maintain regulation. FNP1000 FNP850 FNP600 Output Power Overshoot Transient Response MIN. 88 88 84 84 0 Output voltage overshoot at turn-on. Maximum recovery time to within 1% of initial set point due to a 50% load change, 1A/µs. 12V or 48V output: Standby output: 12V or 48V output: Standby output: Time required for initial output voltage stabilization after application of AC input.. See Model Selection table. Maximum deviation: Turn-On Delay Output Regulation NOM. 89.5 89.5 87 87 MAX. UNITS % A 1006 856 600 3 % 400 2 µs ms 2 4 % 1.5 Sec W 866.513.2839 tech.support@psbel.com © 2015 Bel Power Solutions, Inc. BCD20034-G_AE FNP600/850/1000 PARAMETER Overvoltage Protection Overcurrent Protection (Power supply recovers when short is removed.) Short-Circuit Protection Overtemperature/ Fan Failure Warning 1 2 CONDITIONS/DESCRIPTION MIN. NOM. MAX. UNITS Latch-style overvoltage protection. 14.4 15 15.6 V Output adjusted to 12V: Latch-style overvoltage protection. 8.75 9.04 9.33 V Output adjusted to 7V: 8.44 8.75 9.1 Latch-style overvoltage protection. 571 60 V Output adjusted to 48V: Current limit.12V output: 54 56 61 FNP600-12 A 12V Standby output: 0.55 0.75 1.0 Current limit.12V output: 77 80 88 FNP850-12 A 12V Standby output: 0.55 0.75 1.0 Current limit.48V output: 13 14 16 FNP600-48 A 12V Standby output: 0.75 1.75 Current limit.48V output: 22 23 25 FNP1000-48 A 12V Standby output: 0.75 1.75 Power supply recovers when short is removed. FNP 12V or 48V Vo1 supply output will shut down in the event of an overtemperature condition or blocked fan rotor. Supply's fan and Vaux are active. Power supply will recover when OT condition is removed. Amber OT LED will turn ON to indicate fault condition. FNP600-12 & FNP850-12 FNP600-12: FNP850-12: FNP600-48 & FNP1000-48 OT/Fan Fail is an open-collector signal with 20-mA pull-down. High signal indicates a normal operating condition. Output will go low at least 100 ms before OT condition shuts down the power supply. Internally pulled up to 5V with a 5.1 kΩ resistor. Note. 2 FNP1000-48 overvoltage protection range is 56 V minimum and 60 V maximum. A pull-up to 3.3V can be achieved by terminating the logic signal with a 10 kΩ resistor to logic ground. PARAMETER CONDITIONS/DESCRIPTION DC OK TTL open-collector signal with active 20-mA pull-down. Represents percent of output voltage where signal is OK. Below this voltage, a signal high condition indicates an output which is out of tolerance. Green DC OK LED on front panel indicates normal operation1. Internally pulled up to 5V with a 5.1 kΩ resistor. Note. 2 90 Input Power Fail Warning TTL open-collector signal with active 20-mA pull-down. High indicates an input power fail. Power Fail Warning will turn OFF green AC OK LED. Represents the time after warning signal before Vout drops to 95% due to loss of input power.1 Internally pulled up to 5V with a 5.1 kΩ resistor. Note. 2 5 Power Supply Present Signal Current Share Remote Sense Output Enable 1 2 MIN Resistance of connection to logic ground which allows user to determine if power supply is present. 1 Main output only. Difference in current between two supplies at >10% load value. NOM MAX UNITS 110 % ms Ω 10 FNP600-12: 5 FNP850-12: 7 FNP600-48: 2 FNP1000-48: 2 Total voltage compensation for cable losses with respect to the main output. A 0.5 V Open circuit or logic high from ENA pin to Vo1 RTN shuts OFF Vo1; Vaux and fan are operational. Logic low (2 mA sink capability) or jumper will turn ON Vo1 within 500 ms. Open circuit voltage on enable pin is 3.3 VDC. Externally applied voltage to the enable pin should NOT exceed 7 VDC. Signal is referred to as Logic Return (LRTN). Also available on I2C data line. A pull-up to 3.3V can be achieved by terminating the logic signal with a 10 kΩ resistor to logic ground. 866.513.2839 tech.support@psbel.com © 2015 Bel Power Solutions, Inc. BCD20034-G_AE FNP600/850/1000 PARAMETER Static Status (Logic 1 or 0) Real-Time Monitoring Control Signals CONDITIONS/DESCRIPTION Includes static information such as: part number and revision level, output rating, serial number, date code, and manufacturing location. Power Supply OK. AC Input OK. DC Output OK. Power Supply Seated. Overtemperature. Overcurrent. Fan OK. Output voltage (main output) 0.1V LSD. Output current (main output) 0.1A LSD. Time in service. Enable for main output. Output voltage to: (0.01V resolution on 12V supplies; 0.05V resolution on all 48V supplies). Fan speed level. PARAMETER MIN Harmonics CONDITIONS/DESCRIPTION UL60950-1 (UL), CSA C22.2 60950-1 (cUL), EN60950-1 (TUV), IEC60950-1 and CE (LVD) FCC CFR title 47 Part 15 Sub-Part B, Conducted: EN55022/CISPR 22. Radiated: Per IEC61000-3-2. Voltage Fluctuation and Flicker Per IEC61000-3-3. Pass ESD Susceptibility Per EN61000-4-2, Level 4. Criterion B Radiated Susceptibility EFT/Burst Agency Approvals Electromagnetic Interference Input Transient Protection RF Conducted Disturbances Voltage Interruptions Voltage Sag Immunity Leakage Current NOM MAX B A A UNITS Class Class 8 . kV Per EN 61000-4-3, Level 3. Criterion A 10 . V/M Per EN 61000-4-4, Level 4. Criterion B Per EN 61000-4-5, Class 3. Criterion B ±4 1 2 10 10 100 5 . kV . kV . V ms ms Sec Line-to-Line: Line-to-Ground: Per EN 61000-4-6, Level 3. Criterion A Per EN 61000-4-11, performance criterion B 30%. Per EN 61000-4-11, performance criterion C 60%. Per EN 61000-4-11, performance criterion C 95%. Per SEMI F47-0999 > 100 VAC. No output voltage interruption. Per EN60950-1. At 240 VAC: . . 3.5 mA 866.513.2839 tech.support@psbel.com © 2015 Bel Power Solutions, Inc. BCD20034-G_AE FNP600/850/1000 PARAMETER CONDITIONS/DESCRIPTION Operating. Non-Operating. Altitude Operating Temperature FNP600-12: FNP850-12: FNP600-48: FNP1000-48: FNP850-12R: MIN NOM MAX 10K 40K UNITS ASL ft ASL ft Internal DC fan for cooling. At 100% load: At 50% load: 0 0 50 70 ºC Internal DC fan for cooling. At 100% load: At 94% load: At 50% load: 0 0 0 -40 40 50 70 85 ºC Storage Temperature ºC Temperature Coefficient 0 ºC to 70 ºC (after 15-minute warm-up). 0.02 %/ºC Relative Humidity Non-condensing Operating: half-sine, 10 ms, 3-axis. Non-Operating: half-sine, 10 ms, 3-axis. Operating: swept sine 5-2000-5 Hz, 5-32 Hz, 0.02îDA, 32-2000 Hz. Non-operating: random 10-2000 Hz. 95 +20 +40 1 %RH 6.15 Grms MAX UNITS hrs hrs yrs Shock Vibration PARAMETER MTBF CONDITIONS/DESCRIPTION (Calculated) MILHDBK 217F Ground Benign. Demonstrated. Useful Life. MIN 100 000 250 000 10 NOM Gpk Gpk 866.513.2839 tech.support@psbel.com © 2015 Bel Power Solutions, Inc. BCD20034-G_AE FNP600/850/1000 866.513.2839 tech.support@psbel.com © 2015 Bel Power Solutions, Inc. BCD20034-G_AE FNP600/850/1000 Power Supply: Mating Connections: Input IEC Connector: Input - IEC 320 input (Male) standard line cord connection Output - P/N FCI 51732-020LF Input - IEC 320 output (Socket) Standard line cord (15A) Output - P/N: FCI 51742-10602000AALF (Backplane) P/N: FCI 51762-10602000AALF (Right Angle) Input Location Chassis (Safety) Ground Ground Line 1 (Line) L Line 2 (Neutral) N 866.513.2839 tech.support@psbel.com © 2015 Bel Power Solutions, Inc. BCD20034-G_AE FNP600/850/1000 SIGNAL Over Temperature / Fan Fail AC Power Fail Warning Power Supply Present Output Voltage Fault Internal Ground PIN LOCATION U1 U2 U3 U4 U5 GROUND REFERENCE Logic Ground (LRTN) Logic Ground (LRTN) Logic Ground (LRTN) Logic Ground (LRTN) Internal Ground (SRTN) 2 ADDR0, I2C Address Bus ADDR1, I2C Address Bus ADDR2, I2C Address Bus ADDR3, I2C Address Bus ADDR4, I2C Address Bus T1 T2 T3 T4 T5 Internal Ground (SRTN) Internal Ground (SRTN) Internal Ground (SRTN) Internal Ground (SRTN) Internal Ground (SRTN) DATA, I2C Data Line CLOCK, I2C Clock Line Auxiliary Power +12V Auxiliary Power Ground Logic Ground S1 S2 S3 S4 S5 Logic Ground (LRTN) Logic Ground (LRTN) Aux Ground Aux Ground Logic Ground (LRTN) Output Enable 1 Vsense+ Vsense- R1 R2 R3 Logic Ground (LRTN) VsenseVsense- Output Margin R4 Internal Ground (SRTN) Active Current share R5 Internal Ground (SRTN) Vout+ Vout1 2 P1, P2, P3 P4, P5, P6 NOTE Open collector 20mA,int.pull-up 5.11kΩ to 5V DC Open collector 20mA,int.pull-up 5.11kΩ to 5V DC 10Ω resistance int. connected to LRTN Open collector 20mA,int.pull-up 5.11kΩ to 5V DC Open circuit or “High” to LRTN shuts OFF Vo1 OPTIONAL; External resistance needed to adjust Vo1 lower than it is set originally OPTIONAL VsenseVsense- Short pin length SRTN (Internal Ground) is internally connected to Vout- Each rack (power shelf) is 1U high with backplane and designed for up to five front-end models in parallel or in n+1 operation. Each power shelf has:  Output terminals with two M4-screws on each power tab.  Two fast-on contacts for system earthing.  Address coding over five pole DIP switch on each unit, 37-pin D-Sub connector with I2C-lines, monitoring signals and support functions.  Provides a start-up synchronization circuit and EMV filters. Overall Mechanical Dimensions (W x H x D): 17.68” (449 mm) x 1.72” (43.6 mm) x 13.05” (331.5 mm) 866.513.2839 tech.support@psbel.com © 2015 Bel Power Solutions, Inc. BCD20034-G_AE FNP600/850/1000 FNR-5-12G and FNR-5-48G Power Shelf Front View Mechanical Data (FNR-5-12G and FNR-5-48G Power Shelves) A LOCATION B C D E F G H I DESCRIPTION A 5-Bit DIP switch for I2C addressing of PSU 1 B 5-Bit DIP switch for I2C addressing of PSU 2 C 37-pin SUB-D connector, controlling and auxiliary power (output 2) D 5-Bit DIP switch for I2C addressing of PSU 3 E Output 1 minus F Output 1 plus G 5-Bit DIP switch for I2C addressing of PSU 4 H Earth connection I 5-Bit DIP switch for I2C addressing of PSU 5 866.513.2839 tech.support@psbel.com © 2015 Bel Power Solutions, Inc. BCD20034-G_AE FNP600/850/1000 OUTPUT CONNECTOR DESCRIPTION Overtemperature / Fan Fail PSU1 Power Supply Present PSU 1 Power Supply Present PSU 2 Open Overtemperature / Fan Fail PSU 3 AC Fail / Power down warning PSU 3 Power Supply Present PSU 3 DC Fail / Output voltage fault PSU 3 Overtemperature / Fan Fail PSU 2 NC PIN LOCATION TYPE 1 OC-output, protected by 16 V Zener diode and a 10 Ω resistor in series, referenced to logic GND 2 Resistor 10 Ω connected to logic GND 3 Resistor 10 Ω connected to logic GND LOW LEVEL HIGH LEVEL
