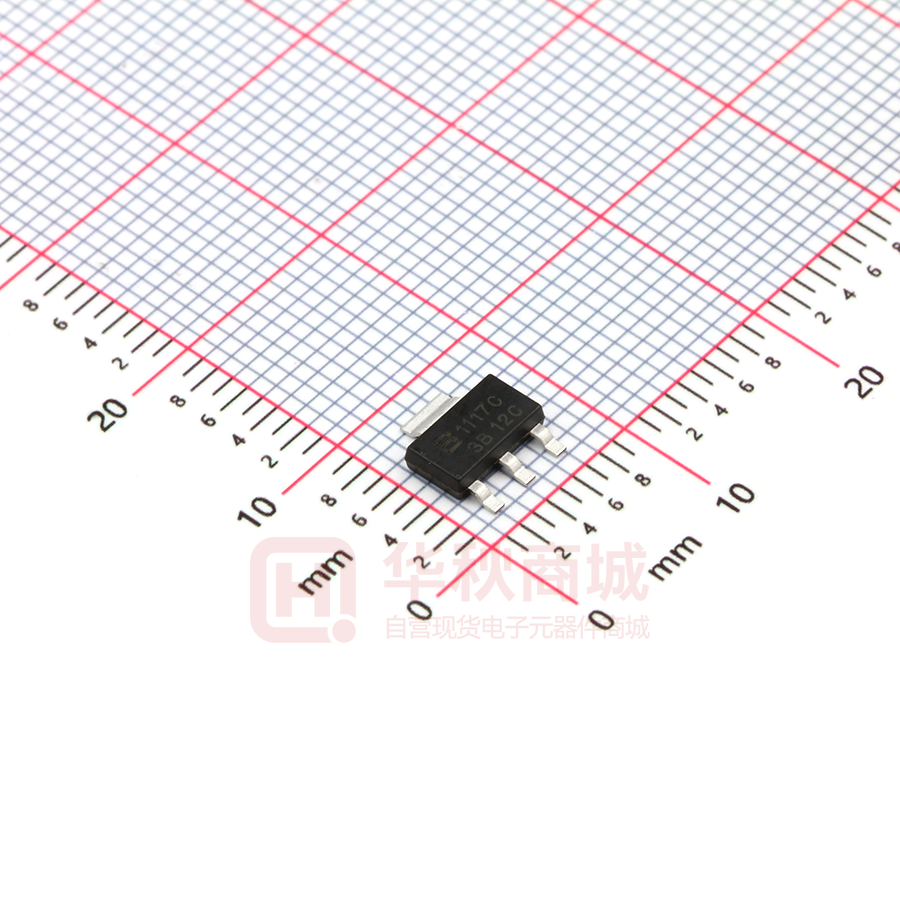

BL1117C-12CX

BL1117C 1A Bipolar Linear Regulator DESCRIPTION FEATURES BL1117C is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. BL1117C features a very low standby current 2mA compared to 5mA of competitor. • Other than a fixed version, Vout = 1.2V, 1.8V, 2.5V, 3.3V, 5V, and 12V, BL1117C has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. BL1117C offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. Other output voltage accuracy can be customized on demand, such as ±1% BL1117C is available in SOT-223, TO-252 power package. TYPICAL APPLICATION 10uF Vout Gnd 10uF Application circuit of BL1117C fixed version NOTE: Input capacitor (Cin=10uF) and Output capacitor (Cout=10uF) are recommended in all application circuit. Tantalum capacitor is recommended. www.belling.com.cn • • • • • Power Management for Computer Mother Board, Graphic Card BLD Monitor and BLD TV DVD Decode Board ADSL Modem Post Regulators for Switching Supplies BL1117C BL1117C Vout Vin APPLICATIONS TYPICAL ELECTRICAL CHARACTERISTIC LC1117 BL1117C C BL1117 Vin • • • • • • Other than a fixed version and an adjustable version, output value can be customized on demand. Maximum output current is 1A Range of operation input voltage: Max 12V Standby current: 2mA (typ.) Line regulation: 0.1%/V (typ.) Load regulation: 10mV (typ.) Environment Temperature: -40°C~85°C 1 BL1117C ORDERING INFORMATION PIN CONFIGURATION BL1117C-XX X X Package Type： X：SOT-223 Y：TO-252 M：SOT-89-3 Pin Description： ： Fixed Version Pin No. 1 2 3 Temp. Range & Rohs Std.： A：85C & Pb-free Rhos Std,Output voltage accuracy within ±1％ C： 85C & Pb-free Rohs Std,Output voltage accuracy within ±2％ Symbol GND Vout Vin Definition Ground Output Input Adjustable Version Pin No. 1 2 3 Output Voltage： 12……1.2V 18……1.8V 25……2.5V 33……3.3V 50……5.0V Default：Adjustable Version Symbol Definition Adj. Adjustable Vout Output Vin Input A： ：Means Manufacture LOT No. B:Means Output Voltage Value C:Means Temp. Range&Rohs Std ABSOLUTE MAXIMUM RATING Parameter Value 15V
150°C -40°C – 85°C 20°C / W 10°C / W -40°C - 150°C 260°C, 10S Max Input Voltage Max Operating Junction Temperature(Tj) Ambient Temperature(Ta) Package Thermal Resistance SOT-223 TO-252 Storage Temperature(Ts) Lead Temperature & Time RECOMMENDED WORK CONDITIONS Parameter Value Max. 12V
-20°C –125°C Input Voltage Range Operating Junction Temperature(Tj)
Exceptional for BL1117C-12V, the maximum input voltage for BL1117C-12V is 20V. www.belling.com.cn 2 Note: Exceed these limits to damage to the device. Exposure to absolute maximum rating conditions may affect device reliability. BL1117C ELECTRICAL CHARACTERISTICS Tj=25°C Symbol Vref Parameter Reference Voltage Conditions BL1117C-ADJ 10mA≤Iout≤1A , Vin=3.25V BL1117C-1.2V 0≤Iout≤1A , Vin=3.2V BL1117C-1.8V 0≤Iout≤1A , Vin=3.8V BL1117C-2.5V Vout Output Voltage 0≤Iout≤1A , Vin=4.5V BL1117C-3.3V 0≤Iout≤1A , Vin=5.3V BL1117C-5.0V 0≤Iout≤1A , Vin=7.0V BL1117C-12.0V 0≤Iout≤1A , Vin=14V BL1117C-1.2V Iout=10mA, 2.7V≤Vin≤10V BL1117C-ADJ Iout=10mA, 2.75V≤Vin≤12V BL1117C-1.8V Iout=10mA, 3.3V≤Vin≤12V ΔVout Line Regulation BL1117C-2.5V Iout=10mA, 4.0V≤Vin≤12V BL1117C-3.3V Iout=10mA, 4.8V≤Vin≤12V BL1117C-5.0V Iout=10mA, 6.5V≤Vin≤12V BL1117C-12.0V Iout=10mA, 13.5V≤Vin≤20V BL1117C-1.2V Vin =2.7V, 10mA≤Iout≤1A BL1117C-ADJ Vin =2.75V, 10mA≤Iout≤1A BL1117C-1.8V Vin=3.3V, 10mA≤Iout≤1A ΔVout Load Regulation BL1117C-2.5V Vin=4.0V, 10mA≤Iout≤1A BL1117C-3.3V Vin=4.8V, 10mA≤Iout≤1A BL1117C-5.0V Vin=6.5V, 10mA≤Iout≤1A BL1117C-12.0V Vin=13.5V, 10mA≤Iout≤1A www.belling.com.cn 3 Min Typ Max Unit 1.225 1.25 1.275 V 1.176 1.2 1.224 V 1.764 1.8 1.836 V 2.45 2.5 2.55 V 3.234 3.3 3.366 V 4.9 5 5.1 V 11.76 12 12.24 V 0.1 0.2 %/V 0.1 0.2 %/V 0.1 0.2 %/V 0.1 0.2 %/V 0.1 0.2 %/V 0.1 0.2 %/V 0.1 0.2 %/V 10 30 mV 10 30 mV 10 30 mV 10 30 mV 10 30 mV 10 30 mV 10 30 mV BL1117C ELECTRICAL CHARACTERISTICS continued Tj=25°C Symbol Parameter Conditions Typ Max Unit Iout=100mA 1.23 1.3 V Iout=1A 1.3 1.5 V Vdrop Dropout Voltage Ilimit Current Limit Vin-Vout=2V, Tj=25°C Imin Minimum Load Current BL1117C-ADJ Iq IAdj Quiescent Current Adjust Pin Current Ichange Iadj change ΔV/ΔT Temperature coefficient θJC Thermal Resistance Min 1 A 2 10 BL1117C-1.2V, Vin =10V 2 5 mA BL1117C-1.8V, Vin =12V 2 5 mA BL1117C-2.5V,Vin =12V 2 5 mA BL1117C-3.3V, Vin =12V 2 5 mA BL1117C-5.0V, Vin =12V 2 5 mA BL1117C-12.0V, Vin =20V 2 5 mA 55 120 uA 0.2 10 uA BL1117C-ADJ Vin =5V, 10mA≤Iout≤1A BL1117C-ADJ Vin =5V, 10mA≤Iout≤1A ±100 SOT-223 20 TO-252 10 TO-220 4.5 Note1: All test are conducted under ambient temperature 25°C and within a short period of time 20ms Note2: Load current smaller than minimum load current of BL1117C-ADJ will lead to unstable or oscillation output. BLOCK DIAGRAM www.belling.com.cn mA 4 ppm °C/W BL1117C DETAILED DESCRIPTION BL1117C is a series of low dropout voltage, three terminal regulators. Its application circuit is very simple: the fixed version only needs two capacitors and the adjustable version only needs two resistors and two capacitors to work. It is composed of some modules including start-up circuit, bias circuit, bandgap, thermal shutdown, current limit, power transistors and its driver circuit and so on. The thermal shut down modules can assure chip and its application system working safety when the junction temperature is larger than 140°C. The bandgap module provides stable reference voltage, whose temperature coefficient is compensated by careful design considerations. The temperature coefficient is under 100 ppm/°C. And the accuracy of output voltage is guaranteed by trimming technique. TYPICAL APPLICATION BL1117C has an adjustable version and six fixed versions (1.2V, 1.8V, 2.5V, 3.3V, 5V and 12V) Fixed Output Voltage Version LC1117 BL1117C C BL1117 Vout Vin Vin 10uF Vout Gnd 10uF Application circuit of BL1117C fixed version 1) 2) Recommend using 10uF tan capacitor as bypass capacitor (C1) for all application circuit. Recommend using 10uF tan capacitor to assure circuit stability. Adjustable Output Voltage Version BL1117C-ADJ provides a 1.25V reference voltage. Any output voltage between 1.25V~12V can be achievable by choosing two external resistors (schematic is shown below), R1 and R2 BL1117C BL1117C Application Circuit of BL1117C-ADJ The output voltage of adjustable version follows the equation: Vout=1.25×(1+R2/R1)+IAdj×R2. We can ignore IAdj because IAdj (about 50uA) is much less than the current of R1 (about 2~10mA). www.belling.com.cn 5 BL1117C 1) To meet the minimum load current (>10mA) requirement, R1 is recommended to be 125ohm or lower. As BL1117CADJ can keep itself stable at load current about 2mA, R1 is not allowed to be higher than 625ohm. 2) Using a bypass capacitor (CADJ) between the ADJ pin and ground can improve ripple rejection. This bypass capacitor prevents ripple from being amplified as the output voltage is increased. The impedance of CADJ should be less than R1 to prevent ripple from being amplified. As R1 is normally in the range of 100Ω~500Ω, the value of CADJ should satisfy this equation: 1/(2π×fripple×CADJ)
