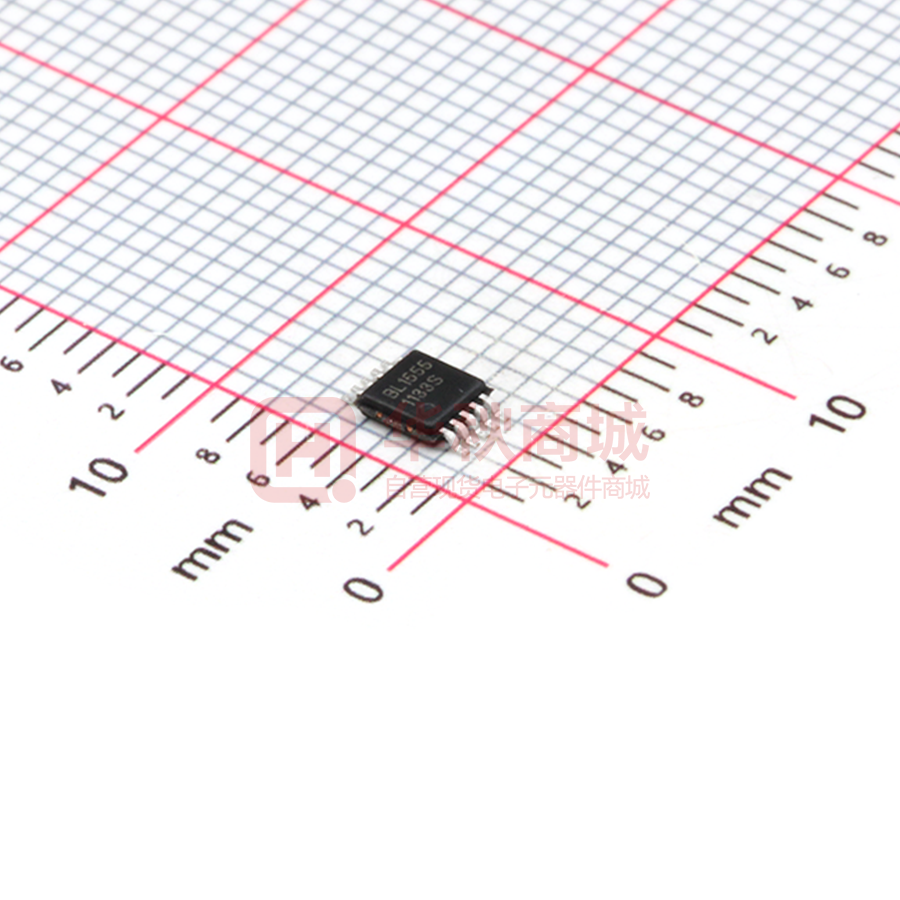

BL1555MM

BL1555 Ultra Low ON-Resistance, Low Voltage, Dual, SPDT Analog Switch Features Description ⚫ Wide Power Supply Range:1.65V to 5.5V The BL1555 is a Dual Wide-Bandwidth, fast single- ⚫ Low On-Resistance: pole double-throw (SPDT) CMOS switch featuring an RON(NC) = 0.3Ω(VCC=5V) On-Resistance of 0.3 ohm at VDD=5V and wide power RON(NO) = 0.3Ω(VCC=5V) supply range from 1.65V to 5.5V. It can be used as Low On-Resistance Flatness: an analog switch or as a low-delay bus switch. ⚫ Break-before-make function for both parts eliminates RFLAT(NC) = 0.08Ω(VCC=5V) signal disruption during switching from preventing RFLAT(NO) = 0.08Ω(VCC=5V) ⚫ -3dB Bandwidth: 33MHz ⚫ Rail-to-Rail Signal Range ⚫ High Off-Isolation: -66dB (f=100 kHz) ⚫ Crosstalk Rejection: -74dB ⚫ Low Total Harmonic Distortion: 0.035% ⚫ Available in MSOP10 package both switches being enabled simultaneously. Pin Configuration Applications ⚫ Wireless Handsets ⚫ Portable Electronic Devices ⚫ Relay Replacement ⚫ PDAs ⚫ Audio & Video Signal Routing ⚫ PCMCIA Cards ⚫ Computer Peripherals ⚫ Modems Pin Description Function Table INX Function 0 1 Pin Name Type Description VCC PWR Power Supply GND Ground Ground COMx Input/Output Data Port NCx Input/Output Data Port NCX Connected to COMX NOx Input/Output Data Port NOX Connected to COMX INX Input Logic Control Signal ** X = 1or 2 http://www.belling.com.cn -1- V1.0 BL1555 ABSOLUTE MAXIMUM RATINGS Parameter Symbol Min Max Units DC Supply Voltage VCC -0.5 6 V DC Switch Voltage VNCX/ VNOX/ VCOMX -0.5 VSUP + 0.3 V DC Input Voltage VINX -0.5 6 V Continuous Current I(NCX/NOX/COMX) -250 +250 mA Peak Current(1) IPEAK(NCX/NOX/COMX) -350 +350 mA Storage Temperature Range TSTG -65 150 ℃ Notes: (1) Pulsed at 1ms, 50% duty circle (2) Stress beyond above listed “Absolute Maximum Ratings” may lead permanent damage to the device. These are stress ratings only and operations of the device at these or any other conditions beyond those indicated in the operational sections of the specifications are not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. (3) Control input(VINX) must be held HIGH or LOW, and mustn’t be floated. RECOMMENDED OPERATING CONDITIONS DC Supply Voltage (VCC) ……………………………………………….1.65V to 5.5V Switch Input Voltage (VS) ………………………………………………...0V to VCC Control Input Voltage (VIN) ………………………………………………. 0V to VCC Operation Temperature (TA) ……………………………………………..-40℃ to +125℃ http://www.belling.com.cn -2- V1.0 BL1555 DC ELECTRICAL CHARACTERISTICS （ VCC=5V，TA=+25℃，unless otherwise noted） Guaranteed Limit Parameter Symbol Conditions Unit Min. Typ. Max. Analog Switch Analog Signal Range VNOX/VNCX/ NC On-Resistance RON(NC) NO On-Resistance RON(NO) NC On-Resistance Flatness(1) RFLAT(NC) NO On-Resistance Flatness(1) RFLAT(NO) On-Resistance Match Between Channels(2) NC or NO Off Leakage Current COM On Leakage Current 0 VCOMX VCC = 5V; ICOM =100mA ; VNC = 0 to VCC VCC = 5V; ICOM =100mA ; VNO= 0 to VCC VCC = 5V; ICOM =100mA ; VNC = 0 to VCC VCC = 5V; ICOM =100mA ; VNO = 0 to VCC VCC = 5V; ICOM =100mA ; VNC △RON /VNO=1.5 IOFF(NC) or VCC = 5V; VNO or VNC = 3V, 0.3V; IOFF(NO) VCOM = 0.3V, 3 V ION(COM) VCC = 5V; VNO or VNC = 3V, 0.3V; VCOM = 0.3V, 3 V or floating VCC V 0.3 0.6 Ω 0.3 0.6 Ω 0.08 0.2 Ω 0.08 0.2 Ω 0.03 0.09 Ω 4 nA 4 nA Digital I/O Input Voltage High VIH Minimum High Level Input Voltage Input Voltage Low VIL Maximum Low Level Input Voltage Input Hysteresis IH VCC = 5V Input Leakage Current IIN VIN = 0 or Vcc 1.8 V 0.6 200 -1 V mV 1 uA DC ELECTRICAL CHARACTERISTICS （ VCC=2.7V，TA=+25℃，unless otherwise noted） Guaranteed Limit Parameter Symbol Conditions Unit Min. Typ. Max. Analog Switch Analog Signal Range VNOX/VNCX/ NC On-Resistance RON(NC) NO On-Resistance RON(NO) NC On-Resistance Flatness(1) RFLAT(NC) http://www.belling.com.cn 0 VCOMX VCC = 2.7V; ICOM =100mA ; VNC = 0 to VCC VCC = 2.7V; ICOM =100mA ; VNO= 0 to VCC VCC = 2.7V; ICOM =100mA ; VNC = 0 to VCC -3- VCC V 0.6 1.1 Ω 0.6 1.1 Ω 0.26 0.4 Ω V1.0 BL1555 NO On-Resistance Flatness(1) RFLAT(NO) On-Resistance Match Between Channels(2) NC or NO Off Leakage Current COM On Leakage Current △RON VCC = 2.7V; ICOM =100mA ; VNO = 0 to VCC VCC = 2.7V; ICOM =100mA ; VNC /VNO=1.5 IOFF(NC) or VCC = 2.7V; VNO or VNC = 2.7V, 0.3V; IOFF(NO) ION(COM) VCOM = 0.3V, 2.7V VCC = 2.7V; VNO or VNC = 2.7V, 0.3V; VCOM = 0.3V, 2.7V or floating 0.26 0.4 Ω 0.05 0.1 Ω 4 nA 4 nA Digital I/O Input Voltage High VIH Minimum High Level Input Voltage Input Voltage Low VIL Maximum Low Level Input Voltage Input Hysteresis IH VCC = 2.7V Input Leakage Current IIN VIN = 0 or Vcc 1.3 V 0.6 V 200 -1 mV 1 uA Note: (1) Flatness is defined as the difference between the maximum and minimum value of on resistance as measured over the specified analog signal ranges. (2) △RON= RON(MAX) - RON(MIN), between NC1 and NC2 or between NO1 and NO2. DYNAMIC CHARACTERISTICS （ VCC=3.3V，TA=+25℃，unless otherwise noted） Guaranteed Limit Parameter Symbol Conditions Min. Typ. Max. Unit AC ELECTRICAL CHARACTERISTICS VCC = 5V; VNO or VNC = 1.5V, RL = 50Ω; CL = 35pF, Figure1 Turn-On Time tON VCC = 3.3; VNO or VNC = 1.5V, RL = 50Ω; CL = 35pF, Figure1 VCC = 5V; VNO or VNC = 1.5V, RL = 50Ω; CL = 35pF, Figure1 Turn-Off Time tOFF VCC = 3.3; VNO or VNC = 1.5V, RL = 50Ω; CL = 35pF, Figure1 VCC = 5V; VNO or VNC = 1.5V, RL = 50Ω; CL = 35pF, Figure2 Break-Before-Make Time 42 ns 43 25 ns 30 22 tBBM ns VCC = 3.3V; VNO or VNC = 1.5V, RL = 50Ω; CL = 35pF, Figure2 22 NC OFF Capacitance COFF(NC) f = 1MHz, Figure6 82 pF NO OFF Capacitance COFF(NO) f = 1MHz, Figure6 70 pF NC ON Capacitance CON(NC) f = 1MHz, Figure7 255 pF NO ON Capacitance CON(NO) f = 1MHz, Figure7 245 pF http://www.belling.com.cn -4- V1.0 BL1555 ADDITIONAL APPLICATION CHARACTERISTICS 3dB Bandwidth Figure8 f3dB 33 VCC=5V; VGEN = 0V; RGEN = 0Ω; CL = MHz 58 1nF; Figure3 Charge Injection Q pC VCC=3.3V; VGEN = 0V; RGEN = 0Ω; CL = 45 1nF; Figure3 Off Isolation(1) VCC=5V; f = 100kHz; RL = 50Ω; CL = VIso -66 dB -74 dB 0.035 % 5pF; VCOM = 1 VRMS; Figure4 Crosstalk (2) VCC=5V; f = 100kHz; RL = 50Ω; CL = VCT 5pF; VCOM = 1 VRMS; Figure5 Total Harmonic Distortion VCC = 5V; RL = 32Ω; VIN = 2.8VP-P; THD Supply Power Supply Range Vcc Maximum Quiescent 1.65 Icc Supply Current VCC = 5.5V; VIN = VCC or 0 5.5 V 1 uA Note: (1) Off Channel Isolation = 20log10 [(VNO\NC)/VCOM] (2) Between any two switches TEST SETUP CIRCUITS VCC Vin tr = tf < 5ns MOS Switch Nx Vout COM VIH Unused Nx RL CL Logic Input Off On 50% VIL RL=50Ω CL= 35pF A Switch Output Vout 90% 0V Input Logic tON tOFF GND Figure1. AC Test Circuit & Waveforms http://www.belling.com.cn -5- V1.0 BL1555 VCC Vin MOS Switch NC Vout COM VIH NO CL Logic Input RL Off 50% On VIL Vout RL=50Ω CL= 35pF A 90% Vout Switch Output Input Logic tBBM GND Figure2. Break-Before-Make Time (tBBM) VCC MOS Switch NCx RGEN COMx Vout NOx Q = △Vout * CL CL = 1nF VGEN Logic Input VIH Off On VIL △Vout Switch Output Vout A Input Logic GND Figure3. Charge Injection (Q) VCC VCC MOS Switch 50 Ω COMx Analyzer 10nF 50 Ω Nx Signal Generator MOS Switch COMx NO 50 Ω CL Analyzer RL=50Ω CL= 5pF Input 0V( Test NO ) or VIH ( Test NC ) RL CL A RL=50Ω CL= 5pF GND Figure4. Off Isolation (VISO) http://www.belling.com.cn NC Signal Generator RL A 10nF GND Figure5. Cross Talk (VCT) -6- V1.0 BL1555 VCC VCC 10nF COM A MOS Switch f = 1 MHz MOS Switch Capacitance Meter f = 1 MHz 10nF COM Capacitance Meter Input 0V or VIH A Input 0V or VIH Nx NX GND GND Figure6. Channel Off Capacitance(COFF(NX)) Figure7. Channel On Capacitance(CON(NX)) VCC 10nF 50 Ω MOS Switch COMx Analyzer Nx 50 Ω Signal Generator A Input 0V or VIH GND Figure8. -3dB Bandwidth (f3dB) http://www.belling.com.cn -7- V1.0 BL1555 PACKAGE OUTLINE DIMENSIONS (MSOP10) http://www.belling.com.cn -8- V1.0
