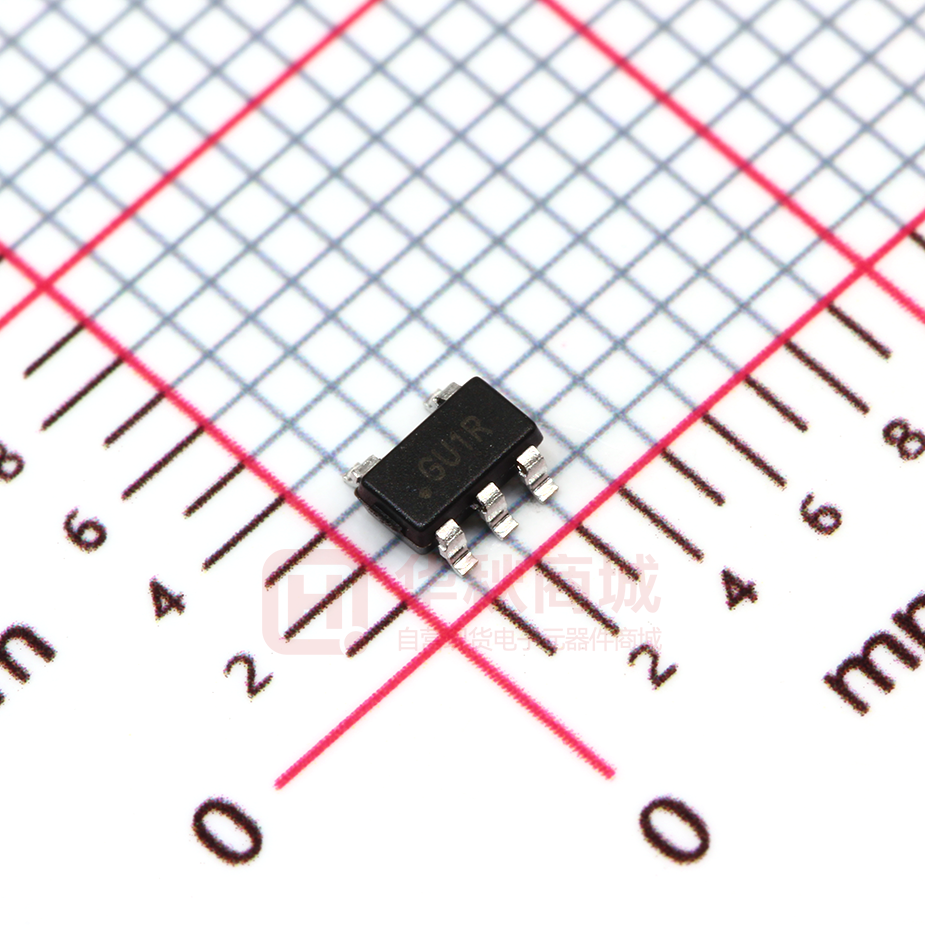

BL8028CB5TR

BL8028 1.5A 2MHz 6V Synchronous Buck Converter DESCRIPTION FEATURES The BL8028 is a high-efficiency, DC-to-DC stepdown switching regulators, capable of delivering up to 1.5A of output current. The device operates from an input voltage range of 2.6V to 6V and provides an output voltage from 0.6V to VIN, making the BL8028 ideal for low voltage power conversions. Running at a fixed frequency of 2MHz allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing low output ripples. This low noise output along with its excellent efficiency achieved by the internal synchronous rectifier, making BL8028 an ideal green replacement for large power consuming linear regulators. Internal soft-start control circuitry reduces inrush current. Short-circuit and thermal-overload protection improves design reliability.            APPLICATIONS        The BL8028 is available in SOT23-5 and the tiny DFN2*2-6 packages. TYPICAL APPLICATION VIN 2.6V to 6V VOUT 1.8V SW LC2201 BL8028 EN 240k VIN 5 4 NC 1 NC FB GND FB GUYW 10uF GU YW 10uF Cellular phones Digital Cameras MP3 and MP4 players Set top boxes Wireless and DSL Modems USB supplied Devices in Notebooks Portable Devices PIN OUT & MARKING 1uH/2.2uH VIN High Efficiency: Up to 97% Capable of Delivering 1.5A 2MHz Switching Frequency No External Schottky Diode Needed Low dropout 100% Duty operation Internal Compensation and Soft-Start Current Mode control 0.6V Reference for Low Output voltages Logic Control Shutdown (IQ2000V Storage Temperature(Ts) Lead Temperature & Time ESD (HBM) Note: Exceed these limits to damage to the device. Exposure to absolute maximum rating conditions may affect device reliability. RECOMMENDED WORK CONDITIONS Parameter Value Input Voltage Range Operating Junction Temperature(Tj) 6V -20C –125C ELECTRICAL CHARACTERISTICS (Vin=5V, TA=25C, unless otherwise specified.) Symbol Parameter Vin Input Voltage Range Vref Feedback Voltage IFB Feedback Leakage current IQ Quiescent Current Conditions Min Typ 2.6 Vin=5V 0.588 Active, VFB=0.65, No Switching Max Unit 6 V 0.6 0.612 V 0.1 1 uA 80 Shutdown uA 1 uA LNR Line Regulation Vin=2.6V to 5.5V 0.1 0.2 %/V LDR Load Regulation Iout=0.01 to 1A 0.1 0.2 %/A FSOC Switching Frequency 2 2.4 MHz RDSONP PMOS Rdson 250 350 mohm RDSONN NMOS Rdson 150 250 mohm VUVLO Under Voltage Lockout 2.1 2.3 VUVLO_HY Ilimit 1.6 1.9 UVLO Hysteresis 100 Peak Current Limit Inoload 1.8 Vin=5V, Vout=3.3V, Iout=0 2.3 2.8 80 A uA Iswlk SW Leakage Current Ienlk EN Leakage Current Vh_en EN Input High Voltage Vl_en EN Input Low Voltage TSD Thermal Shutdown Temp 160 °C TSH Thermal Shutdown Hysteresis 15 °C www.belling.com.cn Vout=6V, VSW=0 or 6V, EN=0V V mV 1 uA 1 uA 1.2 V 0.5 2 V BL8028 PIN DESCRIPTION NAME PIN # EN GND SW VIN SOT23-5 1 2 3 4 DFN2*2-6 2 5 4 3 FB 5 6 NC - 1 DESCRIPTION Enable pin for the IC. Drive the pin to high to enable the part, and low to disable Ground Inductor connection. Connect an inductor between SW and the regulator output. Supply voltage. Feedback input. Connect an external resistor divider from the output to FB and GND to set the output to a voltage between 0.6V and Vin No Connection ELECTRICAL PERFORMANCE Tested under TA=25C, unless otherwise specified Efficiency vs. Output Current Efficiency vs. Output Current (Vout=1.8V) 100% 100% 90% 90% 80% 80% 70% 70% Efficiency Efficiency (Vout=1.2V) 60% 50% 40% 50% 40% 30% 30% Vin=2.5V Vin=3.3V Vin=4.0V Vin=5.5V 20% 10% 0% 0.001 0.01 0.1 Iout (A) 1 10% 10 90% 80% 70% 60% 50% 40% 30% Vin=4.0V Vin=5.0V Vin=5.5V 20% 10% www.belling.com.cn 0.1 Iout (A) 0.01 0.1 Iout (A) 1 Vin=5V / Vout=1.8V Ch1—Vin, Ch2—Vout, Ch3—Vsw, Ch4—ISW (Vout=3.3V) 0.01 0% 0.001 Output Ripple and SW at 1A load 100% 0% 0.001 Vin=2.5V Vin=3.3V Vin=4.0V Vin=5.5V 20% Efficiency vs. Output Current Efficiency 60% 1 10 3 10 BL8028 BLOCK DIAGRAM DETAILED DESCRIPTION The BL8028 high-efficiency switching regulator is a small, simple, DC-to-DC step-down converter capable of delivering up to 1.5A of output current. The device operates in pulse-width modulation (PWM) at 2MHz from a 2.6V to 6V input voltage and provides an output voltage from 0.6V to VIN, making the BL8028 ideal for on-board postregulation applications. An internal synchronous rectifier improves efficiency and eliminates the typical Schottky free-wheeling diode. Using the on resistance of the internal high-side MOSFET to sense switching currents eliminates current-sense resistors, further improving efficiency and cost. Loop Operation BL8028 uses a PWM current-mode control scheme. An open-loop comparator compares the integrated voltage-feedback signal against the sum of the amplified current-sense signal and the slope compensation ramp. At each rising edge of the internal clock, the internal high-side MOSFET turns on until the PWM comparator terminates the on cycle. During this on-time, current ramps up through the inductor, sourcing current to the output and storing energy in the inductor. The current mode feedback system regulates the peak inductor current as a function of the output voltage www.belling.com.cn 4 error signal. During the off cycle, the internal highside P-channel MOSFET turns off, and the internal low-side N-channel MOSFET turns on. The inductor releases the stored energy as its current ramps down while still providing current to the output. Current Sense An internal current-sense amplifier senses the current through the high-side MOSFET during on time and produces a proportional current signal, which is used to sum with the slope compensation signal. The summed signal then is compared with the error amplifier output by the PWM comparator to terminate the on cycle. Current Limit There is a cycle-by-cycle current limit on the highside MOSFET of 2.3A (typ). When the current flowing out of SW exceeds this limit, the high-side MOSFET turns off and the synchronous rectifier turns on. BL8028 utilizes a frequency fold-back mode to prevent overheating during short-circuit output conditions. The device enters frequency fold-back mode when the FB voltage drops below 100mV, limiting the current to 2.3A (typ) and reducing power dissipation. Normal operation resumes upon removal of the short-circuit condition. BL8028 Soft-start RTOP = RBOTTOM[(VOUT / 0.6) - 1] BL8028 has an internal soft-start circuitry to reduce supply inrush current during startup conditions. When the device exits under-voltage lockout (UVLO), shutdown mode, or restarts following a thermal-overload event, the soft-start circuitry slowly ramps up current available at SW. Input Capacitor Selection The input capacitor in a DC-to-DC converter reduces current peaks drawn from the battery or other input power source and reduces switching noise in the controller. The impedance of the input capacitor at the switching frequency should be less than that of the input source so high-frequency switching currents do not pass through the input source. The output capacitor keeps output ripple small and ensures control-loop stability. The output capacitor must also have low impedance at the switching frequency. Ceramic, polymer, and tantalum capacitors are suitable, with ceramic exhibiting the lowest ESR and high-frequency impedance. Output ripple with a ceramic output capacitor is approximately as follows: VRIPPLE = IL(PEAK)[1 / (2π x fOSC x COUT)] UVLO and Thermal Shutdown If VIN drops below 2.1V, the UVLO circuit inhibits switching. Once VIN rises above 2.2V, the UVLO clears, and the soft-start sequence activates. Thermal-overload protection limits total power dissipation in the device. When the junction temperature exceeds TJ= +160°C, a thermal sensor forces the device into shutdown, allowing the die to cool. The thermal sensor turns the device on again after the junction temperature cools by 15°C, resulting in a pulsed output during continuous overload conditions. Following a thermal-shutdown condition, the soft-start sequence begins. If the capacitor has significant ESR, the output ripple component due to capacitor ESR is as follows: VRIPPLE(ESR) = IL(PEAK) x ESR Design Procedure Setting Output Voltages Output voltages are set by external resistors. The FB_ threshold is 0.6V. LAYOUT GUIDE The blue line is placed on the back side. Cout as close as possible to Vout Cout Vout L GND FB&GND connect to R1 directly as short as possible Keep the path below shortly and wide for low resistance www.belling.com.cn FB VIN Make GND loop Resistance as small as possible SW SW Jumper Off EN On GND Keep the path below short and wide for low resistance VIN Cin 5 Cin as close as possible to VIN R1 R2 BL8028 PACKAGE OUTLINE Package SOT23-5 Devices per reel 3000 Unit mm Devices per reel 3000 Unit mm Package specification： Package DFN2x2-6 Package specification： www.belling.com.cn 6
