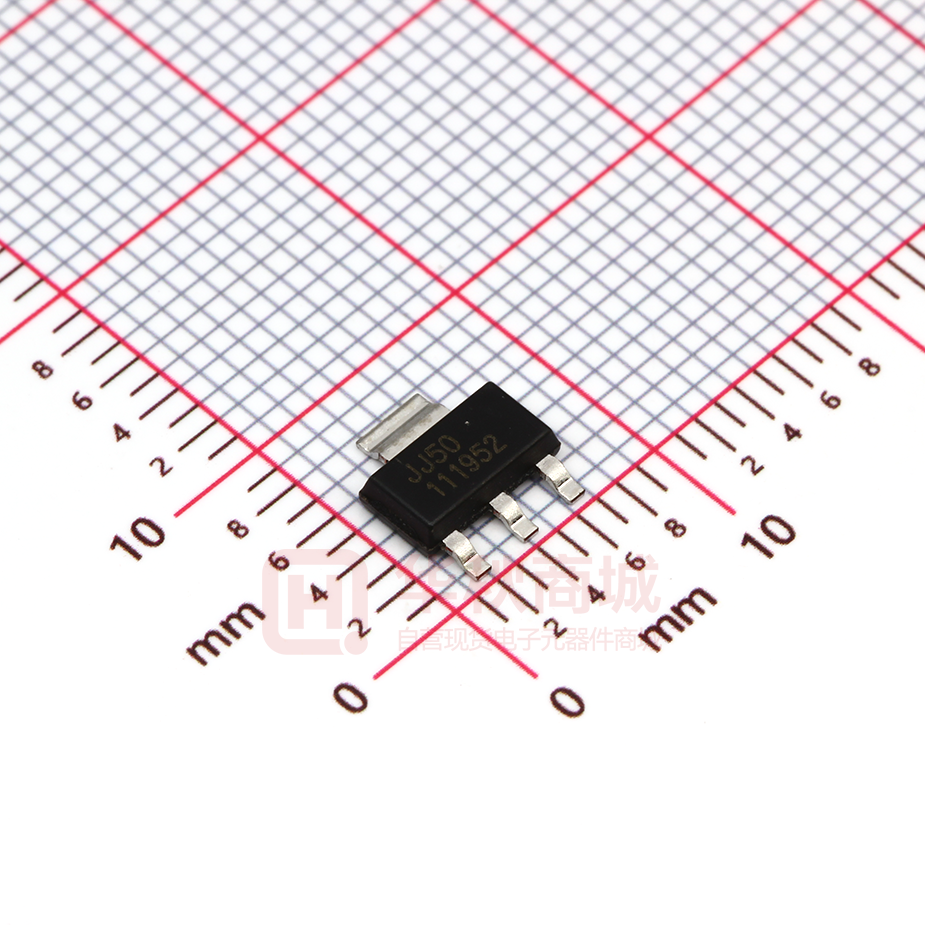

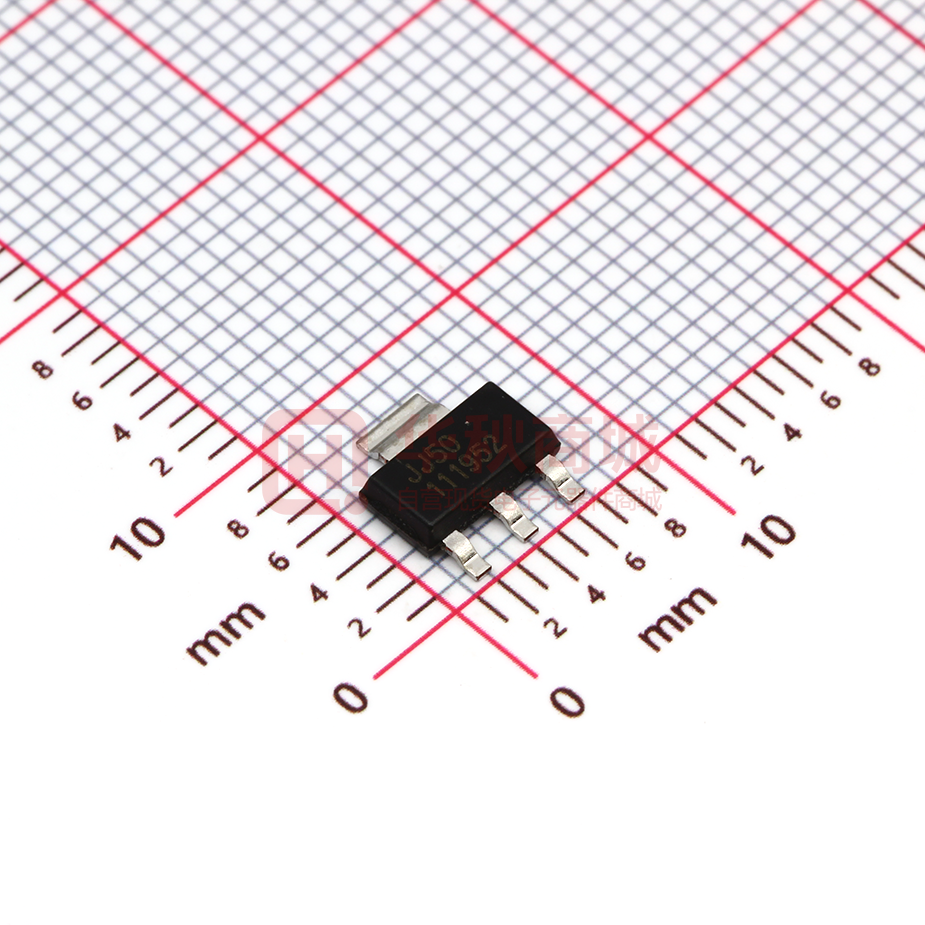

BL8072CLTR50

BL8072 2A Low Consumption Linear Regulator DESCRIPTION FEATURES      BL8072 is a series of low power consumption, low dropout voltage regulator with a typical dropout voltage of 1.0V at 2A load current. BL8072 can provide output value in the range of 1.2V~5.0V in 0.1V steps. It also can customized on command.   Other than every voltage version can be used as an adjustable voltage version, with which desired voltage can be achieved by setting the values of two external resistors of the application circuitry.  APPLICATIONS BL8072 has well load transient response and good temperature characteristic, And it uses trimming technique to guarantee output voltage accuracy within±2%.     BL8072 series is available in standard packages of SOT-223 and TO-252. TYPICAL APPLICATION Vin Vin Cin Low Power Consumption:3.0uA (Typ.) Maximum output current : 2A Maximum input voltage: 18V Line regulation: 0.2% (Typical) Output Voltage Range:1.2V~5.0V (customized on command in 0.1V steps) Highly Accurate:±2%(±1% customized) Typical Dropout Voltage: 850mV@1.5A (Vout=3.3V) Operation environment Temperature: -40 ~85 Battery Charger Battery Powered equipment Post Regulators for Switching Supplies Reference Voltage Source Regulation after Switching Power ELECTRICAL CHARACTERISTICS Vout LC1222 BL8072 GND Dropout Vout 2.0 1.8 Cout 1.6 Dropout (V) 1.4 Fig1. BL8072 fixed voltage application circuit 1.0 0.8 0.6 Vout=1.2V Vout=3.3V Vout=5.0V 0.4 Note: Input capacitor (Cin=1uF) and Output capacitor (Cout=1uF) are recommended in all application circuit. ceramic capacitor is recommended. www.belling.com.cn 1.2 0.2 0.0 0.0 1 0.5 1.0 Iout(A) 1.5 2.0 BL8072 ORDERING INFORMATION PIN CONFIGURATION BL8072 □ 1□ 2□ 3□ 4□ 5 Code Product Classification JJ: Product Code XX: Output Voltage LL: Lot No. 1 □ 2 □ 3 □ 4 □ 5 □ Description Temperature&Rohs: C: -40~85C, Pb Free Rohs Std. Package type: L: SOT-223 O:TO-252 Packing type: TR: Tape&Reel (Standard) Output voltage: e.g. 18=1.8V 33=3.3V 50=5.0V Voltage accuracy: Blank(default):±2% 1: ±1% BL8072CLTR□□ YYWW: Date Code Product Classification JJ: Product Code XX: Output Voltage LL: Lot No. BL8072COTR□□ TO-252 YYWW: Date Code ABSOLUTE MAXIMUM RATING Parameter Max Input Voltage Operating Junction Temperature(Tj) Ambient Temperature(Ta) Package SOT-223 Thermal TO-252 Resistance Storage Temperature(Ts) Lead Temperature & Time XX: Output voltage code, e.g. 12=1.2V, 25=2.5V, 33=3.3V; YY: The Year of manufacturing, ”11” stands for year 2011, ”12” stands for year 2012, and “28”stands for year2028. WW: The week of manufacturing. ”01” stands for week 1, ”02” stands for week 02, ”52” stands for week 52. Value 20V 125C -40C –85C 20C / W 12C / W -40C -150C 260C,10S Note: Exceed these limits to damage to the device. Exposure to absolute maximum rating conditions may affect device reliability. RECOMMENDED WORK CONDITIONS Parameter Input Voltage Range Ambient Temperature www.belling.com.cn Value Max.18V -40C –85C 2 BL8072 ELECTRICAL CHARACTERISTICS (Test Conditions: Cin=1uF, Cout=1uF, TA=25C, Unless Otherwise Specified) Symbol Vin Parameter Output Voltage Iout(Max.) Maximum Output Current Vout Vin  Vout Input-Output Voltage Differential (note 3) Vin-Vout=1.9V Vin-Vout=1.5V Vin-Vout=1V Vout
