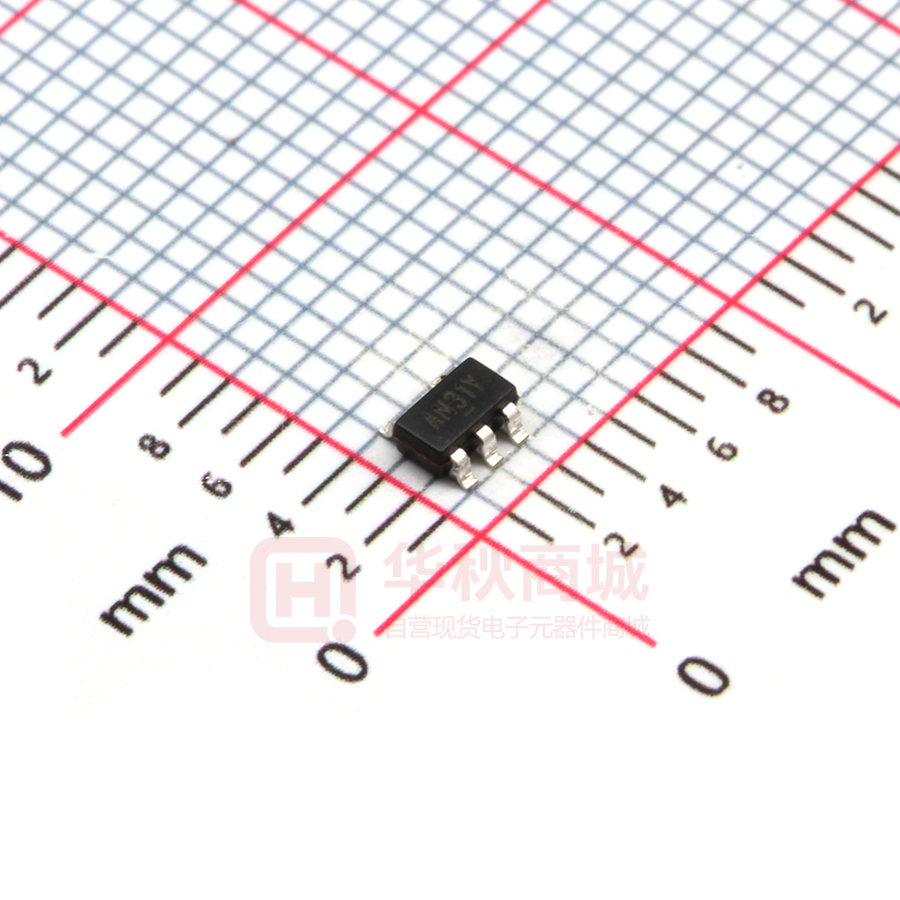

BL8077CB5TR33

BL8077 0.8uA Low Power Consumption Regulator with Enable DESCRIPTION FEATURES The BL8077 is a group of positive voltage output, low power consumption, low dropout voltage regulator. The very low power consumption of BL8077 (0.8uA, Typ) can greatly improve natural life of batteries. The BL8077 includes high accuracy voltage reference, error amplifier and output driver module with discharge capability. And it also provides foldback short-circuit protection, thermal protection and output current limit function.         Maximum output current:300mA Low power consumption: 0.8uA (Typ.) Stand-by current: less than 0.1uA Operating input voltage:1.8V~5.5V Low dropout voltage: 150mV @100mA @Vout=3.3V (Typ.) Low temperature coefficient: ±100ppm/C Build-in chip enable and discharge circuit Built-in output current limit circuit APPLICATIONS The BL8077 can provide output value of fixed version as 1.2V, 1.8V, 2.5V, 2.8V, 3V, and 3.3V. It also can be customized on command.    BL8077 is available in SOT23-5 and DFN1x1-4 which are lead free.    TYPICAL APPLICATION ELECTRICAL CHARACTERISTICS Mobile phones Battery powered equipment Cordless phones, wireless communication equipment Cameras, video recorders Portable AV equipment PDAs Iq VIN Cin CE VOUT LC1201 BL8077 Output 1.4 1.2 Cout 1.0 GND Iq (uA) Input (Vout=1.8V) On/Off 0.8 0.6 0.4 Note: Input capacitor (Cin=1uF) and output capacitor (Cout=1uF) are recommended in all application circuit. T=-40°C T=25°C T=85°C 0.2 0.0 2 www.belling.com.cn 1 3 4 Vin (V) 5 6 BL8077 ORDERING INFORMATION BL8077 □ 1□ 2□ 3□ 4 Code 1 □ 2 □ 3 □ 4 □ PIN CONFIGURATION Description Product classification Temperature&Rohs: C:-40~85C ,Pb Free Rohs Std. Package type: B5:SOT-23-5 KE:DFN1x1-4 Packing type: TR:Tape&Reel (Standard) Output voltage: e.g. 12=1.2V 18=1.8V 33=3.3V BL8077CB5TR□□ SOT23-5 AN: Product code X: Output voltage NC 5 4 ANXYW YW: Date code Product classification 1 2 3 VIN GND CE BL8077CKETR□□ MARKING DESCRIPTON AN: Product Code X: Output Voltage(for SOT23-5) Vout Code Vout Code 1.2V 2 2.5V 5 1.8V 8 2.8V 8 VOUT VIN 4 Vout 3.0V 3.3V DFN1x1-4 XX XX: Output Voltage Code 0 3 1 VOUT XX: Output Voltage (for DFN1X1-4) Y: The Year of manufacturing,”1” stands for year 2011,”2” stands for year 2012, and “8” stands for year 2018. W: The week of manufacturing. ”A” stands for week CE 3 2 GND Thermal Pad: GND VIN GND CE NC VOUT 1,”Z” stands for week 26,” A ” stands for week 27,” Supply voltage input Ground pin Chip enable No connection Output voltage Z ” stands for week 52. ABSOLUTE MAXIMUM RATING Parameter Value Max input voltage operating junction temperature(TJ) Output current Ambient temperature(TA) Package thermal resistance (JA) Power dissipation 8V 125C 400mA1 -40C –85C 220C / W 170C / W 400mW 600mW -40C -150C 260C,10S SOT-23-5 DFN1x1-4 SOT-23-5 DFN1x1-4 Storage temperature(TS) Lead temperature & time Note: 1) Iout=PD/ (Vin-Vout) 2) Exceed these limits to damage to the device. Exposure to absolute maximum rating conditions may affect device reliability. www.belling.com.cn 2 BL8077 ELECTRICAL CHARACTERISTICS Test Conditions: CIN=1uF, COUT=1uF,TA=25C, unless otherwise specified. Symbol Parameter VIN Input voltage VOUT Output voltage IOUT(MAX) Max output current VDROP1 Dropout voltage ΔVout ΔVin  Vout Line regulation Vout Load regulation ISS Supply current ISTANDBY Supply current (standby) ISHORT Short current limit ΔVout ΔT  Vout Output voltage temperature coefficient RDISCHARGE TSD Discharge resistor Thermal shutdown temp Thermal shutdown hysteresis CE “L” level voltage CE “H” level voltage TSH VCEL VCEH Conditions Vout≤1.5V ,Vin=2.5V, Iout=0mA Vout >1.5V ,Vin=Vout+1V, Iout=0mA Vout≤1.5V , Vin=2.5V Vout >1.5V , Vin=Vout+1V Vout=1.2V, Iout=300mA Vout=1.8V, Iout=300mA Vout=3.3V,Iout=300mA Iout=10mA, Vout≤1.3V, 1.8V≤Vin≤5V Iout=10mA, Vout>1.3V, Vout+0.5V≤Vin≤5V Vout≤1.5V, Vin=2.5V 0mA≤Iout≤300mA Vout>1.5V, Vin=Vout+1V 0mA≤Iout≤300mA Vin=Set Vout+1V Vin=Set Vout+1V Vce=GND Vout=0V Min 1.8 Vout x0.98 Typ Max Units V Vout 5.5 Vout X1.02 300 V mA 1200 780 460 1450 950 550 0.5 mV mV %/V 55 85 mv 0.8 1.5 uA 0.01 0.1 uA 60 mA Iout=10mA ±100 ppm/C CE=0, Vout=3V Vin=Set Vout+1V, Iout=10mA 250 160 Vin=Set Vout+1V, Iout=10mA 30 Vin=Set Vout+1V Vin=Set Vout+1V 0 1.5 300 ohm °C °C 0.4 5.5 V V Note: 1) VDROP=VIN1-(VOUT2*0.98), VOUT2 is the output voltage when VIN=VOUT1+1.0V and IOUT=300mA. VIN1 is the input voltage at which the output voltage becomes 98% of VOUT1 after gradually decreasing the input voltage. www.belling.com.cn 3 BL8077 BLOCK DIAGRAM EXPLANATION Output Voltage The BL8077 can provide output value of fixed version as 1.2V, 1.8V, 2.5V, 2.8V, 3V, and 3.3V. It also can be customized on command. Short Protection Circuit The BL8077 regulator offers circuit protection by means of a built-in foldback circuit. When the load current reaches the current limit level, the fixed current limiter circuit operates and output voltage drops. As a result of this drop in output voltage, the foldback circuit operates, the output voltage drops further and output current decreases. When the output pin is shorted, a current of about 60mA flows. CE Pin The IC's internal circuitry can be operated or shutdown via the signal from the CE pin with the BL8077. Note that the BL8077 regulator is “High Active/No Pull-Down”, operations will become unstable with the CE pin open. We suggest that you use this IC with either a VIN voltage or a GND voltage input at the CE pin. If this IC is used with the correct specifications for the CE pin, the operational logic is fixed and the IC will operate normally. Otherwise, supply current may increase as a result of through current in the IC's internal circuitry. Thermal Shutdown When the junction temperature of the built-in driver transistor reaches the temperature limit, the thermal shutdown circuit operates and the driver transistor will be set to OFF. The IC resumes its operation when the thermal shutdown function is released and the IC’s operation is automatically restored because the junction temperature drops to the level of the thermal shutdown release voltage. www.belling.com.cn 4 BL8077 TYPICAL PERFORMANCE CHARACTERISTICS Load Regulation Load Regulation (Vout=1.2V) (Vout=1.8V) 1.2 2.0 1.0 Vout (V) Vout (V) 1.5 0.8 0.6 1.0 0.4 0.5 Vin=3.0V Vin=2.2V Vin=1.8V 0.2 0.0 0 100 200 300 Vin=3.3V Vin=2.8V Vin=2.3V 0.0 400 0 100 200 Iout (mA) 300 400 500 Iout (mA) Load Regulation Line Regulation (Vout=3.3V) (Vout=1.2V) 3.5 1.4 1.3 3.0 1.2 Vout (V) Vout (V) 2.5 2.0 1.5 1.1 1.0 0.9 0.8 1.0 0.7 Vin=5.0V Vin=4.3V Vin=3.8V 0.5 0.0 Iout=50mA Iout=10mA Iout=0mA 0.6 0.5 0 100 200 300 400 500 1.0 1.5 2.0 2.5 Iout (mA) 3.5 4.0 4.5 5.0 5.5 6.0 Vin (V) Line Regulation Line Regulation (Vout=1.8V) (Vout=3.3V) 2.0 4.0 1.8 3.5 Vout (V) Vout (V) 3.0 1.6 3.0 1.4 2.5 1.2 Iout=50mA Iout=10mA Iout=0mA 1.0 Iout=50mA Iout=10mA Iout=0mA 2.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 Vin (V) www.belling.com.cn 3.0 3.5 4.0 4.5 Vin (V) 5 5.0 5.5 6.0 BL8077 Dropout Voltage vs. Temp Dropout Voltage vs. Temp (Vout=1.8V) 1,300 1,200 1,100 1,000 900 800 700 600 500 400 300 200 100 0 900 800 700 Dropout (mV) Dropout (mV) (Vout=1.2V) 100 200 500 400 300 200 T=-40°C T=25°C T=85°C 0 600 T=-40°C T=25°C T=85°C 100 0 300 0 100 200 Iout (mA) 300 Iout (mA) Dropout Voltage vs. Temp Iq (Vout=3.3V) (Vout=1.2V) 550 1.4 500 1.2 450 1.0 350 Iq (uA) Dropout (mV) 400 300 250 0.8 0.6 200 0.4 150 T=-40°C T=25°C T=85°C 100 50 0 0 100 200 T=-40°C T=25°C T=85°C 0.2 0.0 300 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 Vin (V) Iq Iq (Vout=1.8V) (Vout=3.3V) 1.4 1.4 1.2 1.2 1.0 1.0 Iq (uA) Iq (uA) Iout (mA) 0.8 0.8 0.6 0.6 0.4 0.4 T=-40°C T=25°C T=85°C 0.2 T=-40°C T=25°C T=85°C 0.2 0.0 0.0 2 www.belling.com.cn 3 4 Vin (V) 5 6 3.5 4.0 4.5 5.0 Vin (V) 6 5.5 6.0 BL8077 Line Transient Response Load Transient Response Vin=2.8-3.8V, Iout=10mA, Vout=1.8V Iout=1-300mA, Vin=2.8V, Vout=1.8V Vin, 1V/div Iout, 200mA/div Vout, 500mV/div Vout, 500mV/div CE rising response time Rising response time Iout=30mA, Vin=2.8V, Vce=0V-->2V, Vout=1.8V Vin=Vce=2.2V, Iout=30mA, Vout=1.2V Vin, 1V/div Vin, 1V/div Vout, 1V/div Vout, 1V/div Vce, 1V/div Iin, 100mA/div Rising response time Rising response time Vin=Vce=2.8V, Iout=30mA, Vout=1.8V Vin=Vce=4.3V, Iout=30mA, Vout=3.3V Vin, 1V/div Vin, 2V/div Vout, 1V/div Vout, 2V/div www.belling.com.cn 7 BL8077 PACKAGE OUTLINE Package SOT-23-5 Devices per reel 3000Pcs DFN1x1-4 Devices per reel 5000Pcs Package Dimension: Unit：mm Package Package Dimension: Unit：mm www.belling.com.cn 8
