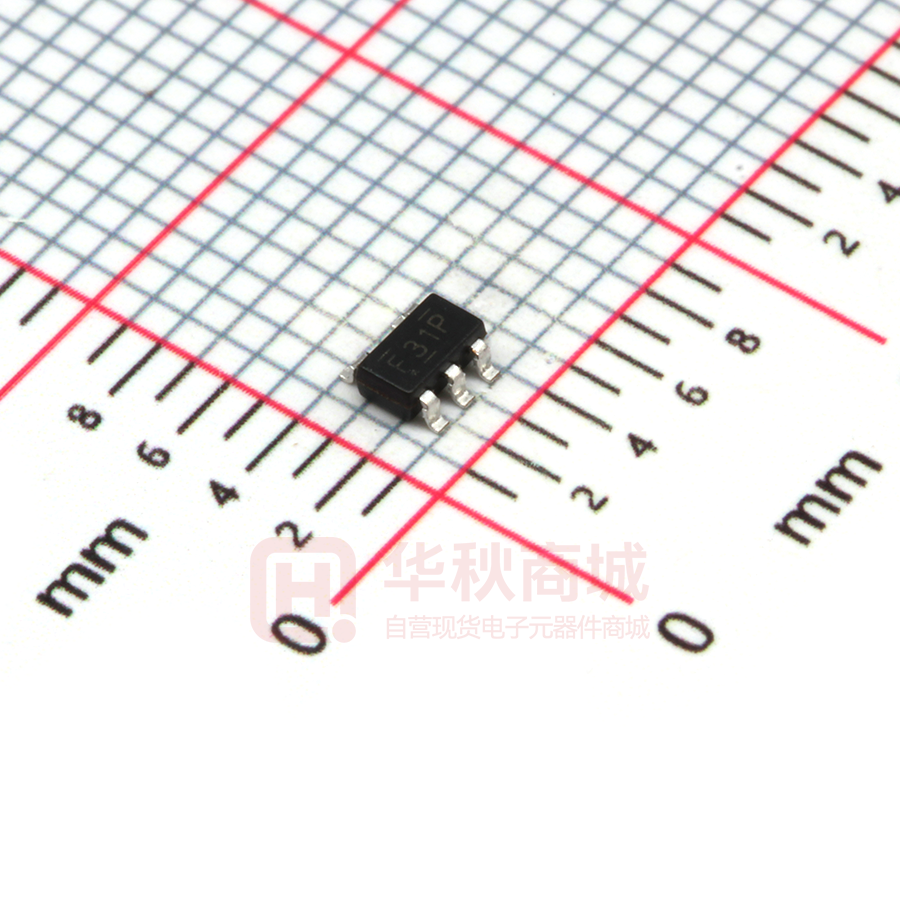

BL8563-33PRA

BL8563 300mA High PSRR, Linear Regulator, w. Output Discharge DESCRIPTION FEATURES BL8563 series is a group of positive voltage output, low power consumption, low dropout voltage regulator.  Output voltage range: 1.0V~4.5V (customized on command every 0.1V step)  Low power consumption: 35uA (Typ.)  Low output noise (47uVRMS)  Shutdown mode: 0.1uA  Low dropout voltage: 300mV@300mA (Typ.)  High ripple rejection:70dB@1KHz (Typ.)  Low temperature coefficient: ±100ppm/C  Excellent line regulation: 0.05%/V  Build-in 1.5K discharge resistor when CE low  Highly accurate: ±2%  Output current limit  Fold-back output short circuit protection BL8563 can provide output value in the range of 1.0V~4.5V every 0.1V step. It also can be customized on command. BL8563 can also work under a wide input voltage ranging from 2.0V to 6V. BL8563 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. BL8563 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. APPLICATIONS    BL8563 is available in SOT-23-3, SOT-23-5, SC-70-5, DFN1x1-4 and DFN1.2x1.6-4 packages which is lead free.   TYPICAL APPLICATION ELECTRICAL CHARACTERISTICS Vout Vin Vin 1uF CE BL8563 LC1476 Vss Vout 1uF CE NOTE: Input capacitor (Cin=1uF) and Output capacitor (Cout=1uF) are recommended in all application circuit. www.belling.com.cn Power source for cellular phones and various kind of PCSs Battery Powered equipment Power Management of MP3, PDA, DSC, Mouse, PS2 Games Voltage Reference Regulation after Switching Power 1 BL8563 XX: Output Voltage (for DFN1X1-4 and DFN1.2x1.64).”18”stands for 1.8V,”28” stands for 2.8V,and “2 8 ” stands for 2.85V. ORDERING INFORMATION BL8563- □ 1 □ 2 □ 3 Code Description Z: The Year of manufacturing,”1” stands for year 2011,”2” stands for year 2012, and ”8” stands for year 2018. Output voltage: e.g. 10=1.0V 18=1.8V 45=4.5V Temperature&Rohs: P:-40~85C ,Pb Free Rohs Std. Package type: RA: SOT-23-5(A) Q: SC-70-5 RM: SOT-23-3 1 □ 2 □ 3 □ Z: The week of manufacturing. ”A” stands for week 1,”Z” stands for week 26,” A ” stands for week 27,” Z ” stands for week 52. PIN CONFIGURATION Product Classification BL8563-□□PQ NOTE: For DFN Package : Product Code BL8563 □ 1 □ 2 □ 3 □ 4 Code Description X: Output Voltage Temperature&Rohs: C:-40~85C ,Pb Free Rohs Std. Package type: KE:DFN1x1-4 KF:DFN1.2x1.6-4 Packing type: TR:Tape&Reel (Standard) Output voltage: e.g. 15=1.5V 18=1.8V 45=4.5V 1 □ 2 □ 3 □ 4 □ ZZ: Date Code Product Classification F: Product Code X: Output Voltage ZZ: Date Code Product Classification MARKING DESCRIPTON BL8563-□□PRA : Product Code : Product Code X: Output Voltage X: Output Voltage Code (for SC70-5, SOT23-3, SOT23-5) Vout Code Vout Code Vout Code 1.0V 0 2.3V 3 3.6V 6 1.1V 1 2.4V 4 3.7V 7 1.2V 2 2.5V 5 3.8V 8 1.3V 3 2.6V 6 3.9V 9 1.4V 4 2.7V 7 4.0V 0 1.5V 5 2.8V 8 4.1V 1 1.6V 6 2.9V 9 4.2V 2 1.7V 7 3.0V 0 4.3V 3 1.8V 8 3.1V 1 4.4V 4 1.9V 9 3.2V 2 4.5V 5 2.0V 0 3.3V 3 2.1V 1 3.4V 4 2.2V 2 3.5V 5 www.belling.com.cn BL8563-□□PRM ZZ: Date Code Product Classification BL8563CKETR□□ XX: Output Voltage Product Classification BL8563CKFTR□□ XX: Output Voltage Vin Vout CE NC 2 Supply Voltage Input Output Voltage Chip Enable No Connection BL8563 ABSOLUTE MAXIMUM RATING Parameter Value Max Input Voltage Operating Junction Temperature(Tj) Output Current Ambient Temperature(Ta) SC70-5 SOT-23-3 Power Dissipation SOT-23-5 DFN1x1-4 DFN1.2x1.6-4 Storage Temperature(Ts) Lead Temperature & Time 8V 125C 300mA -40C –85C 250mW 250mW 250mW 600mW 800mW -40C -150C 260C,10S Note: Heat Sink Area of PCB for DFN1x1-4 and DFN1.2x1.6-4 is recommended at least 2.5mmx4mm. Exceed these limits to damage to the device. Exposure to absolute maximum rating conditions may affect device reliability. RECOMMENDED WORK CONDITIONS Item Min Recommended Max. Unit Input Voltage Range 2 6 V Ambient Temperature* -40 85 C *The operation ambient temperature range is verified on several test samples. Not a test condition for volume production whose test is only performed under 25C. ELECTRICAL CHARACTERISTICS (Test Conditions: Cin=1uF,Cout=1uF,TA=25C, unless otherwise specified. ) BL8563, For Arbitrary Output Voltage Symbol Parameter Vin Input Voltage Output Voltage Vout Iout (Max.) Vdrop Vout>1.5V Vout
