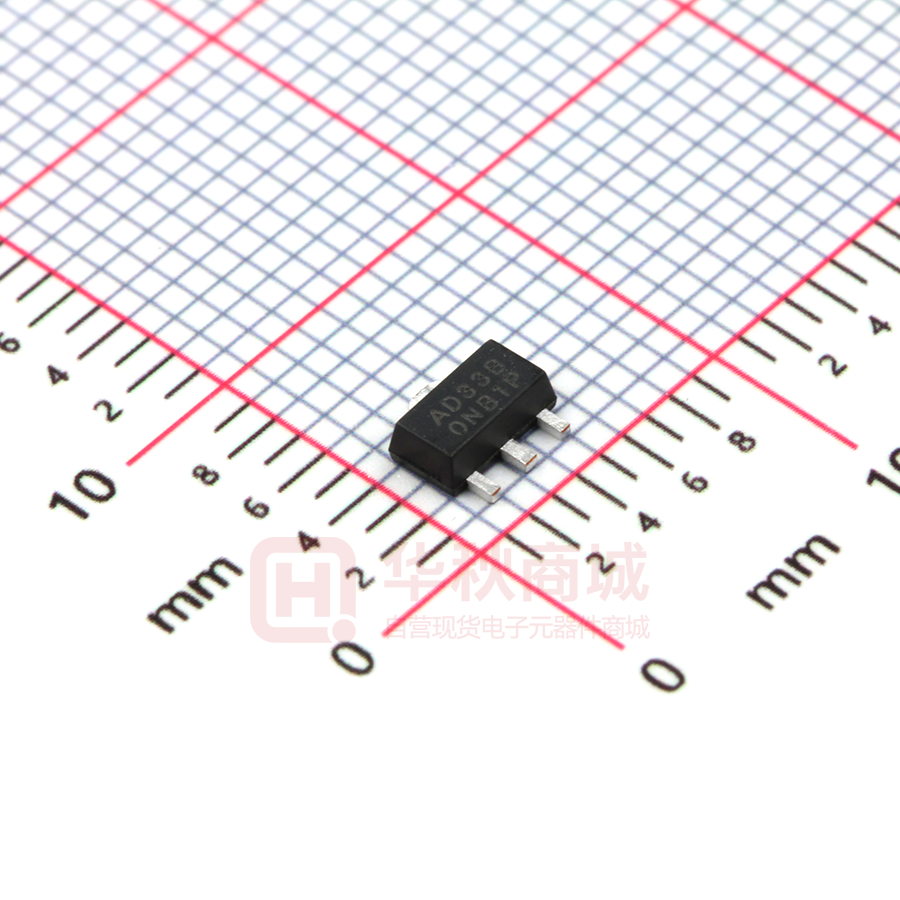

BL8565CC3BTR33

BL8565 REV1.0-Revised DEC 2007 500mA High PSRR, Low Dropout Voltage Linear Regulator DESCRIPTION FEATURES BL8565 series is a group of positive voltage output, low noise,low power consumption, low dropout voltage regulator. • • • BL8565 can provide output value in the range of 1.5V~4.5V every 0.1V step. It also can be customized on command. • BL8565 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module with discharge capability. • • • BL8565 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. • • • Low Power Consumption: 20uA（Typ.） Low output noise (47uVRMS) Low dropout Voltage: 0.16V@300mA (Typ.) High Ripple Rejection: 73dB@100Hz (Typ.) Low Temperature Coefficient: ± 100ppm/°C Excellent Line regulation: 0.05%/V Build-in chip enable and discharge circuit Output Voltage Range: 1.5V~4.5V (customized on command every 0.1V step) Highly Accurate: ±2% Output Current Limit APPLICATIONS • Power Management for Computer,Mother Board, Graphic Card • LCD Monitor and LCD TV • DVD Decode Board • Reference Voltage Source • Regulation after Switching Power BL8565 is available in SOT-89-3 packages which is lead free. TYPICAL APPLICATION ELECTRICAL CHARACTERISTICS Load Regulation (VIN=4.5V) Vout(V) BL8565 NOTE: Input capacitor (Cin=1uF) and Output capacitor (Cout=3.3uF/4.7uF) are recommended in all application circuit. www.belling.com.cn 3.35 3.3 3.25 3.2 3.15 3.1 3.05 3 0 50 100 150 200 Iout(mA) 1 250 300 350 BL8565 ORDERING INFORMATION PIN CONFIGURATION BL8565 □ 1 □ 2 □ 3 □ 4 □ 5 Product Classification Code Description 1 □ Temperature&Rohs: C:-40~85°C ,Pb Free Rohs Std. Package type: C3A:SOT-89-3(A) C3B:SOT-89-3(B) C3C:SOT-89-3(C) Packing type: TR:Tape&Reel (Standard) Output voltage: e.g. 15=1.5V 18=1.8V 45=4.5V Voltage accuracy: Blank(default)=±2% 2 □ 3 □ 4 □ 5 □ Marking AD:Product Code XX: Output Voltage ADXXA YYBZZ YY:Lot No. BL8565CC3BTR□□□ AD:Product Code XX: Output Voltage Code 25 26 27 28 29 30 31 32 33 34 35 36 37 Vout 3.8V 3.9V 4.0V 4.1V 4.2V 4.3V 4.4V 4.5V ADXXB YYBZZ Code 38 39 40 41 42 43 44 45 B:Package YY:Lot No. B:Fab Code ZZ:Data Code Product Classification Marking AD:Product Code XX: Output Voltage ADXXC C:Package YYBZZ YY:Lot No. B:Fab Code ZZ:Data Code YY:LOT NO. Z: The Year of manufacturing,”7” stands for year 2007,”8” stands for year 2008,and “ 0 ” stands for year 2010. Z: The week of manufacturing. ”A” stands for week 1,”Z” stands for week 26,” A ” stands for week 27,” Z ” stands for week 52. www.belling.com.cn A:Package B:Fab Code ZZ:Data Code Product Classification Marking MARKING DESCRIPTON AD: Product Code XX: Output Voltage Vout Code Vout 2.5V 2.6V 2.7V 1.5V 15 2.8V 1.6V 16 2.9V 1.7V 17 3.0V 1.8V 18 3.1V 1.9V 19 3.2V 2.0V 20 3.3V 2.1V 21 3.4V 2.2V 22 3.5V 2.3V 23 3.6V 2.4V 24 3.7V BL8565CC3ATR□□□ Vss Vin Vout 2 BL8565CC3CTR□□□ Ground Pin Supply Voltage Input Output Voltage BL8565 ABSOLUTE MAXIMUM RATING Parameter Value Max Input Voltage Operating Junction Temperature(Tj) Output Current Ambient Temperature(Ta) Power SOT-89-3 Dissipation Storage Temperature(Ts) Lead Temperature & Time 8V 125°C 500mA -40°C –85°C 500mW -40°C -150°C 260°C,10S Note: Exceed these limits to damage to the device. Exposure to absolute maximum rating conditions may affect device reliability. RECOMMENDED WORK CONDITIONS Item Min Input Voltage Range Ambient Temperature -40 Recommended Max. Unit 6 85 V °C ELECTRICAL CHARACTERISTICS （Test Conditions: Cin=1uF,Cout=3.3uF,TA=25°C, unless otherwise specified. ） BL8565, For Arbitrary Output Voltage Symbol Parameter Vin Input Voltage Conditions Min Typ Vout1 Vout Output Voltage Vin=Set Vout+1V 1mA≤Iout≤30mA Vout x0.98 Iout (Max.) Maximun Output Current Vin-Vout=1V 500 1 Vdrop Dropout Voltage,Vout≥2.8V ∆Vout ∆Vin ⋅ Vout Line Regulation ∆Vout / ∆Iout Load Regulation Iss Supply Current Supply Current (Srandby) Output Voltage Temperature Coefficiency Istandby ∆Vout ∆T ⋅ Vout www.belling.com.cn Max 6 Vout X1.02 Units V V mA Iout=100mA 50 80 mV Iout=300mA 160 220 mV Iout=40mA 2.8V≤Vin≤6V 0.05 0.2 %/V 30 50 mV 20 30 uA 0.1 1.0 uA Vin=Set Vout+1V 1mA≤Iout≤300mA Vin=Set Vout+1V Vin=Set Vout+1V Vce=GND Iout=30mA 3 ±100 ppm/°C BL8565 PSRR Ripple Rejection Ilim Short Current Limit CE Pull down Resistance Output Noise Rpd en F=100Hz, Ripple=0.5Vp-p Vin=Set Vout+1V Vout=0V 2.0 BW=10Hz~100kHz 70 dB 1000 mA 5.0 47 10.0 MΩ uVrms NOTE: Vdrop=Vin1-(Vout2*0.98) Vout2 is the output voltage when Vin=Vout1+1.0V and Iout=500mA. Vin1 is the input voltage at which the output voltage becomes 98% of Vout1 after gradually decreasing the input voltage. BLOCK DIAGRAM Explanation BL8565 series is a group of positive voltage output, low noise, low power consumption, low dropout voltage regulator. BL8565 can provide output value in the range of 1.5V~4.5V every 0.1V step. It also can be customized on command. BL8565 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. BL8565 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within±2%. www.belling.com.cn 4 BL8565 TYPICAL PERFORMANCE CHARACTERISTICS 1) Output Voltage vs. Output Current (with output short protection) 2) Output Voltage vs. Input Voltage Line Regulation Current limit Vs. Vout 3.5 3.313 3 3.3125 VOUT(V) Vout(V) 2.5 2 3.312 3.3115 1.5 3.311 1 3.3105 0.5 3 3.5 4 4.5 VIN(V) 5 5.5 6 0 0 500 1000 1500 Iload(mA) Iout=14(mA) 3) Dropout Voltage vs. Output Current 4) Ripple rejection vs. Frequency Dropout & Iout PSRR 80 180 160 70 Vout=3.3V 60 Vout=3.3V 120 50 PSRR(dB) Dropout(mV) 140 100 80 40 60 30 40 20 20 10 0 0 50 www.belling.com.cn 100 150 200 Iout(mA) 250 300 0 0.01 350 0.1 1 10 Freq(KHz) 5 100 1000 BL8565 5) Line transient response Cin=Cout=1uF Iout=25mA vout=3.3V 5v vin 5v 4v vin vout 4v vout 6) Load transient response Cin=Cout=1uF Vin=4.5v Vout=3.3V 50mA 50mA 1mA 1mA Output Current Output Current Output Voltage www.belling.com.cn Output Voltage 6 BL8565 PACKAGE LINE Package SOT-89-3 Devices per reel Package dimension： www.belling.com.cn 7 1000Pcs Unit mm
