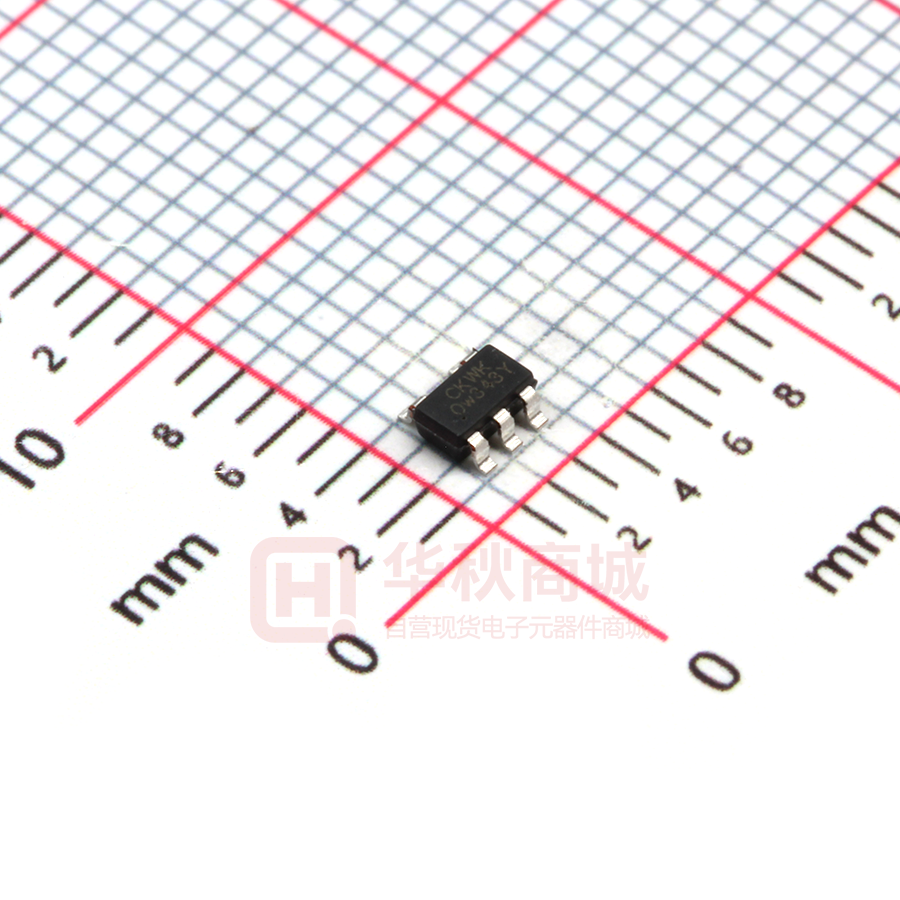

BL9162-330BARN

BL9162 300mA High PSRR, Ultra-low Noise, Ultra-Fast CMOS LDO Regulator FEATURES             Ultra-low Noise Ultra-Fast Transient Response High PSRR: -87dB @ 217Hz -83dB @ 1KHz -54dB @ 1MHz 0.1A Standby Current When Shutdown Low Dropout: 140mV@300mA (VOUT=2.8V) Wide Operating Voltage Ranges: 1.8V to 5.5V Current Limiting and Short Circuit Current Protection Thermal Shutdown Protection Only 1F Output Capacitor Required for Stability Fast output discharge Available in SOT23-5, SC70-5 and DFN1X1-4L Packages APPLICATIONS       Cellular and Smart Phones Cordless Telephones Camera and Machine Vision Modules Battery-Powered Equipment Laptop, Palmtops, Notebook Computers Hand-Held Instruments  PCMCIA Cards Portable Information Appliances DESCRIPTION The BL9162 is designed for portable applications with demanding performance and space requirements. The BL9162 performance is optimized for battery-powered systems to deliver ultra-low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9162 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9162 consumes only 0.1µA current in shutdown mode and has fast turn-on time (Typical 100µs). The other features include ultra- low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. TYPICAL APPLICATION www.belling.com.cn 1 V1.3 BL9162 300mA High PSRR, Ultra-low Noise, Ultra-Fast CMOS LDO Regulator ORDERING INFORMATION Package Marking SOT23-5 &SC70-5 DFN1×1-4L V: Output voltage Y: Data code—Year W: Data code—Week www.belling.com.cn 2 V1.3 BL9162 300mA High PSRR, Ultra-low Noise, Ultra-Fast CMOS LDO Regulator V Output Voltage SOT23-5 V Output Voltage SC70-5 & DFN1X1-4L SOT23-5 SC70-5 & DFN1X1-4L 1.0V B A 2.5V E P 1.05V B A 2.6V T Q 1.1V F B 2.8V G S 1.15V F B 3.0V I U 1.2V A C 3.3V K X 1.5V C F 3.6V Y Y 1.8V D I 4.0V Z Z Y 4 5 6 … 0 1 … Year 2014 2015 2016 … 2020 2021 … W A … Y Z a … y z Week 1 … 25 26 27 … 51 52 PIN CONFIGURATIONS SOT23-5 & SC70-5 DFN1X1-4L (TOP VIEW) (TOP VIEW) Thermal Resistance (Note 3) ӨJA ӨJC SOT23-5 250℃/W 130℃/W SC70-5 333℃/W 170℃/W Package www.belling.com.cn 3 V1.3 BL9162 300mA High PSRR, Ultra-low Noise, Ultra-Fast CMOS LDO Regulator Pin Description SOT23-5 & SC70-5 PIN NAME FUNCTION 1 VIN Power Input Voltage. 2 3 4 5 GND EN NC VOUT Ground. Chip Enable Pin, This pin has an internal pull-down resistor No Connection. Output Voltage. DFN1X1-4L PIN NAME FUNCTION 1 VOUT Output Voltage. 2 3 4 Exposed Pad GND EN VIN Ground. Chip Enable Pin, This pin has an internal pull-down resistor Power Input Voltage. The exposed pad should be connected to a large ground plane to maximize thermal performance. Block Diagram www.belling.com.cn 4 V1.3 BL9162 300mA High PSRR, Ultra-low Noise, Ultra-Fast CMOS LDO Regulator Absolute Maximum Rating (Note 1) Input Supply Voltage (VIN) EN Pin Input Voltage Output Voltages Output Current -0.3V to +6V -0.3V to VIN -0.3V to VIN+0.3V 300mA Maximum Junction Temperature 150°C (Note2) Operating Temperature Range -40°C to 85°C Storage Temperature Range -65°C to 125°C Lead Temperature (Soldering, 10s) 300°C Note 1: Absolute Maximum Ratings are those values beyond which the life of a device may be impaired. Note 2: The BL9162 is guaranteed to meet performance specifications from 0°C to 70°C. Specifications over the –40°C to 85°C operating temperature range are assured by design, characterization and correlation with statistical process controls. Note 3: Thermal Resistance is specified with approximately 1 square of 1 ozcopper. www.belling.com.cn 5 V1.3 BL9162 300mA High PSRR, Ultra-low Noise, Ultra-Fast CMOS LDO Regulator Electrical Characteristics (Note 4) (VIN=Vout +1V, EN=VIN, CIN=COUT=1F, TA=25℃,unless otherwise noted.) Parameter Symbol Input Voltage VIN Output Voltage Accuracy VOUT Current Limit ILIM Short Circuit Current ISHORT VOUT=0V 180 Quiescent Current IQ VEN>1.2V, IOUT=0mA 45 70 130 200 140 210 210 300 450 650 0.03 0.17 Dropout Voltage VDROP Conditions VIN=Vout+1V, IOUT=1mA RLOAD=1 ∆VLINE ∆VLOAD 1mA
