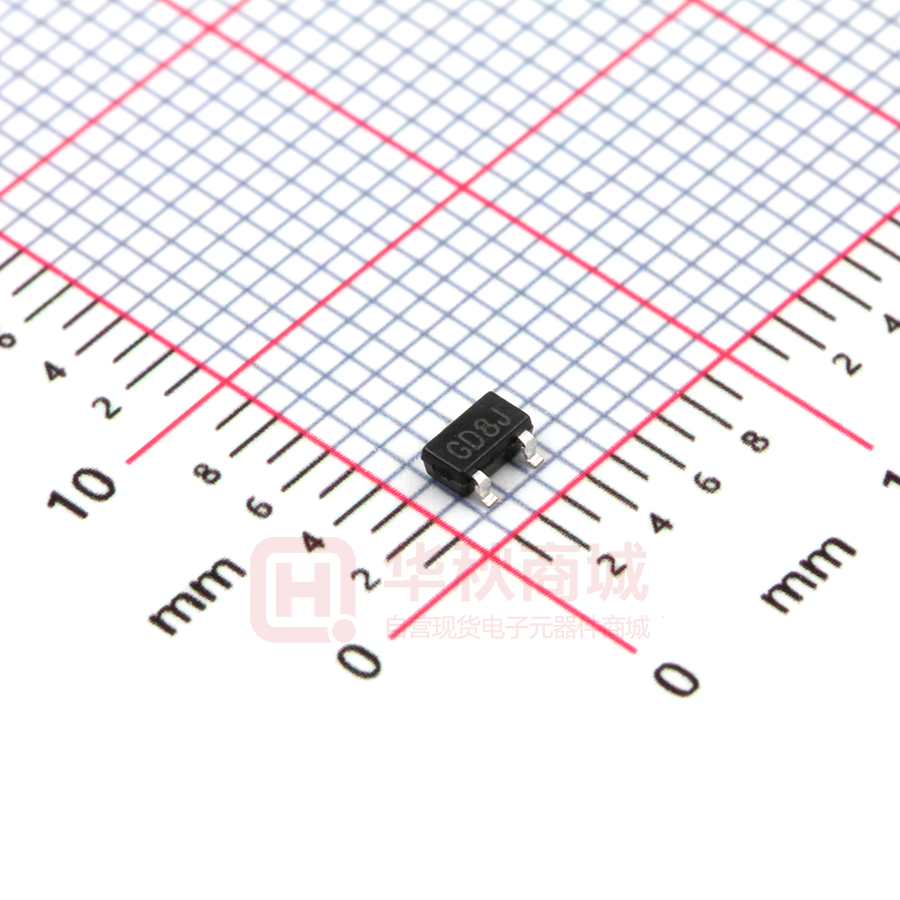

BL9195-18BPRT

BL9195 300mA 3-Pin, Ultra Fast, Ultra Low Dropout High PSRR CMOS LDO Regulator FEATURES DESCRIPTION Ultra-Fast Response in Line/Load The BL9195 is designed for portable RF and Transient wireless applications with demanding perfor Low Dropout:210mV@300mA Step-Down Converter mance and space requirements. The BL9195  Wide Operating Voltage Range:2V to 6V performance is optimized for battery-powered,  Wide Output Voltage Range:1.2V to 5V systems to deliver ultra low noise and low  Low Temperature Coefficient quiescent current. Regulator ground current  Current Limiting Protection increases only slightly in dropout, further  Thermal Shutdown Protection prolonging the battery life. The BL9195 also  Only 1F Output Capacitor Required for works with low-ESR ceramic capacitors, Stability reducing the amount of board space  High Power Supply Rejection Ratio necessary for power applications, critical in  Custom Voltage Available hand-held wireless devices. The other fea Available in 3-Lead SOT23, SOT89 and tures include ultra low dropout voltage, high SOT223 Package output accuracy, current limiting protection, and high ripple rejection ratio. Available in 3lead SOT23, SOT89 and SOT223 packages. APPLICATIONS         Cellular and Smart Phones Battery-Powered Equipment Laptop, Palmtops, Notebook Computers Hand-Held Instrument PCMCIA Cards MP3/MP4/MP5 Players Portable Information Appliances ORDERING INFORMATION TYPICAL APPLICATION BL9195 XX X X XXX BL9195 SOT23-3/SOT89-3/SOT223-3 Package: RT: SOT23-3 SRT: SOT89-3 TRT: SOT223-3 Output Voltage Accuracy: A: ±1% B: ±2% Output Voltage: 12: 1.2V 13:1.3V 15: 1.5V 18:1.8V 25:2.5V 27:2.7V 28:2.8V 285: 2.85V 30: 3.0V 32:3.2V 33:3.3V 50:5.0V CT: custom fixed output (50mV step) PPMIC BU BL9195 Rev 1.4 11/2012 VIN VIN C1 1uF BL9195 GND Features: P: Standard (default, lead free) C: Customized G: Green VOUT VOUT C2 1uF Application hints: Output capacitor (C2≥2.2uF) is recommended in BL9195-1.2V, BL9195-1.3V, BL9195-1.5V and BL9195-1.8V application to assure circuit stability. www.belling.com.cn Belling Proprietary Information. Unauthorized Photocopy and Duplication Prohibited ©2011 Belling All Rights Reserved 1 BL9195 300mA 3-Pin, Ultra Fast, Ultra Low Dropout High PSRR CMOS LDO Regulator Absolute Maximum Rating (Note 1) Input Supply Voltage (VIN) -0.3V to +6.5V Output Voltage -0.3V to VIN+0.3V Output Current 300mA Maximum Junction Temperature 125°C (Note2) Operating Temperature Range -40°C to 85°C Storage Temperature Range -65°C to 125°C Lead Temperature (Soldering, 10s) 300°C Step-Down Converter Package Information SOT23-3 TOP VIEW SOT89-3 TOP VIEW SOT223-3 TOP VIEW MARKING MARKING , VIN 3 MARKING 1 1 2 VOUT GND Part Number Top Mark Top Mark GAYW BL9195-1.3V GBYW BL9195-1.5V GCYW BL9195-1.8V GDYW BL9195-2.5V GEYW BL9195-2.7V GFYW BL9195-2.8V GGYW BL9195-2.85V GHYW BL9195-3.0V GIYW BL9195-3.2V GJYW BL9195-3.3V GKYW BL9195-5.0V GLYW 3 1 2 3 GND VOUT VIN Temp Range (Note4) (Note3) BL9195-1.2V 2 GND VIN VOUT BL9195 YWSS A BL9195 YWSS B BL9195 YWSS C BL9195 YWSS D BL9195 YWSS E BL9195 YWSS F BL9195 YWSS G BL9195 YWSS H BL9195 YWSS I BL9195 YWSS J BL9195 YWSS K BL9195 YWSS L -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C Thermal Resistance (Note 5): ӨJA 250C/W 160C/W 60C/W Package SOT23-3 SOT89-3 SOT223-3 ӨJC 130°C/W 45°C/W 20°C/W Note 1: Absolute Maximum Ratings are those values beyond which the life of a device may be impaired. Note 2: The BL9195 is guaranteed to meet performance specifications from 0°C to 70°C. Specifications over the –40°C to 85°C operating temperature range are assured by design, characterization and correlation with statistical process controls. NOTE3: Y: Year of wafer manufacturing W: Week of wafer manufacturing. Y 0 1 2 3 4 … Year 2010 2011 2012 2013 2014 …… W 01 PPMIC BU BL9195 Rev 1.4 11/2012 2 … 26 27 28 … 52 www.belling.com.cn Belling Proprietary Information. Unauthorized Photocopy and Duplication Prohibited ©2011 Belling All Rights Reserved 2 BL9195 300mA 3-Pin, Ultra Fast, Ultra Low Dropout High PSRR CMOS LDO Regulator Week A B … Z … a b z Note 4: Y: Year of assembly manufacturing W: Week of assembly manufacturing SS: Lot ID (the 7th and 8th number of Lot numbers) Y 0 1 2 3 4 … Year 2010 2011 2012 2013 2014 …… W Week 01 A … … 2 B 26 Z 27 Step-Down Converter … … 28 52 , Note 5: Thermal Resistance is specified with approximately 1 square of 1 oz copper. Pin Description PIN-NUMBER SOT223-3 SOT23-3 1 3 2 SOT89-3 1 2 3 NAME FUNCTION GND VIN VOUT Ground Power Input Voltage Output Voltage Block Diagram VIN VREF - Error Amplifier + VOUT Current Limit And Thermal Protection GND PPMIC BU BL9195 Rev 1.4 11/2012 www.belling.com.cn Belling Proprietary Information. Unauthorized Photocopy and Duplication Prohibited ©2011 Belling All Rights Reserved 3 BL9195 300mA 3-Pin, Ultra Fast, Ultra Low Dropout High PSRR CMOS LDO Regulator Electrical Characteristics (Note 6) (VIN=3.6V, CIN=COUT=1F, TA=25oC, unless otherwise noted.) Parameter Symbol Conditions Input Voltage VIN Output Voltage Accuracy VIN=3.6V, Step-Down VOUT (Note 7) IOUT=1mA Current Limit ILIM RLOAD=1 Quiescent Current IQ IOUT=0mA IOUT=200mA, VOUT=2.8V Dropout Voltage VDROP IOUT=300mA, VOUT=2.8V VIN=3.6V to 5.5V (Note 8) ΔVLINE Line Regulation IOUT=1mA (Note 9) ΔVLOAD 1mA maximum junction temperature of the die 25mΩ on the BL9195 output ensures (125°C) and TA is the maximum ambient stability. The BL9195 still works well with temperature. The junction to ambient theroutput capacitor of other types due to the mal resistance (θJA is layout dependent) for wide stable ESR range. Output capacitor of SOT-23-3 package is 250°C/W, SOT89-3 larger capacitance can reduce noise and package is 160°C/W, SOT-223-3 package improve load transient response, stability, is 60°C/W on standard JEDEC 51-3 and PSRR. The output capacitor should be thermal test board. The maximum power located not more than 0.5 inch from the dissipation at TA= 25°C can be calculated VOUT pin of the BL9195 and returned to a by following formula: clean analog ground. PD(MAX) = (125°C−25°C)/160 = 667mW Thermal Considerations (SOT89-3) Applications Information Thermal protection limits power dissipation in BL9195. When the operation junction temperature exceeds 165°C, the OTP circuit starts the thermal shutdown function turn the pass element off. The pass PPMIC BU BL9195 Rev 1.3 1/2011 PD(MAX) = (125°C−25°C)/250 = 400mW (SOT23-3) PD(MAX) = (125°C−25°C)/60 = 1666mW (SOT223-3) www.belling.com.cn Belling Proprietary Information. Unauthorized Photocopy and Duplication Prohibited ©2011 Belling All Rights Reserved 7 BL9195 300mA 3-Pin, Ultra Fast, Ultra Low Dropout High PSRR CMOS LDO Regulator The maximum power dissipation depends on operating ambient temperature for fixed TJ(MAX) and thermal resistance θJA. It is also useful to calculate the junction Step-Down of temperature of the BL9195 under a set of specific conditions. In this example let the Input voltage VIN=3.3V, the output current Io=300mA and the case temperature TA=40°C measured by a thermal couple during operation. The power dissipation for the VOUT=2.8V version of the BL9195 can be calculated as: Converter , PD = (3.3V−2.8V) ×300mA+3.6V×100uA =150mW And the junction temperature, TJ, can be calculated as follows: TJ=TA+PD×θJA=40°C+0.15W×250°C/W =40°C+37.5°C=77.5°C
