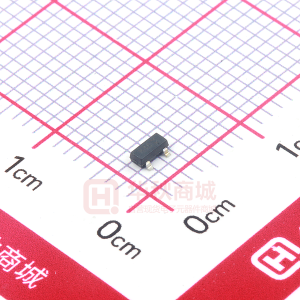

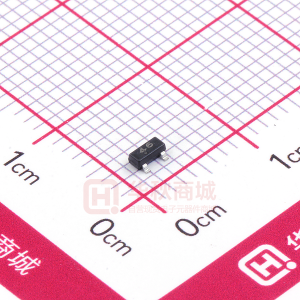

BAS40-06

BL Galaxy Electrical Surface mount schottky barrier diode FEATURES Low turn-on voltage. Fast switching. Production specification BAS40/-04/-05/-06 Pb Lead-free BAS40 BAS40-04 PN Junction guard ring for transient and ESD protection. APPLICATIONS High speed switching applications. Circuit protecting. Voltage clamping. SOT-23 BAS40-05 BAS40-06 ORDERING INFORMATION Type No. BAS40 BAS40-04 BAS40-05 BAS40-06 Marking 43 44 45 46 Package Code SOT-23 SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage Forward Continuous Current Power Dissipation Forward Surge Thermal Resistance, Junction to Ambient Air Operating Junction Temperature Range Storage Temperature Range Symbol VRRM VRWM VR IFM Pd IFSM RθjA Tj TSTG 200 350 600 357 -55 to +125 -65 to +150 mA mW mA ℃/W ℃ ℃ 40 V Limits Unit Document number: BL/SSSKC029 Rev.A www.galaxycn.com 1 BL Galaxy Electrical Surface mount schottky barrier diode ELECTRICAL CHARACTERISTICS @ Ta=25℃ Characteristic Reverse Breakdown Voltage Forward Voltage Reverse Leakage Current Junction Capacitance Reverse Recovery Time Symbol V(BR)R VF IR Cj trr Min 40 Typ 20 4.0 - Production specification BAS40/-04/-05/-06 unless otherwise specified MAX 380 1000 200 5.0 5.0 UNIT V mV nA pF ns Test Condition IRS= 10μA tP
