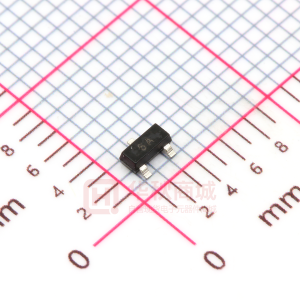

BC817-16

BL Galaxy Electrical NPN General Purpose Amplifier FEATURES For general AF application. Complementary PNP type available BC807. High collector current, high current gain. Low collector-emitter saturation voltage. Production specification BC817-16/-25/-40 Pb Lead-free APPLICATIONS General purpose medium power amplifier. Switching requiring collector currents up to 1.2mA. SOT-23 ORDERING INFORMATION Type No. BC817-16 BC817-25 BC817-40 Marking 6A 6B▪ 6C Package Code SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol VCBO VCEO VEBO IC PC Tj,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Dissipation Junction and Storage Temperature Value 50 45 5 500 300 -55to+150 Unit V V V mA mW ℃ Document number: BL/SSSTC042 Rev.A www.galaxycn.com 1 BL Galaxy Electrical NPN General Purpose Amplifier ELECTRICAL CHARACTERISTICS @ Ta=25℃ Parameter Symbol Production specification BC817-16/-25/-40 unless otherwise specified MIN MAX UNIT Test conditions Collector-base breakdown voltage V(BR)CBO IC=10μA IE=0 50 V Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Collector cut-off current Emitter cut-off current V(BR)CEO IC=10mA IB=0 45 V V(BR)EBO ICBO ICEO IEBO IE=1μA IC=0 VCB=45V IE=0 VCE=40V IBE(off)=0 VEB=4V IC=0 5 0.1 0.2 0.1 V μA μA μA DC current gain 817-16 817-25 817-40 hFE VCE=10V IC=150mA 100 160 250 250 400 600 Collector-emitter saturation voltage VCE(sat) IC=500mA IB=50mA 0.7 V Base-emitter saturation voltage VBE(sat) IC=500mA IB=50mA VCE=5V f=100MHz IC=10mA 1.2 V Transition frequency fT 100 MHz Document number: BL/SSSTC042 Rev.A www.galaxycn.com 2 BL Galaxy Electrical NPN General Purpose Amplifier Production specification BC817-16/-25/-40 TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Document number: BL/SSSTC042 Rev.A www.galaxycn.com 3 BL Galaxy Electrical NPN General Purpose Amplifier PACKAGE OUTLINE Plastic surface mounted package A E Production specification BC817-16/-25/-40 SOT-23 SOT-23 Dim A B C D Min 2.85 1.25 0.37 0.35 1.85 0.02 2.35 Max 2.95 1.35 0.43 0.48 1.95 0.1 2.45 K B 1.0Typical D G J E G H H C J K 0.1Typical All Dimensions in mm SOLDERING FOOTPRINT Unit：mm PACKAGE Device INFORMATION Package SOT-23 Shipping 3000/Tape&Reel BC817-16/-25/-40 Document number: BL/SSSTC042 Rev.A www.galaxycn.com 4
