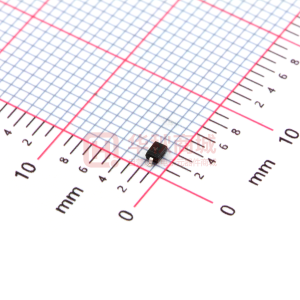

RB501V-40

BL Galaxy FEATURES Electrical Production specification Schottky Barrier Diode High current rectifier schottky diode. Low voltage;Low inductance. For power supply. RB501V-40 Pb Lead-free APPLICATIONS High frequency rectification. SOD-323 ORDERING INFORMATION Type No. RB501V-40 Marking 4 Package Code SOD-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Peak reverse voltage DC reverse voltage Mean rectifying current Peak forward surge current Junction temperature Storage temperature Symbol VRM VR IO IFSM Tj Tstg Limits 45 40 0.1 1 125 -55~+125 Unit V V A A ℃ ℃ unless otherwise specified Max. 0.55 0.34 30 6 Unit V μA pF Conditions IF=100mA IF=10mA VR=10v VR=10V,f=1MHz ELECTRICAL CHARACTERISTICS @ Ta=25℃ Parameter Forward voltage Reverse current Capacitance between terminals Symbol VF IR CT Min. Typ. Document number: BL/SSSKB021 Rev.A www.galaxycn.com 1 BL Galaxy Electrical Production specification Schottky Barrier Diode PACKAGE OUTLINE Plastic surface mounted package RB501V-40 SOD-323 SOD-323 K B C Dim A B Min 1.275 1.675 Max 1.325 1.725 D A C D E H 0.9 Typical 0.25 0.27 0.02 0.35 0.37 0.1 J E H J K 0.1 Typical 2.6 2.7 All Dimensions in mm SOLDERING FOOTPRINT Unit : mm PACKAGE Device RB551V-30 INFORMATION Package SOD-323 Shipping 3000/Tape&Reel Document number: BL/SSSKB021 Rev.A www.galaxycn.com 2
