1110-820K-RC

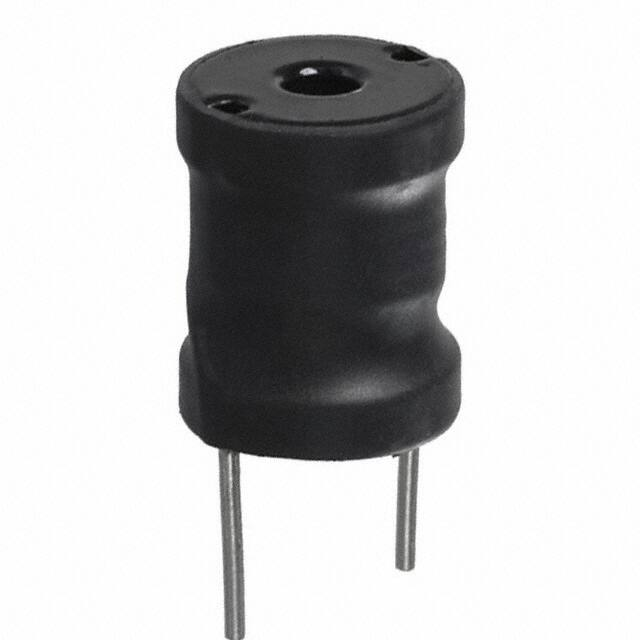

T PL IA N † Ro HS CO M High Current Chokes Special Features • Very high current capacity • Low DCR • Epoxy coated ferrite bobbin core • VW-1 rated shrink tubing to cover winding • Self-leaded • Fixed lead spacing • Center hole for mechanical mounting • Dielectric withstanding voltage: 2500 Vrms terminal to shrink tube cover; 1000 Vrms terminal to core • Operating temperature -55 to +105 °C • Magnetic Wire: Polyester, 155 °C rated Notes * Rated current to cause 50 °C max. temperature rise and 5 % max. inductance drop † RoHS Directive 2002/95/EC Jan 27 2003 including Annex. 0.66 Max. 0.84 Max. 0.5 Lead tinned to within 1/8" of body Part Number 1110-1R0M-RC 1110-1R2M-RC 1110-1R5M-RC 1110-1R8M-RC 1110-2R2M-RC 1110-2R7M-RC 1110-3R3M-RC 1110-3R9M-RC 1110-4R7M-RC 1110-5R6M-RC 1110-6R8M-RC 1110-8R2M-RC 1110-100K-RC 1110-120K-RC 1110-150K-RC 1110-180K-RC 1110-220K-RC 1110-270K-RC 1110-330K-RC 1110-390K-RC 1110-470K-RC 1110-560K-RC 1110-680K-RC 1110-820K-RC 1110-101K-RC 1110-121K-RC 1110-151K-RC 1110-181K-RC 1110-221K-RC 1110-271K-RC 1110-331K-RC 1110-391K-RC 1110-471K-RC 1110-561K-RC L (μH) ±20 % @ 1 KHz 1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 ± 10 % 10 12 15 18 22 27 33 39 47 56 68 82 100 120 150 180 220 270 330 390 470 560 1110 Series DCR Ω I, dc* Max. (A) Dim. C Approx. Dim. D Nom. 0.003 0.003 0.004 0.004 0.005 0.005 0.005 0.006 0.007 0.007 0.008 0.009 9 9 9 9 9 9 9 9 9 9 9 9 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.049 0.049 0.049 0.049 0.049 0.049 0.049 0.049 0.049 0.049 0.049 0.049 0.010 0.011 0.015 0.016 0.020 0.030 0.040 0.046 0.062 0.069 0.077 0.083 0.095 0.127 0.181 0.217 0.240 0.300 0.336 0.460 0.636 0.696 9 9 7.2 7.2 5.5 4.5 4 4 2.8 2.8 2.8 2.8 2.8 2 1.6 1.6 1.6 1.6 1.3 1 0.8 0.8 0.55 0.55 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.47 0.47 0.47 0.47 0.47 0.049 0.049 0.043 0.043 0.043 0.039 0.037 0.035 0.032 0.032 0.032 0.032 0.030 0.029 0.029 0.025 0.025 0.020 0.020 0.020 0.020 0.020 “-RC” suffix indicates RoHS compliance. C D (Dia) 0.153 Min. Note: Major diameter of #6 screw = 0.138 ” Dimensions: Inches Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf REV. 12/16 www.bourns.com 22.1 Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
