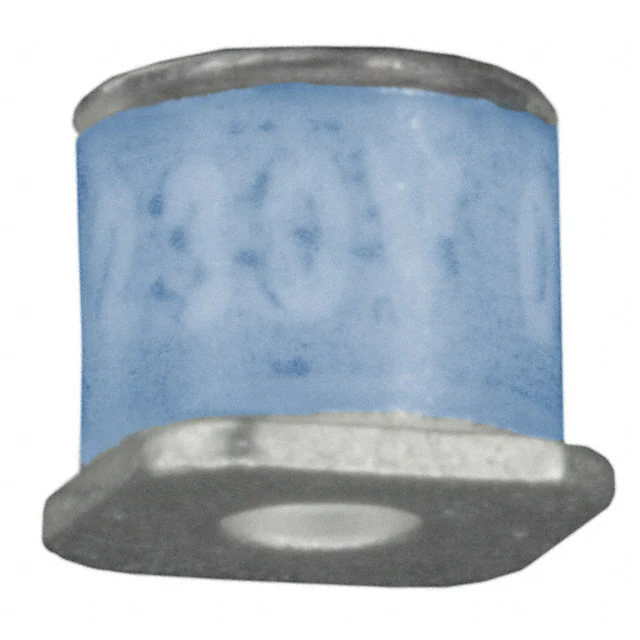

Features ■ Leadless, surface mount for economical ■ ■ ■ ■ assembly Compact mini-size High surge current rating Low capacitance and insertion loss Stable breakdown throughout life UL Recognized ■ ■ RoHS compliant* version available Check out the all new GDT25 Series for enhanced next-generation surge protection performance! 2035-xx-SM Precision Gas Discharge Tube Surge Protector Bourns now offers a surface mount (SM) 2-electrode GDT surge protection device. The high quality and outstanding features of the Bourns® miniature 2035 Series GDT continues in this new SM version for ‘pick and place’ manufacturing techniques. The 2035-xx-SM Series is ideal for high-density applications such as PCBs for telecommunications, commercial and industrial applications. Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY CONTACT Characteristics Test Methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards. Characteristic DC Sparkover ±15 % (±20 % for Model 2035-09) @ 100 V/s Impulse Sparkover (1) 100 V/μs 1000 V/μs Characteristic DC Sparkover ±15 % @ 100 V/s (-12 %, +15 % for Model 2035-60) @ 100 V/s Impulse Sparkover (1) 100 V/μs 1000 V/μs (1) Model No. 2035-09 2035-15 2035-20 2035-23 2035-25 2035-30 90 V 150 V 200 V 230 V 250 V 300V 350 V 525 V 400 V 550 V 425 V 575 V 450 V 600 V 475 V 625 V 525 V 650 V 2035-35 2035-40 2035-42 2035-47 2035-60 350 V 400 V 420 V 470 V 600 V 600 V 750 V 650 V 800 V 675 V 850 V 750 V 950 V 950 V 1100 V Model No. Impulse Sparkover voltage is defined as typical values of distribution. Insulation Resistance (IR) ..................100 V (50 V for Model 2035-09) ............................................. > 1010 Ω Glow Voltage ......................................10 mA ..................................................................................... ~ 70 V Arc Voltage .........................................>1 A ........................................................................................ ~ 10 V Glow-Arc Transition Current ............................................................................................................... < 0.5 A Capacitance........................................1 MHz ..................................................................................... < 1 pF DC Holdover Voltage (2) .....................>135 V, (52 V for Model 2035-09, .......................................... < 150 ms 80 V for Model 2035-15) Impulse Discharge Current .................10000 A, 8/20 μs (3) ................................................................. 1 operation minimum 5000 A, 8/20 μs ...................................................................... > 10 operations 1000 A, 10/350 μs .................................................................. 1 operation 100 A, 10/1000 μs ................................................................. > 300 operations 100 A, 10/700 μs ................................................................... > 500 operations Alternating Discharge Current ............20 Arms, 11 cycles (3) .............................................................. 1 operation minimum 5 Arms, 1 s ............................................................................. > 10 operations Operating Temperature....................................................................................................................... -55 to +85 °C Climatic Category (IEC 60068-1)........................................................................................................ 40/90/21 Notes: • UL Recognized component, UL File E153537 • Surface Mount (SM) parts may show a temporary increase in DCBD after the solder reflow process. Most devices will recover within 24 hours time. It should be noted that there is no quality defect nor change in protection levels during the temporary change in DCBD. • Sparkover limits after life ±20 % (-25 %, +30 % for Model 2035-09, 2035-60), IR >108. • At delivery AQL 0.65 Level II, DIN ISO 2859. • Bourns recommends reflowing surface mount devices per IPC/JEDEC J-STD-020 rev D. (2) Network applied. (3) Tube may exceed ±20 % but will continue to protect without venting. *RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 2035-xx-SM Precision Gas Discharge Tube Surge Protector Product Dimensions Packaging Specifications 4.4 ± 0.2 (.173 ± .008) 5.0 ± 0.25 (.197 ± .010) 0.51 ± 0.1 (.020 ± .004) 0.33 ± 0.1 (.013 ± .004) Model 2035-SM 2035-SM-RP 2035-SM-RP3 2035-SM-RP4 Standard Packaging Quantity Bulk(Bag) Tray Box Reel 250 1000 1500 1000 1000 -RP Reel is 13 inches in diameter and 3/4 inch wide. 4.00 (.158) Recommended Pad Layout 1.75 (.069) 2.00 (.079) 4.0 (.156) 16.0 (.63) 5.6 (.220) 7.5 (.30) 8.00 (.315) 1.3 (.050) DIMENSIONS: MM (INCHES) -RP3 Reel is 13 inches in diameter and 11/16 inch wide. 12.00 (.473) 4.00 (.158) How to Order 2035 - xx - SM - RP LF Model Number Designator 12.00 ± 1.27 (.473 ± .050) Voltage Surface Mount Packaging Options Blank = Bulk Packaging (Standard) RP = Reelpack (Optional) RP3 = Reelpack (Optional) RP4 = Reelpack (Optional) RoHS Compliant Option Blank = Standard Product LF = RoHS Compliant Product -RP4 Reel is 13 inches in diameter and 11/16 inch wide. 1.99 (.078) 12.00 (.473) 4.00 (.158) 1.75 ± 2.5 (.069 ± .100) 12.00 ± 1.27 (.473 ± .050) 5.50 ± 1.27 (.217 ± .050) Check out the all new GDT25 Series for enhanced next-generation surge protection performance! DIMENSIONS: MM (INCHES) Unless otherwise specified, tolerances in decimals are .X ± 0.3, .XX ± 0.15 for lengths in millimeters and ±1 ° for degrees. REV. P 10/21 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
