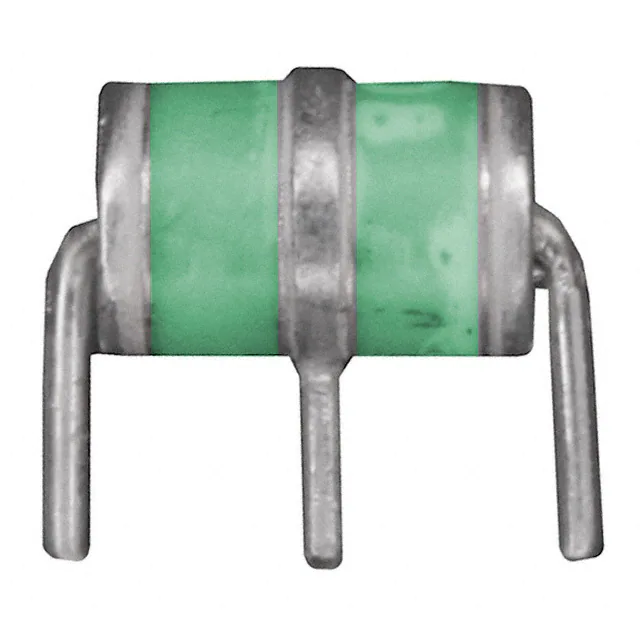

2036-20-B2LF

Features Applications ■ Balanced Mini-TRIGARD™ ■ Telecommunications ■ 5 mm diameter, 7.5 mm long ■ Industrial electronics ■ UL Recognized ■ Commercial electronics ■ RoHS compliant* versions available ■ Consumer electronics 2036 Series - Miniature 3-Pole Gas Discharge Tube Characteristics Additional Information Test Methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards. Characteristic DC Sparkover ±20 % @ 100 V/s Impulse Sparkover (1) 100 V/μs 1000 V/μs Characteristic DC Sparkover ±20 % @ 100 V/s Impulse Sparkover (1) 100 V/μs 1000 V/μs (1) Click these links for more information: Model No. 2036-07 2036-09 2036-15 2036-20 2036-23 2036-25 75 V 90 V 150 V 200 V 230 V 250V 250 V 525 V 250 V 550 V 350 V 500 V 425 V 575 V 450 V 600 V 475 V 625 V 2036-30 2036-35 2036-40 2036-42 2036-47 2036-60 300 V 350 V 400 V 420 V 470 V 600 V 500 V 650 V 600 V 750 V 650 V 825 V 675 V 850 V 750 V 950 V 850 V 1100 V PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY CONTACT Model No. Impulse Sparkover voltage is defined as typical values of distribution. Impulse Transverse Delay ..................1000 V/μs ............................................................................... < 75 ns Insulation Resistance .........................100 V (50 V for Model 2036–07 & 2036-09)........................... > 1010 Ω Glow Voltage ......................................10 mA ..................................................................................... ~ 70 V Arc Voltage .........................................1 A .......................................................................................... ~ 10 V Glow-Arc Transition Current ............................................................................................................... < 0.5 A Capacitance........................................1 MHz ..................................................................................... < 2 pF DC Holdover Voltage(2) .......................135 V, (52 V for Model 2036-07 & 2036-09, ........................... < 150 ms 80 V for Model 2036-15) Impulse Discharge Current .................20000 A, 8/20 μs (3) ................................................................. 1 operation minimum 10000 A, 8/20 μs .................................................................... > 10 operations 2000 A, 10/350 μs .................................................................. 1 operation 200 A, 10/1000 μs ................................................................. > 300 operations 200 A, 10/700 μs ................................................................... > 500 operations Alternating Discharge Current ............20 Arms, 11 cycles (3) .............................................................. 1 operation 10 Arms, 1 s ........................................................................... > 10 operations Storage Temperature .......................................................................................................................... -55 to +105 °C Operating Temperature....................................................................................................................... -55 to +105 °C Climatic Category (IEC 60068-1)........................................................................................................ 55/105/21 Moisture Sensitivity Level .................................................................................................................. 1 ESD Classification (HBM).................................................................................................................. 6 An optional Switch-Grade Fail-Short device is available. The optional Fail-Short assembly will activate at a temperature of 215 °C – 217 °C to provide a high conductive path to ground in case of a thermal overload. GDTs equipped with the optional Fail-Short device should be soldered either manually at a temperature that is below the activation temperature of the Fail-Short mechanism, or using a selective soldering process that does not exceed 210 °C. Notes: • UL recognized component, UL File E153537. • No model number marking on tube; date code and voltage only: month year digits, xxxV (e.g. 0209 400V). • The rated discharge current for Mini-TRIGARD™ Gas Discharge Tubes is the total current equally divided between each line to ground. • Sparkover limits after life ±25 %, IR >108Ω (-25 %,+30 % for Model 2036-07, 2036-09 and 2036-60). • Operating characteristics per RUS PE-80 and Telcordia GR 1361 available, contact factory. • Line to Line voltage is approximately 1.8 to 2 times the stated Line to Ground breakdown voltage. • At delivery AQL 0.65 Level II, DIN ISO 2859. (2) (3) Network applied. DC Sparkover may exceed ±25 % after discharge, but will continue to protect without venting. WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 2036 Series - Miniature 3-Pole Gas Discharge Tube Product Dimensions 2036-XX-A 2036-XX-B 5.0 ± 0.3 DIA. (.197 ± .012) 26.9 ± 0.4 (1.060 ± .016) 7.5 ± 0.3 (.295 ± .012) 0.9 ± 0.3 (.035 ± .012) 0.8 ± 0.08 DIA. (.031 ± .003) 4.0 ± 0.4 (.157 ± .016) 0.8 ± 0.08 DIA. (.031 ± .003) 2036-XX-B2 FAIL-SHORT CONFIGURATION 2036-XX-B2F SHOWN 4.0 ± 0.4 (.157 ± .016) 0.8 ± 0.08 DIA. (.031 ± .003) 5.3 ± 0.3 (.209 ± .012) 4.4 ± 0.3 (.173 ± .012) 4.4 ± 0.3 (.173 ± .012) 2036-XX-B3 6.2 ± 0.3 (.244 ± .012) 0.8 ± 0.08 DIA. (.031 ± .003) 4.0 ± 0.4 (.157 ± .016) 0.8 ± 0.08 DIA. (.031 ± .003) 3.8 ± 0.3 (.150 ± .012) DIMENSIONS: 3.8 ± 0.3 (.150 ± .012) MM (INCHES) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 2036 Series - Miniature 3-Pole Gas Discharge Tube Switch-Grade Fail-Short Device Shorting Curve 2036-XX-XF How to Order 2036 - xx - x (n) F LF 10.0 Model Number Designator Current (A) (ELTGS) 5.0 Voltage (Divided by 10) 07 = 75 V 30 = 300 V 09 = 90 V 35 = 350 V 15 = 150 V 40 = 400 V 20 = 200 V 42 = 420 V 23 = 230 V 47 = 470 V 25 = 250 V 60 = 600 V 1.0 Leads A = None B = 0.8 mm 0.5 Lead Shape (See Product Dimension Drawings) Fail-Short Option Blank = Standard Product F = With Fail-Short Mechanism 0.1 RoHS Compliant Option Blank = Standard Product LF = RoHS Compliant Product 0.1 1 10 100 Seconds ELTGS = Each Line to Ground Simultaneously NOTE: When using a GDT failsafe device, it is imperative that all components associated and connected to the GDT with failsafe be tested in their respective completely integrated environment (finished product) to assure proper operation. Packaging Specifications Standard Packaging Quantity Model Bulk (Bag) Tray Box 2036-XX-A 250 1000 2036-XX-B 100 700 2036-XX-B2 100 1000 2036-XX-B3 100 1000 2036-XX-B2F 100 1000 Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com REV. A 02/21 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
