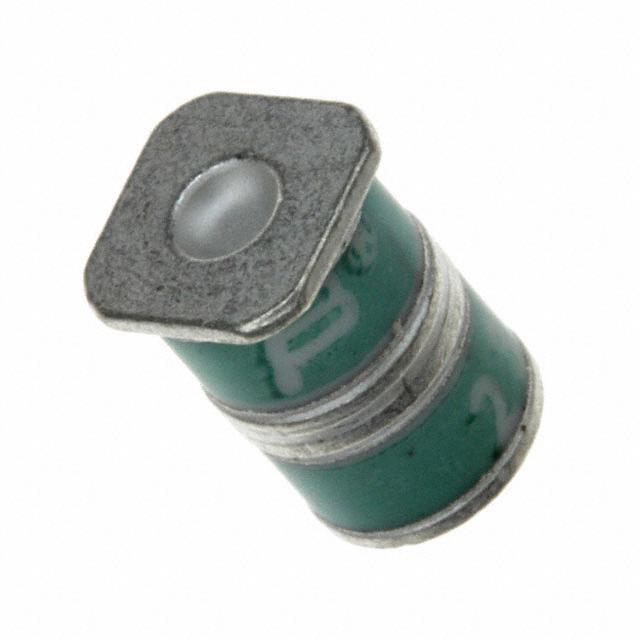

2038-110-SM-RPLF

Driver Side Protection Solution Products Objective VDSL provides fast data transmission, usually over a twisted pair of copper wires. This solution protects these ports against surge and power contact threats. 2038-110-SM-RPLF VDSL Compliance ITU-T Basic and Enhanced GR-1089-CORE Alternate Recommendations Solution 1 GDT: 2038-110-SM-RPLF 1 Thyristor: TISP4P015L1NR-S 1 Diode Bridge: CD143A-SR70 Other PortNote® Solutions: • VDSL: Line Side Protection Variations of this circuit are available depending on specific design constraints; contact your local Bourns technical representative for more information. Benefit TISP4P015L1NR-S This solution provides protection on the driver side without impairing the VDSL 17 MHz signal. CD143A-SR70 2038-110-SM-RPLF VDSL Driver Design Kit CD143A-SR70 TISP4P015L1NR-S PN-DESIGNKIT-36 The schematic above illustrates the application protection and does not constitute the complete circuit design. Customers should verify actual device performance in their specific applications. Americas: Europe: Tel +41-(0)41 768 55 55 Fax +41-(0)41 768 55 10 Tel +1-951 781-5500 Fax +1-951 781-5700 Tel +886-2 256 241 17 Fax +886-2 256 241 16 Bourns® PortNote® solutions provide protection recommendations for typical port threats. For more information, go to: Asia-Pacific: www.bourns.com COPYRIGHT© 2011 • BOURNS, INC. • 10/11 • e/CPK1160 • “PortNote” is a registered service mark of Bourns, Inc. “Bourns” is a registered trademark of Bourns, Inc. in the U.S. and other countries. or email: protection@bourns.com
