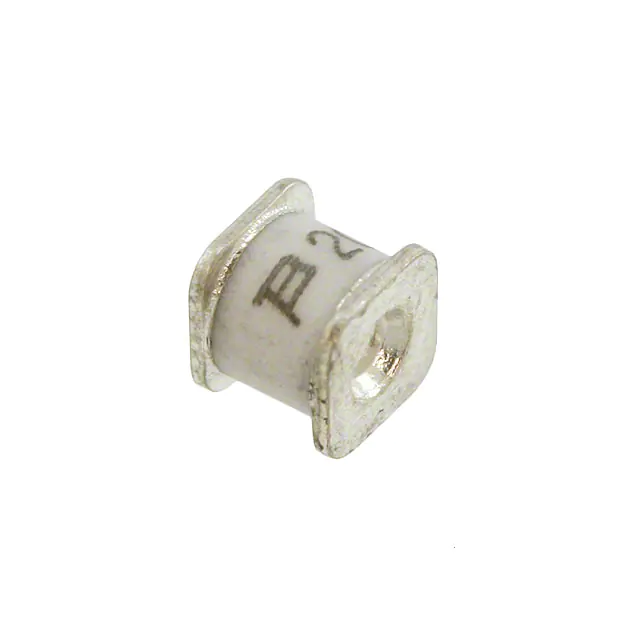

2087-100-SM-RPLF

Features Applications ■ Mini-compact size: 4 mm diameter, ■ Industrial equipment/electronics ■ ■ ■ ■ ■ 4.2 mm length Surface mount device High voltage range High insulation resistance RoHS compliant* UL Recognized ■ Telecommunications electronics ■ Consumer electronics 2087 Series High Voltage Mini 2-Electrode Gas Discharge Tube Characteristics Test Methods per ITU-T (CCITT) K.12 and IEC 61643-311. Characteristic DC Sparkover ±20 % @ 100 V/s Impulse Sparkover (1) 100 V/μs 1000 V/μs (1) Model No. 2087-80 2087-100 2087-120 2087-150 2087-180 2087-200 800 V 1000 V 1200 V 1500 V 1800 V 2000 V < 1300 V < 1400 V < 1500 V < 1600 V < 1700 V < 1800 V < 2000 V < 2100 V < 2500 V < 2600 V < 2700 V < 2800 V Impulse Sparkover voltage is defined as typical values of distribution. Insulation Resistance (IR) (2) .......... 250/500 Vdc ...........................> 1 GΩ Glow Voltage ................................. 10 mA .....................................~ 60 V Arc Voltage .................................... 1 A...........................................~ 15 V Glow-Arc Transition Current ...........................................................< 1 A Capacitance................................... 1 MHz .....................................< 0.5 pF Impulse Discharge Current ............ 3,000 A, 8/20 μs......................1 operation ....................................................... 2,000 A, 8/20 μs......................10 operations Alternating Discharge Current ....... 2 Arms, 50 Hz, 1 second ........1 operation min. ....................................................... 4 Arms, 50 Hz, 9 cycles ..........1 operation min. Impulse Life ................................... 100 A, 10/1000 μs...................> 100 operations Operating Temperature...................................................................-30 to +85 °C Storage Temperature ......................................................................-40 to +115 °C Climatic Category (IEC 60068-1)....................................................40 / 90 / 21 Additional Information Click these links for more information: PRODUCT TECHNICAL INVENTORY SAMPLES SELECTOR LIBRARY CONTACT Notes: (2) Insulation Resistance measured at 500 V for GDTs with >1000 V DCBD. • UL Recognized component: UL File E313168. • At delivery AQL 0.65 Level II, DIN ISO 2859. • Bourns recommends reflowing surface mount devices per IPC/JEDEC J-STD-020 rev D. Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 2087 Series High Voltage Mini 2-Electrode Gas Discharge Tube Surge Protector Product Dimensions Recommended Pad Layout 4.0 ± 0.2 (.157 ± .008) 3.5 (.138) 4.2 ± 0.2 (.165 ± .008) 4.2 ± 0.2 (.165 ± .008) 5.0 (.197) 1.3 (.051) 0.5 ± 0.1 (.020 ± .004) DIMENSIONS: MM (INCHES) DIMENSIONS: Packaging Specifications MM (INCHES) How to Order The Model 2087-xxx-SM ships standard reelpack (-RP), 900 pieces per reel, 2,700 pieces per box. Reel is 13 inches in diameter. 4.0 ± 0.1 (.157 ± .004) 1.75 ± 0.1 (.069 ± .004) DIA. 1.55 ± 0.05 (.061 ± .002) 4.6 ± 0.1 (.181 ± .004) 16.0 ± 0.3 (.630 ± .012) 7.5 ± 0.1 (.295 ± .004) Model Number Designator Voltage (Divided by 10) 80 = 800 V 100 = 1000 V 120 = 1200 V 150 = 1500 V 180 = 1800 V 200 = 2000 V Surface Mount Packaging RP = Reelpack (900 pcs./13 ˝ reel) RoHS Compliancy LF = RoHS Compliant Product 0.5 ± 0.05 (.020 ± .002) 12.0 ± 0.1 (.472 ± .004) DIMENSIONS: 2087 - xxx - SM - RP LF MM (INCHES) REV. D 09/19 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
