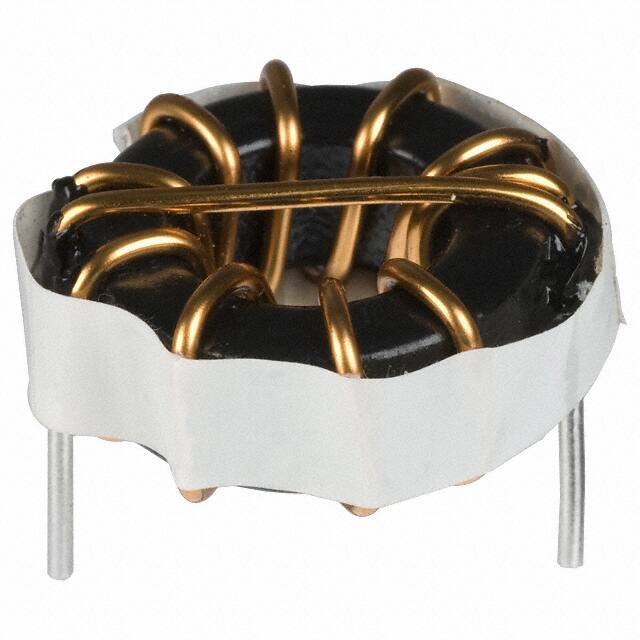

物料型号:2200LL系列,包括2200LL-1RO-RC、2200LL-1R8-RC、2200LL-2R7-RC等不同型号。
器件简介:这是一系列低核心损耗、高电流容量的环形电感器,符合RoHS标准,具有低磁辐射和水平或垂直安装选项,工作温度范围为-55至+125°C。
引脚分配:文档中没有提供具体的引脚分配信息,但通常这类电感器会有至少两个引脚用于连接电路。
参数特性:包括电感值(L)、直流电流(Idc)、额定电感值(L(H) ±20% @Irated)、直流电阻(DCR)、尺寸(Dim. A, B, C)等。
功能详解:适用于开关电源、DC/DC转换器、输出扼流圈、EMI滤波器等应用。
应用信息:适用于开关电源、DC/DC转换器、输出扼流圈、EMI滤波器等。
封装信息:提供了不同型号的尺寸信息,包括Dim. A Nom.、Dim. B Nom.、Dim. C Nom.,以及垂直和水平安装的尺寸。
