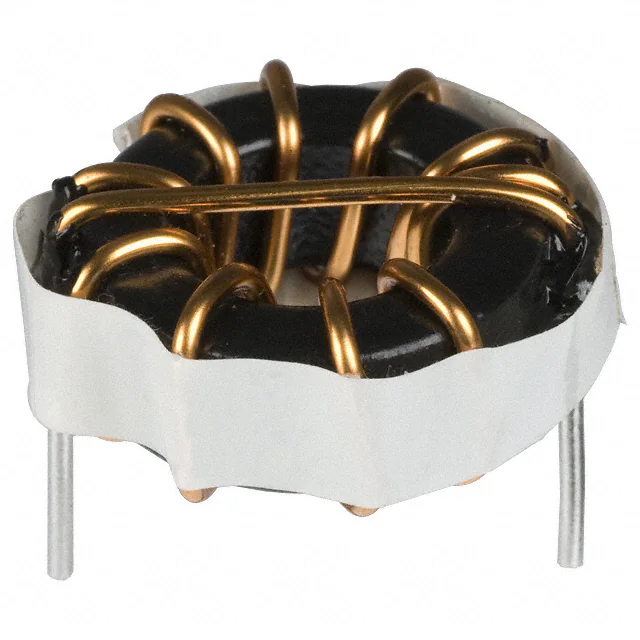

2200LL-470-H-RC

NT IA PL † Ro HS CO M Low Core Loss, High Current Toroid Inductors Special Features • Low core loss • Low magnetic radiation • High current capacity • Horizontal or vertical mount available • Operating temperature: -55 to +125 °C L (µH) ± 20 % @ 1 KHz Part Number ** 2200LL-1R0-RC 2200LL-1R8-RC 2200LL-2R7-RC 2200LL-3R9-RC 2200LL-4R7-RC 2200LL-6R8-RC 2200LL-8R2-RC Typical Applications • Switch mode power supplies • DC/DC converters • Output chokes • EMI filters 2200LL-100-RC 2200LL-120-RC 2200LL-150-RC 2200LL-180-RC 2200LL-220-RC 2200LL-270-RC 2200LL-330-RC 2200LL-390-RC 2200LL-470-RC 2200LL-560-RC 2200LL-680-RC 2200LL-820-RC 2200LL-101-RC 2200LL-121-RC 2200LL-151-RC 2200LL-181-RC 2200LL-221-RC 2200LL-271-RC 2200LL-331-RC 2200LL-391-RC 2200LL-471-RC 2200LL-561-RC 2200LL-681-RC 2200LL-821-RC 2200LL-102-RC Notes * Rated Idc causes a 30 °C temperature rise ** Insert -H or -V for mounting style before -RC Example: 2200LL-1R0-V-RC † RoHS Directive 2002/95/EC Jan 27 2003 including Annex. 1.0 1.8 2.7 3.9 4.7 6.8 8.2 ± 15 % 10 12 15 18 22 27 33 39 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 2200LL Series L (µH) DCR Idc* ±20 % (Ω) (A) @ I rated Max. Dim. A Nom. Dim. B Nom. Dim. C Nom. 26.1 22.6 20.3 18.5 17.1 16.0 15.1 0.002 0.002 0.003 0.004 0.004 0.005 0.005 0.47 0.47 0.47 0.47 0.47 0.47 0.47 1.05 1.05 1.05 1.05 1.05 1.05 1.05 0.053 0.053 0.053 0.053 0.053 0.053 0.053 0.006 0.006 0.007 0.007 0.008 0.009 0.010 0.011 0.012 0.013 0.022 0.024 0.027 0.047 0.052 0.057 0.063 0.070 0.077 0.084 0.092 0.101 0.176 0.194 0.216 0.47 0.47 0.47 0.47 0.47 0.47 0.47 0.47 0.47 0.47 0.45 0.45 0.45 0.43 0.43 0.43 0.43 0.43 0.43 0.43 0.43 0.43 0.47 0.47 0.47 1.05 1.05 1.05 1.05 1.05 1.05 1.05 1.05 1.05 1.05 1.03 1.03 1.03 1.01 1.01 1.01 1.01 1.01 1.01 1.01 1.01 1.01 0.99 0.99 0.99 0.053 0.053 0.053 0.053 0.053 0.053 0.053 0.053 0.053 0.053 0.042 0.042 0.042 0.034 0.034 0.034 0.034 0.034 0.034 0.034 0.034 0.034 0.027 0.027 0.027 0.8 1.4 1.9 2.7 3.1 4.4 5.1 ± 15 % 6.0 6.9 8.3 9.7 11.5 13.5 15.7 18.1 20.9 23.9 33.9 39.0 45.6 63.4 76.0 88.5 103.1 121.1 141.9 161.2 185.7 212.0 307.6 355.5 412.5 14.3 14.2 13.6 13.1 12.6 11.8 11.1 10.8 10.3 9.8 7.6 7.1 6.8 5.1 4.9 4.7 4.4 4.2 4.0 3.8 3.7 3.5 2.7 2.5 2.4 “-RC” suffix indicates RoHS compliance. Tin lead to coil 0.55 Max. 0.55 Max. 1.10 Max. C 1.10 Max. B 0.50 C Tin lead to coil 0.50 A Horizontal Vertical Dimensions: Inches Tel. (877) 426-8767 • Fax (951) 781-5006 23.6 www.bourns.com REV. 06/07
