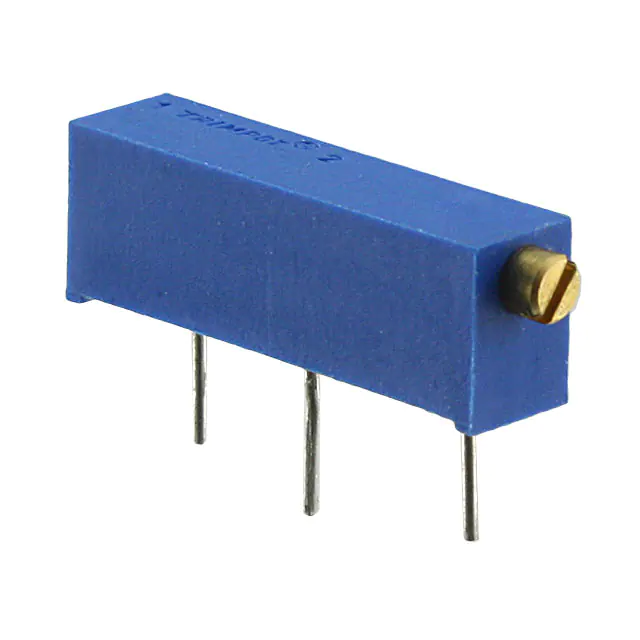

3006P-1-101

Features n 3/4 ˝ Rectangular / Multiturn / Cermet / Industrial / Sealed n Low PC board profile - only 1/4 ˝ high n Panel mount option available n Transparent housing available, can be set visually without hook-up and instrumentation (“P” style only) Electrical Characteristics Standard Resistance Range .................................10 to 5 megohms (see standard resistance table) Resistance Tolerance............ ±10 % std. (tighter tolerance available) Absolute Minimum Resistance ......................... 1.0 % or 2 ohms max. (whichever is greater) Contact Resistance Variation ........................... 1.0 % or 1 ohm max. (whichever is greater) Adjustability Voltage................................... ±0.01 % Resistance............................. ±0.05 % Resolution.................................... Infinite Insulation Resistance................ 500 vdc. 1,000 megohms min. Dielectric Strength Sea Level............................. 1,000 vac 80,000 Feet............................. 250 vac Adjustment Angle..............15 turns nom. Environmental Characteristics Power Rating (400 volts max.) 70 °C..................................... 0.75 watt 125 °C........................................ 0 watt Temperature Range.... -55 °C to +125 °C Temperature Coefficient.... ±100 ppm/°C Seal Test.......................85 °C Fluorinert† Humidity........MIL-STD-202 Method 103 96 hours (3 % ΔTR, 20 Megohms IR) Vibration........ 20 G (2 % ΔTR; 2 % ΔVR) Shock............ 50 G (2 % ΔTR; 2 % ΔVR) Load Life....1,000 hours 0.75 watt 70 °C (4 % ΔTR) Rotational Life........................200 cycles (3 % ΔTR; 1 % or 1 ohm, whichever is greater, CRV) Physical Characteristics Torque.............................. 5.0 oz-in. max. Mechanical Stops.................. Wiper idles Terminals........................Solderable pins Weight........................................ 0.04 oz. Marking............................ Manufacturer’s trademark, resistance code, terminal numbers, date code, manufacturer’s model number and style Wiper................ 50 % (Actual TR) ±10 % Flammability...........................U.L. 94V-0 Packaging Standard....................25 pcs. per tube 3006W w/Panel Mount ....................................72 pcs. per box Adjustment Tool...............................H-90 WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov n RoHS compliant* version available n For trimmer applications/processing guidelines, click here 3006 - Trimpot® Trimming Potentiometer Product Dimensions How To Order Common Dimensions Model 19.05 (.750) 1 .76 (.030) 2 1.52 (.060) Style .38 MIN. (.015) 5.33 ± .89 (.210 ± .035) 3 .51 ± .03 DIA. PINS TYP. (.020 ± .001) 4.83 (.190) 6.35 (.250) 4.70 ± .38 (.185 ± .015) ADJ. SLOT 2.36 DIA. (.093) .79 DEEP X (.031) .64 WIDE X (.025) 3006P 5.08 (.200) 12.70 (.500) 2.54 (.100) 1.40 (.055) 12.70 (.500) 5.08 (.200) Standard or Modified Product Indicator -1 = Standard Product -7 = Transparent Housing Resistance Code Optional Suffix Letter Z = Panel Mount (Factory Installed) Terminations LF = 100 % Tin-plated (RoHS compliant) Blank = 90 % Tin / 10 % Lead-plated (Standard) Consult factory for other available options. Standard Resistance Table 3.30 (.130) 3006W 5.08 (.200) 3006 P - 1 - 103 Z LF 3.30 (.130) Resistance Resistance (Ohms) Code 10 100 20 200 50 500 100 101 200 201 500 501 1,000 102 2,000 202 5,000 502 10,000 103 20,000 203 25,000 253 50,000 503 100,000 104 200,000 204 250,000 254 500,000 504 1,000,000 105 2,000,000 205 Popular distribution values listed in boldface. Special resistances available. 3006Y 1.40 (.055) 2.54 (.100) 17.78 (.700) REV. 08/19 2 .64 (.025) 7.62 (.300) CCW WIPER 3 1 CW CLOCKWISE MM DIMENSIONS: (INCHES) 0.25 TOLERANCES: ± EXCEPT WHERE NOTED (.010) *RoHS Directive 2015/863, Mar. 31, 2015 and Annex “Trimpot” is a registered trademark of Bourns, Inc. †“Fluorinert” is a registered trademark of 3M Co. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
