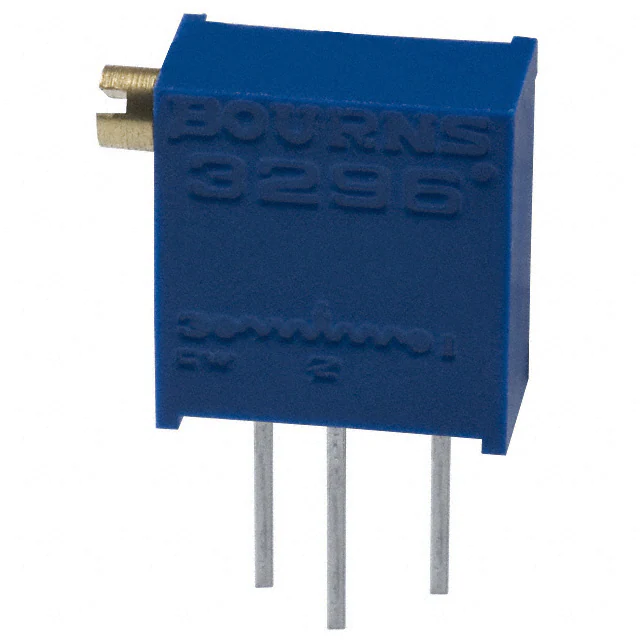

3296Z-1-101

(.100) 3 2 1 Features n Multiturn / Cermet / Industrial / Sealed n 5 terminal styles 2.54 (.100) 5.23 (.206) n Mounting hardware available (H-117P) 2.41 2.54 (.100) available (.095) n RoHS compliant* version 3 n Tape and reel packaging available n For trimmer applications/processing 2 guidelines, click here n Chevron seal design n Listed on the QPL for style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035 Electrical Characteristics Standard Resistance Range .......................10 ohms to 2 megohms (see standard resistance table) Resistance Tolerance............ ±10 % std. (tighter tolerance available) Absolute Minimum Resistance ............................ 1 % or 2 ohms max. (whichever is greater) Contact Resistance Variation ......................... 1.0 % or 3 ohms max. (whichever is greater) Adjustability Voltage................................... ±0.01 % Resistance............................. ±0.05 % Resolution.................................... Infinite Insulation Resistance................ 500 vdc. 1,000 megohms min. Dielectric Strength Sea Level................................ 900 vac 70,000 Feet............................. 350 vac Effective Travel..................25 turns nom. Environmental Characteristics Power Rating (300 volts max.) 70 °C....................................... 0.5 watt 125 °C........................................ 0 watt Temperature Range.... -55 °C to +125 °C Temperature Coefficient.... ±100 ppm/°C Seal Test.......................85 °C Fluorinert† Humidity........MIL-STD-202 Method 103 96 hours (2 % ΔTR, 10 Megohms IR) Vibration........ 20 G (1 % ΔTR; 1 % ΔVR) Shock.......... 100 G (1 % ΔTR; 1 % ΔVR) Load Life... 1,000 hours 0.5 watt @ 70 °C (3 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV) Rotational Life........................200 cycles (4 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV) Moisture Sensitivity Level..................N/A ESD Classification (HBM)......................2 Physical Characteristics Torque.............................. 3.0 oz-in. max. Mechanical Stops.................. Wiper idles Terminals........................Solderable pins Weight........................................ 0.03 oz. Marking............................ Manufacturer’s trademark, resistance code, wiring diagram, date code, mfr’s. model number and style Wiper................ 50 % (Actual TR) ±10 % Flammability...........................U.L. 94V-0 Standard Packaging......50 pcs. per tube Adjustment Tool...............................H-90 WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov 2.54 1 (.100) 2.54 (.100) 3 2 3296 - 3/8 ˝ Square Trimpot® Trimming Potentiometer 1 2.54 (.100) Product Dimensions 3296Y Common Dimensions 6.40 ± 1.32 (.252 ± .052) 1.52 (.060) 1.27 ± 0.1 (.050 ± .004) .38 MIN. (.015) 2.54 (.100) 2.54 (.100) 3 2.54 (.100) 9.53 (.375) 1.14 (.045) 3 2 1 2.54 (.100) 3296Z 2.54 (.100) 1.14 (.045) 3 2 2.54 (.100) 3296P 2.54 (.100) 4.83 ± .13 (.190 ± .005) 1.27 ± 0.1 (.050 ± .004) ADJ. SLOT 2.19 DIA. (.086) .56 WIDE X (.022) .76 DEEP X (.030) .51 ± .03 DIA. (.020 ± .001) 2 6.4 ± 1.32 (.252 ± .052) 2.54 (.100) CCW 2 1 2.54 (.100) WIPER 3 1 CW CLOCKWISE 1 3296W 2.54 (.100) 5.23 (.206) 2.41 (.095) 2.54 (.100) 3 MM DIMENSIONS: (INCHES) 0.25 TOLERANCES: ± EXCEPT WHERE NOTED (.010) How To Order 2 2.54 1 (.100) 3296X 2.54 (.100) 10.03 (.395) 2.41 (.095) Model 3296 W - 1 - 103 __ LF Style 2.54 (.100) Standard or Modified Product Indicator -1 = Standard Product 3 2 2.54 1 (.100) Standard Resistance Table 2.41 (.095) 1.14 Resistance Resistance 2.54 (.045) (Ohms) (.100) 3Code 10 100 2 20 200 1 500 50 2.54 2.54 100 101 (.100) 200 (.100) 201 500 501 1,000 102 2,000 202 5,000 502 1.14 10,000 2.54 103 (.045) 20,000 (.100) 3 203 25,000 253 2 503 50,000 1 104 100,000 2.54 2.54 200,000 204 (.100) (.100) 250,000 254 500,000 504 1,000,000 105 2,000,000 205 Popular values listed in boldface. Special resistances available. *RoHS Directive 2015/863, Mar. 31, 2015 and Annex “Trimpot” is a trademark of Bourns, Inc. †“Fluorinert” is a registered trademark of 3M Co. Resistance Code Packaging Designator Blank = Tube (Standard) R = Tape and Reel (X and W Pin Styles Only) A = Ammo Pack (X and W Pin Styles Only) Tape and reel material meets Antistatic ANSI/ESD 5541-2003 packaging standards. Terminations LF = 100 % Tin-plated (RoHS compliant) Blank = 90 % Tin / 10 % Lead-plated (Standard) Consult factory for other available options. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. (.709 ± .030) (.15 ± .028) 8.89 + .76 /- .51 (.350 + .030 /- .020) 3 2 1 4.0 ± .03 (.157 ± .001) DIA. 18 + 1.0/ - 0.5 (709 + .040/ - .020) 12.7 + 0.3/ - 0.25 (.500 + .012/ - .010) 4.83 + .30/ -.25 (.190 + .012/ -.010) 2.41 ± .25 (.095 ± .010) 2.54 3296 - 3/8 ˝ Square Trimpot ALLTrimming PINS IN-LINE ON Potentiometer CENTER (.100) ® DIMENSIONS: Packaging Specifications 1000/REEL/BOX TOP ADJUST 3296W-1 SIDE ADJUST 3296X-1 3.81 ± .71 (.150 ± .028) 28.07 ± .76 (1.105 ± .030) 12.70 REF. (.500) 8.89 + .76 /- .51 (.350 + .030 /- .020) 8.89 + .76 /- .51 (.350 + .030 /- .020) 3 2 1 12.7 + 0.3/ - 0.25 (.500 + .012/ - .010) 18 ± .76 (.709 ± .030) 29.59 ± .76 (1.165 ± .030) 4.0 ± .03 (.157 ± .001) DIA. 18 + 1.0/ - 0.5 (709 + .040/ - .020) 3 18 + 1.0/ - 0.5 (709 + .040/ - .020) 12.7 + 0.3/ - 0.25 (.500 + .012/ - .010) 4.83 + .30/ -.25 (.190 + .012/ -.010) ALL PINS IN-LINE ON 12.70 REF. (.500) 18 ± .76 (.709 ± .030) 3.81 ± .71 (.15 ± .028) DIMENSIONS: MM (INCHES) 2 1 4.0 ± .03 (.157 ± .001) DIA. 4.83 + .30/ -.25 (.190 + .012/ -.010) 2.54 (.100) 2.41 ± .25 (.095 ± .010) 2.54 CENTER (.100) 2.41 ± .25 (.095 ± .010) ALL PINS IN-LINE ON MM (INCHES) DIMENSIONS: 1000/REEL/BOX 2.54 CENTER (.100) MM (INCHES) .51 ± .051 DIA. TYP. (020 ± .002) 1000/REEL/BOX TOP ADJUST 3296W-1 Meets EIA Specification 468. 3.81 ± .71 (.150 ± .028) 8.89 + .76 /- .51 (.350 + .030 /- .020) 12.70 REF. (.500) 18 ± .76 (.709 ± .030) 29.59 ± .76 (1.165 ± .030) 3 18 + 1.0/ - 0.5 (709 + .040/ - .020) 12.7 + 0.3/ - 0.25 (.500 + .012/ - .010) 2 1 4.0 ± .03 (.157 ± .001) DIA. 4.83 + .30/ -.25 (.190 + .012/ -.010) 2.54 (.100) 2.41 ± .25 (.095 ± .010) 2.54 +886-2 2562-4117 • Email: asiacus@bourns.com Asia-Pacific: Tel: ALL PINS IN-LINE ON CENTER .51 ± .051 (.100) DIA. eurocus@bourns.com TYP. Europe: Tel:MM+36 88 885 877 Email: (020 •± .002) DIMENSIONS: (INCHES) The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com 1000/REEL/BOX www.bourns.com REV. 08/19 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
