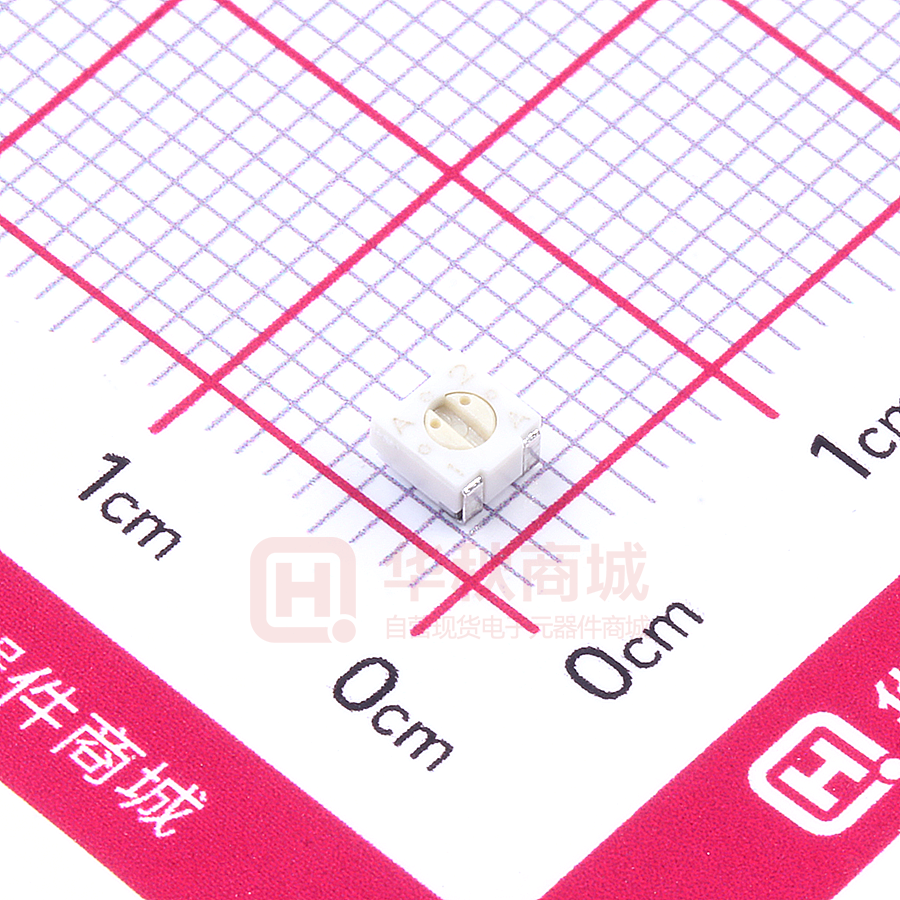

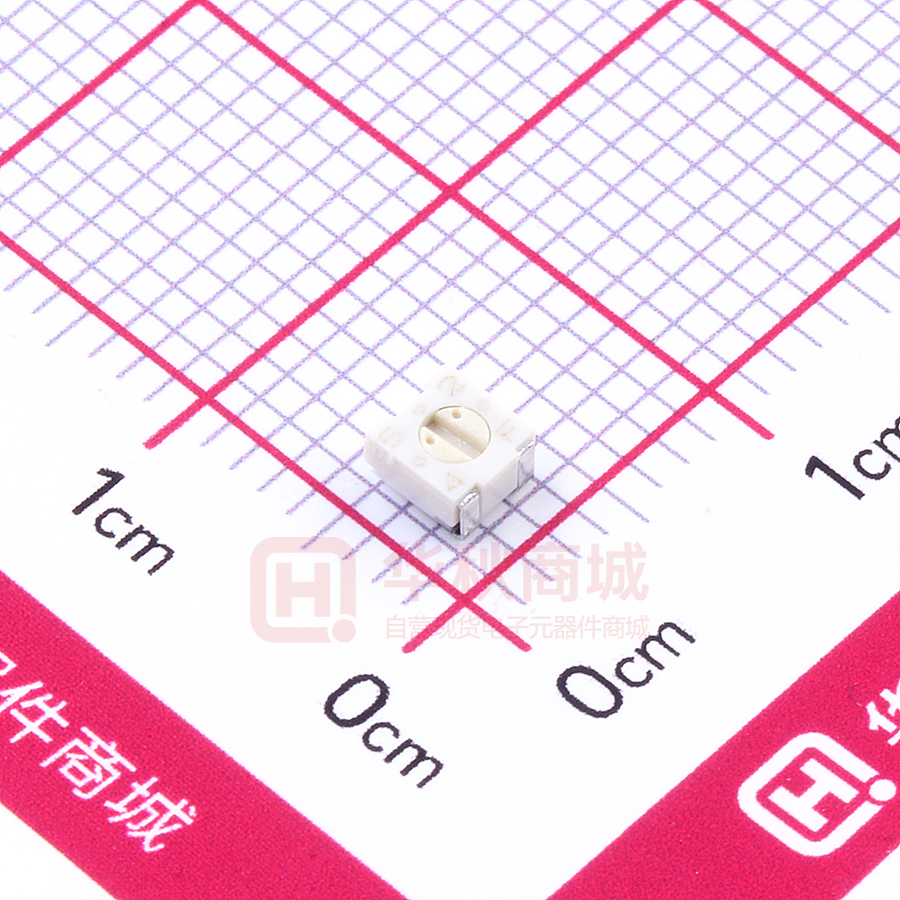

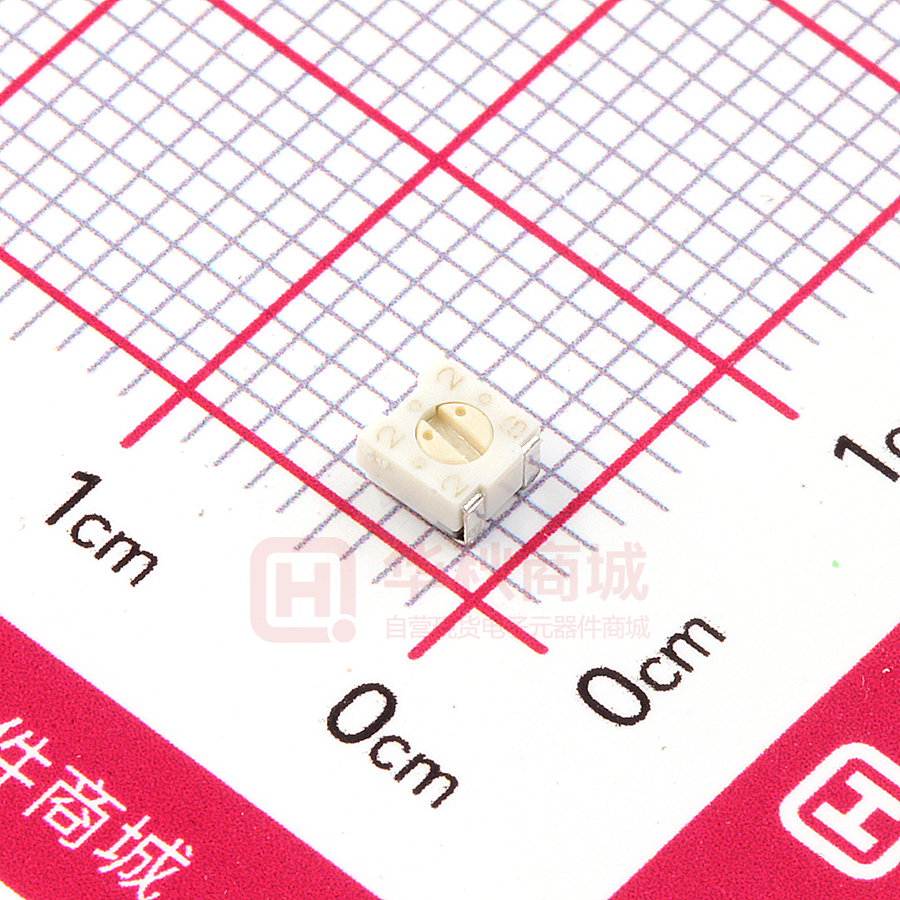

3313J-1-101E

** * HA R LO oHS G AV EN COM AI FR P LA EE LIA BL M N E OD T EL S Features ■ Plastic housing for RF applications ■ Surface Mount 3 mm Square ■ Reverse pin layout option (Model 3313X) Single-Turn Cermet / Sealed ■ Compatible with surface mount manufacturing processes (not recommended for wave soldering) ■ Rotor stop for “in-circuit” adjustment ■ 100 cycle rotational and seal life ■ RoHS compliant* - see processing information on RoHS compliant surface mount trimmers ■ For trimmer applications/processing guidelines, click here ■ Halogen free models available** 3313 - 3 mm Trimpot® Trimming Potentiometer Electrical Characteristics Standard Resistance Range ......................10 ohms to 2 megohms (see standard resistance table) Resistance Tolerance ........... ±20 % std. End Resistance ..... 1 % or 3 ohms max. (whichever is greater) Contact Resistance Variation .................................... 3 % or 3 ohms Adjustability Voltage Divider ........................ ±0.1 % Rheostat .................................. ±0.2 % Resolution ................................... Insulation Resistance ............... 500 vdc. 100 megohms min. Dielectric Strength Sea Level................................ 500 vac 70,000 Feet ............................ 350 vac Adjustment Angle .................. 220° nom. Environmental Characteristics Max. Soldering Exposure ............................. 250 °C/10 seconds Power Rating (200 volts max.) 70 °C .................................. 0.125 watt 125 °C ....................................... 0 watt Operating Temp. Range ............................... -55 °C to +125 °C T .................. ≤100 ohms ±150 ppm/°C; ................... >100 ohms ±100 ppm/°C Seal Test ..85 °C Fluorinert†/60 seconds Humidity ...... MIL-STD 202, Method 106 (no vibration) TRS ±3 %; IR 10 megohms Vibration .....20 G TRS ±1 %; VRS ±1 % Shock .......100 G TRS ±1 %; VRS ±1 % Load Life...............................1000 hours @ 70 °C Rated Power;TRS ± 3 % Rotational Life ..... 100 cycles TRS ±3 % Thermal Shock ..........................5 cycles TRS ±2 %; VRS ±1 % Physical Characteristics Mechanical Angle ................. 250 ° nom. Torque...............................50 g-cm max. Stop Strength ..................200 g-cm min. Pushover Strength (“S” Style only) ........ 1.6 Kilograms (3.5 lbs) minimum Flammability ..........................U.L. 94V-0 Weight ......................... Approx. 0.01 oz. Marking........................ Resistance code and date code Wiper ............... 50 % (Actual TR) ±10 % Standard Packaging J, X Styles (MSL-1) ....1000 pcs./7 ” reel S Style (MSL-1).......... 200 pcs./7 ” reel Adjustment Tool..............................H-91 WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov Product Dimensions 3313J -1 2 3.5 ± 0.2 (.138 ± .008) 3 3313J -2 1 3.2 +0.4/-0.2 (.126 +.016/-.008) ADJ. SLOT 0.52 WIDE (.020) 1.93 LONG X (.076) 0.51 DEEP X (.020) 3313S-1 3.02 (.119) ADJ. CROSS SLOT 0.45 WIDE (.018) 0.51 DEEP X (.020) 3.5 ± 0.2 (.138 ± .008) 3 1 1.1 ± 0.1 (.043 ± .004) 3 3313S-2 1 Position Rotor As Shown Within ±11° Of Centerline Of Terminal 2 3.61 (.142) 3.02 (.119) ADJ. SLOT .45 ± 0.03 WIDE (.018 ± .001) 1.93 ± 0.03 LONG X (.076 ± .001) X .51 ± 0.06 DEEP (.020 ± .002) SOLDERABLE AREA 0.5 (.020) 3 PLCS. 1.50 ± 0.15 (.059 ± .006) 2 PLCS 2.3 ± 0.2 (.091 ± .008) 3 0.66 ± 0.10 2 PLCS (.026 ± .004) 1.30 (.051) 0.71 ± 0.20 TYP (.028 ± .008) 0.65 (.026) 2.39 (.094) RECOMMENDED LAND PATTERN 1.57 1.57 (.062) 3 PLCS (.062) 0.6 (.024) 3313X-2 (Reverse Pin Layout) DIMENSIONS: 0.25 (.010) 1.15 TYP (.045) 4.5 (.177) 1.1 (.043) 3 3.71 (.146) 0.15 ± 0.03 (.006 ± .001) RECOMMENDED LAND PATTERN 1.6 1.6 (.063) (.063) 2 1 5.35 (.211) 0.15 (.006) 1.60 (.063) 1.1 (.043) 0.6 (.024) 2 2.77 (.109) 2.2 ± 0.2 (.087 ± .008) TOLERANCES: ± 2 1.42 1.68 (.056) (.066) 1.47 ± 0.15 (.058 ± .006) 1 ADJ. SLOT .52 ± 0.03 WIDE (.020 ± .001) X 1.93 ± 0.03 LONG (.076 ± .001) X .51 ± 0.06 DEEP (.020 ± .002) 3.2 +0.4/-0.2 (.126 +.016/-.008) 2 3313X-1 (Reverse Pin Layout) Position Rotor As Shown Within ±11° Of Centerline Of Terminal 2 3.61 ± .20 (.142 ± .008) 1 2 2.62 (.103) MM (INCHES) EXCEPT WHERE NOTED 1.12 2 PLCS (.044) 2.39 (.094) 3 2 CCW WIPER 3 1 CW CLOCKWISE * RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. ** Bourns follows the prevailing definition of “halogen free” in the industry. Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. †“Fluorinert” is a registered trademark of 3M Co. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 3313 - 3 mm Trimpot® Trimming Potentiometer Standard Resistance Table 3.9 ± 0.10 (.154 ± .004) 2.50 ± 0.10 (.098 ± .004) .30 ± 0.10 (.012 ± .004) 4.0 ± 0.10 (.157 ± .004) 5.80 ± 0.10 (.228 ± .004) .40 MAX. (.016) 5° ± 2° 4.20 ± .020 (.165 ± .008) 5.50 ± 0.05 (.216 ± .002) Resistance (Ohms) 10 20 50 100 200 500 1,000 2,000 5,000 10,000 20,000 50,000 100,000 200,000 500,000 1,000,000 2,000,000 7.50 ± 0.10 (.295 ± .004) 2.00 ± .010 (.079 ± .004) 2.0 ± 0.10 (.079 ± .004) 12.00 ± 0.10 (.472 ± .004) 4.00 ± .10 (.157 ± .004) 1.5 ± .10 (.059 ± .004) 3.65 ± 0.10 (.144 ± .004) 1.5 ± 0.20 (.059 ± .008) 1.5 ± .10 DIA. (.059 ± .004) 12.0 ± 0.20 (.472 ± .008) TAPE 177.8 ± 2.03 DIA. (7.000 ± .080) 18.39 (.724) MAX. EQUAL SPACED 1.5 (.059) 3 PLCS MIN. 50.0 (1.969) MIN. 13.0 ± 0.2 DIA. (.512 ± .008) Meets EIA 481 20.2 (.795) MIN. REEL 16.00 ± .30 (.630 ± .012) 12.40 + 2.00/ -.000 (.488 + .078/ -.000) 4.10 ± 0.20 (.161 ± .008) EQUAL SPACED 1.5 (.059) 3 PLCS MIN. 22.4 (.882) MAX. 50.0 (1.969) MIN. 20.2 (.795) MIN. How To Order 3313 J - 1 - 502 E TAPE 177.8 ± 2.03 DIA. (7.000 ± .080) 13.00 ± 0.20 DIA. (.512 ± .008) Resistance Code 100 200 500 101 201 501 102 202 502 103 203 503 104 204 504 105 205 Popular distribution resistance values listed in boldface. Special resistances available. 1.5 ± 0.20 DIA. (.059 ± .008) 1.75 ± 0.10 (.069 ± .004) Part Marking Code A1 21 51 A2 22 52 A3 23 53 A4 24 54 A5 25 55 A6 26 16.40 + 1.78/ -.000 (.646 + .070/ -.000) Model Style Product Indicator -1 = Standard Single Slot -2 = Standard Cross Slot -GK2 = Halogen Free Single Slot (Black Housing Color) -GL5 = Halogen Free Cross Slot (Black Housing Color) Resistance Code Embossed Tape 1000 pcs. / 7 ” Reel (J, X Styles - MSL-1) 200 pcs. / 7 ” Reel (S Style - MSL-1) REEL Tape and reel material meets Antistatic ANSI/ ESD 5541-2003 packaging standards. DIMENSIONS: TOLERANCES: ± 0.25 (.010) MM (INCHES) EXCEPT WHERE NOTED REV. 10/16 “Trimpot” is a registered trademark of Bourns, Inc. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
