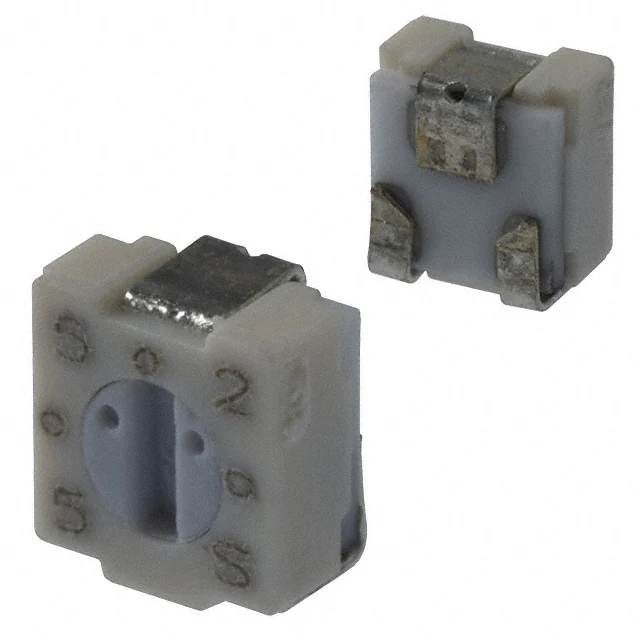

HA *Ro L O HS G C AV EN OM A I F R PL LA EE IA BL M NT E OD EL S Features n Plastic housing for RF applications n Reverse pin layout option (Model 3313X) n RoHS compliant* n Halogen free models available n AEC-Q200 Qualified Grade 1 3313 - 3 mm Trimpot® Trimming Potentiometer *R oH S CO M PL IA NT ** n Surface Mount 3 mm Square Single-Turn Cermet / Sealed n Compatible with surface mount manufacturing processes (not recommended for wave soldering) n Rotor stop for “in-circuit” adjustment n 100 cycle rotational and seal life Environmental Characteristics Max. Soldering Exposure .............................. 250 °C/10 seconds Power Rating (200 volts max.) 70 °C................................... 0.125 watt 125 °C........................................ 0 watt Operating Temp. Range ................................ -55 °C to +125 °C Temperature Coefficient ................... ≤100 ohms ±150 ppm/°C; .................... >100 ohms ±100 ppm/°C Seal Test...85 °C Fluorinert†/60 seconds Humidity....... MIL-STD 202, Method 106 (no vibration) TRS ±3 %; IR 10 megohms Vibration......20 G TRS ±1 %; VRS ±1 % Shock........100 G TRS ±1 %; VRS ±1 % Load Life................................1000 hours @ 70 °C Rated Power;TRS ± 3 % Rotational Life...... 100 cycles TRS ±3 % Thermal Shock...........................5 cycles TRS ±2 %; VRS ±1 % Physical Characteristics Mechanical Angle.................. 250 ° nom. Torque................................50 g-cm max. Stop Strength...................200 g-cm min. Pushover Strength (“S” Style only) ......... 1.6 Kilograms (3.5 lbs) minimum Flammability...........................U.L. 94V-0 Weight.......................... Approx. 0.01 oz. Marking......................... Resistance code and date code Wiper................ 50 % (Actual TR) ±10 % Standard Packaging J, X Styles (MSL-1).....1000 pcs./7 ” reel S Style (MSL-1)........... 200 pcs./7 ” reel Adjustment Tool...............................H-91 WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov Product Dimensions 3313J-1 EE 2 FR AD 3.5 ± 0.2 (.138 ± .008) 1 3 3313J-2 3.2 +0.4/-0.2 (.126 +.016/-.008) ADJ. SLOT 0.52 WIDE (.020) 1.93 LONG X (.076) 0.51 DEEP X (.020) 3313S-1 3.5 ± 0.2 (.138 ± .008) 3 1 1.1 ± 0.1 (.043 ± .004) ADJ. CROSS SLOT 0.45 WIDE (.018) 0.51 DEEP X (.020) 3.02 (.119) 3 3313S-2 1 SOLDERABLE AREA 0.5 (.020) 3 PLCS. 2.3 ± 0.2 (.091 ± .008) 3 0.66 ± 0.10 2 PLCS (.026 ± .004) 2.39 (.094) 0.6 (.024) 3313X-2 (Reverse Pin Layout) 1 1.15 TYP (.045) 4.5 (.177) 1.1 (.043) DIMENSIONS: 0.25 TOLERANCES: ± (.010) 1.30 (.051) 0.71 ± 0.20 TYP (.028 ± .008) 0.65 (.026) 3 3.71 (.146) 0.15 ± 0.03 (.006 ± .001) RECOMMENDED LAND PATTERN 1.6 1.6 (.063) (.063) 2 1 ADJ. SLOT .45 ± 0.03 WIDE (.018 ± .001) ± 0.03 LONG 1.93 X (.076 ± .001) X .51 ± 0.06 DEEP (.020 ± .002) 5.35 (.211) 0.15 (.006) 1.60 (.063) 1.1 (.043) 0.6 (.024) 2 2.77 (.109) 2.2 ± 0.2 (.087 ± .008) ADJ. SLOT .52 ± 0.03 WIDE (.020 ± .001) X 1.93 ± 0.03 LONG (.076 ± .001) X .51 ± 0.06 DEEP (.020 ± .002) Position Rotor As Shown Within ±11° Of Centerline Of Terminal 2 3.61 (.142) 3.02 (.119) 1.50 ± 0.15 (.059 ± .006) 2 PLCS 1 2 1.42 1.68 (.056) (.066) 1.47 ± 0.15 (.058 ± .006) 3313X-1 (Reverse Pin Layout) Position Rotor As Shown Within ±11° Of Centerline Of Terminal 2 3.61 ± .20 (.142 ± .008) 3.2 +0.4/-0.2 (.126 +.016/-.008) 2 Ro VER LEA HS SI D F CO ON RE M SA E PL R IA E NT * LE Electrical Characteristics Standard Resistance Range .......................10 ohms to 2 megohms (see standard resistance table) Resistance Tolerance............ ±20 % std. End Resistance...... 1 % or 3 ohms max. (whichever is greater) Contact Resistance Variation ..................................... 3 % or 3 ohms Adjustability Voltage Divider......................... ±0.1 % Rheostat................................... ±0.2 % Resolution.................................... Infinite Insulation Resistance................ 500 vdc. 100 megohms min. Dielectric Strength Sea Level................................ 500 vac 70,000 Feet............................. 350 vac Adjustment Angle................... 220° nom. 2 RECOMMENDED LAND PATTERN 1.57 1.57 (.062) 3 PLCS (.062) 2.62 (.103) MM (INCHES) EXCEPT WHERE NOTED 1.12 2 PLCS (.044) 2.39 (.094) 3 2 CCW WIPER 3 1 CW CLOCKWISE * RoHS Directive 2015/863, Mar. 31, 2015 and Annex. ** Halogen free product is identified by a black housing color. Bourns follows the prevailing definition of “halogen free” in the industry. Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. †“Fluorinert” is a registered trademark of 3M Co. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Features (Continued) n See processing information on RoHS compliant surface mount trimmers n For trimmer applications/processing guidelines, click here 3313 - 3 mm Trimpot® Trimming Potentiometer Standard Resistance Table Resistance Part Marking Resistance (Ohms) Code Code 10 A1 100 20 21 200 50 51 500 100 A2 101 200 22 201 500 52 501 1,000 A3 102 2,000 23 202 5,000 53 502 10,000 A4 103 20,000 24 203 50,000 54 503 100,000 A5 104 200,000 25 204 500,000 55 504 1,000,000 A6 105 2,000,000 26 205 Popular distribution resistance values listed in boldface. Special resistances available. How To Order Model 3313J, X Packaging Specifications 3.9 ± 0.10 (.154 ± .004) 2.50 ± 0.10 (.098 ± .004) .30 ± 0.10 (.012 ± .004) 2.0 ± 0.10 (.079 ± .004) Embossed Tape 1000 pcs. / 7 ” Reel (J, X Styles - MSL-1) 200 pcs. / 7 ” Reel (S Style - MSL-1) Tape and reel material meets Antistatic ANSI/ ESD 5541-2003 packaging standards. 7.50 ± 0.10 (.295 ± .004) 12.00 ± 0.10 (.472 ± .004) 4.00 ± .10 (.157 ± .004) 1.5 ± .10 (.059 ± .004) 3.65 ± 0.10 (.144 ± .004) 1.5 ± 0.20 (.059 ± .008) TAPE 3313 J - 1 - 502 E Resistance Code 5° ± 2° 4.20 ± .020 (.165 ± .008) 2.00 ± .010 (.079 ± .004) 1.75 ± 0.10 (.069 ± .004) Standard or Modified Product Indicator -1 = Standard Single Slot -2 = Standard Cross Slot -GK2 = Halogen Free Single Slot (Black Housing Color) -GL5 = Halogen Free Cross Slot (Black Housing Color) 5.80 ± 0.10 (.228 ± .004) .40 MAX. (.016) 5.50 ± 0.05 (.216 ± .002) 4.0 ± 0.10 (.157 ± .004) 177.8 ± 2.03 DIA. (7.000 ± .080) Style 3313S Packaging Specifications EQUAL SPACED 1.5 (.059) 3 PLCS MIN. 13.0 ± 0.2 DIA. (.512 ± .008) Meets EIA 481 12.0 ± 0.20 (.472 ± .008) 1.5 ± 0.20 DIA. (.059 ± .008) 16.00 ± .30 (.630 ± .012) 18.39 (.724) MAX. 50.0 (1.969) MIN. 20.2 (.795) MIN. REEL 1.5 ± .10 DIA. (.059 ± .004) 12.40 + 2.00/ -.000 (.488 + .078/ -.000) 4.10 ± 0.20 (.161 ± .008) TAPE 177.8 ± 2.03 DIA. (7.000 ± .080) EQUAL SPACED 1.5 (.059) 3 PLCS MIN. 13.00 ± 0.20 DIA. (.512 ± .008) 22.4 (.882) MAX. 50.0 (1.969) MIN. 20.2 (.795) MIN. 16.40 + 1.78/ -.000 (.646 + .070/ -.000) REEL MM DIMENSIONS: (INCHES) 0.25 TOLERANCES: ± EXCEPT WHERE NOTED (.010) Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com Europe: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com REV. 08/19 “Trimpot” is a registered trademark of Bourns, Inc. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
