Features
n RoHS compliant* version available
n Conductive plastic
n Linear tapers
n Audio tapers available
n PC board and bushing mount
3360
n Plastic bushing and plastic shaft
Y 503
C0
247
n Withstands typical industrial washing
processes
Electrical Characteristics
Standard Resistance Range
Linear...............1K ohms to 1 megohm
Total Resistance Tolerance
Linear Tapers.............................±20 %
Independent Linearity......................±5 %
Absolute Minimum Resistance
.............................2 % or 2 ohms max.
.......................... (whichever is greater)
Effective Electrical Angle...240 ° nominal
Contact Resistance Variation
.............................1 % or 3 ohms max.
(whichever is greater)
Dielectric Withstanding Voltage
(MIL-STD-202 – Method 301)
Sea Level............... 900 VAC minimum
70,000 Feet............ 350 VAC minimum
Insulation Resistance
................... 1,000 megohms minimum
Power Rating @ 70 °C
(Derate to 0 at 125 °C
Voltage Limited By Power Dissipation
or 200 VAC, Whichever is Less)
.............................................. .25 watts
Audio Tapers..................... 0.125 watts
Theoretical Resolution
................................ Essentially infinite
Environmental Characteristics
Operating Temperature Range
..................................+1 °C to +125 °C
Storage Temperature Range
.................................-55 °C to +125 °C
Temperature Coefficient
Over Storage Temperature Range
.................................... ±1,000 ppm/°C
Vibration.......................................... 30 G
Total Resistance Shift..... ±2 % maximum
Voltage Ratio Shift..... ±2 % maximum
Shock............................................ 100 G
Total Resistance Shift.... ±2 % maximum
Voltage Ratio Shift...... ±2 % maximum
Load Life.............................. 1,000 Hours
Total Resistance Shift
.......................... ±10 % TRS maximum
Rotational Life (No Load)... 50,000 Cycles
Total Resistance Shift
............................ ±5 % TRS maximum
Contact Resistance Variation
.....................................3 % or 3 ohms,
whichever is greater
Moisture Resistance......... MIL-STD-202,
Method 103, Condition B
Total Resistance Shift
.......................... ±10 % TRS maximum
IP Rating..........................................IP 67
3360 - 6 mm Square Sealed Panel Control
Physical Characteristics
Stop Strength......... 5.65 N-cm (8 oz.-in.)
Mechanical Angle..............310 ° nominal
Torque
Starting
.........3.53 N-cm (5.0 oz.-in.) maximum
Running
.........3.53 N-cm (5.0 oz.-in.) maximum
Mounting (Torque on Bushing)
.............17 N-cm (1.5 lb.-in.) maximum
[plastic bushing]
Weight ....................................4.5 grams
Terminals........................ Solderable pins
Soldering Condition
...........5 seconds at 260 °C maximum.
Recommended hand soldering
using Sn95/Ag5 no clean solder,
0.025 wire diameter.
Marking..........Manufacturer’s trademark,
model number, product code,
terminal style, resistance code
and date code
Flammability......... Conforms to UL94V-0
Epoxy................... Conforms to UL94V-1
Hardware (purchased separately)
Nut.............................................H-38-1
Washer......................................H-37-5
MSL.......................................................1
ESD Classification (HBM).....................2
Standard Resistance Table
Resistance Resistance
(Ohms)
Code
1,000 102
2,000
202
5,000
502
10,000
103
20,000
203
50,000 503
100,000
104
200,000
204
500,000
504
1,000,000
105
Popular distribution resistance values listed in
boldface. Special resistances available.
How To Order
3360 Y - 1 - 103 LF
Model
Terminal Style Designator
Single Cup:
C = In-line Straight
Terminals Side Exit
P = 5.08 mm x 2.54 mm
Triangular Pattern
Rear Exit
Y = 5.08 mm x 5.08 mm
Triangular Pattern
Rear Exit
Bushing Designator
1 = Standard
Resistance Code
Terminations
LF = 100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
3360 - 6 mm Square Sealed Panel Control
Product Dimensions
COMMON DIMENSIONS
3360C
3.35
(.131)
6.35 ± .025
(.250 ± .010)
MOUNTING DIA.
1/4-32 UNEF-2A
THREADED PLASTIC
BUSHING
.33
(.013)
MIN.
STANDOFF
2.36 ± .050
DIA.
(.093 ± .002)
5.59 ± .25
(.220 ± .010)
ACROSS FLATS
6.71 ± .25
(.264 ± .010)
6.78 ± .25
(.266 ± .010)
3.20 ± .25
(.126 ± .010)
.38
(.015)
MIN.
STANDOFF
2.54 ± .25
(.100 ± .010)
5.44
(.214)
MIN.
FULL
THREAD
6.35
(.250)
2.54 ± .25
(.100 ± .010)
5.97 ± .89
(.235 ± .035)
3.91 ± .38
(.154 ± .015)
4.70 ± .38
(.185 ± .015)
12.70 ± .64
(.500 ± .025)
ADJUSTMENT SLOT
.64 ± .10
.76 ± .25
WIDE X
DEEP
(.025 ± .004)
(.030 ± .010)
3
2
1
.46 ± .05
DIA.
(.018 ± .002)
SOLDER PLATED
COPPER PINS

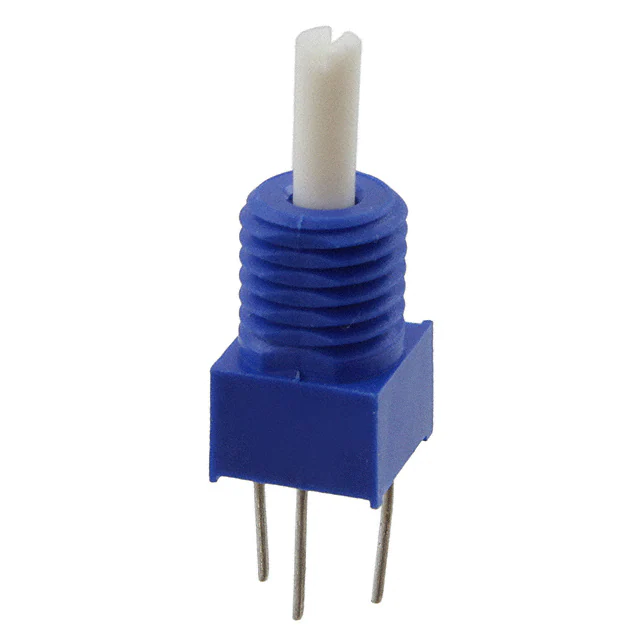

3360P
.33
(.013)
MIN. STANDOFF
5.97 ± .89
(.235 ± .035)
2.54 ± .38
(.100 ± .015)
2
1
3
3.58 ± .38
(.141 ± .015)
TYP.
2.54 ± .25
(.100 ± .010)
2.54 ± .25
(.100 ± .010)
3360Y
5.97 ± .89
(.235 ± .035)
5.08 ± .25
(.200 ± .010)
2
1
3
.97 ± .38
(.038 ± .015)
2.54 ± .25
(.100 ± .010)
2
DIMENSIONS:
MM
(INCHES)
CCW
2.54 ± .25
(.100 ± .010)
WIPER
3
1
CW
CLOCKWISE
REV. 10/19
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
