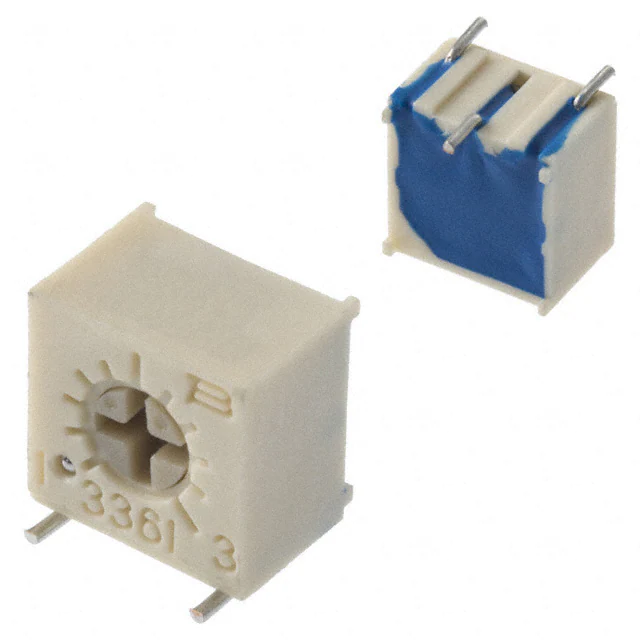

3361S-1-104GLF

Features n Single-Turn / Cermet / Industrial / Sealed n Miniature package n Rotor designed for automatic machine adjust interface n Withstands harsh environments and immersion cleaning processes n Compatible with surface mount manufacturing processes n RoHS compliant* - see processing information on RoHS compliant surface mount trimmers n For trimmer applications/processing guidelines, click here 3361 - 1/4 ˝ Square SMD Trimpot® Trimming Potentiometer Electrical Characteristics Std. Resistance Range...... 10 to 2 megohms (see standard resistance table) Resistance Tolerance................. ±10 % std. (tighter tolerance available) Absolute Minimum Resistance ..........................................1 % or 2 ohms (whichever is greater) Contact Resistance Variation ................................. 3 % or 3 ohms max. (whichever is greater) Adjustability Voltage........................................±0.05 % Resistance..................................±0.15 % Resolution........................................ Infinite Insulation Resistance.................... 500 vdc. 1,000 megohms min. Dielectric Strength Sea Level.................................... 900 vac 80,000 Feet................................. 350 vac Adjustment Angle...................... 240 ° nom. Product Dimensions 3361P 7.04 ± 0.25 (.277 ± .010) A 3.84 ± 0.25 (.151 ± .010) 2.29 ± .005 (.090 ± .0002) A 3361 1 2.77 ± .005 (.109 ± .0002) ELECTRICAL ADJ. SLOT 0.64 WIDE X (.025) 0.89 DEEP (.035) 3 46 ° 2.29 (.090) 1.54 (.061) 2 CCW 3 CW CLOCKWISE TOLERANCES: 0.25 EXCEPT WHERE NOTED (.010) WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov 4.17 ± 0.38 (.164 ± .015) 1 3361 ELECTRICAL ADJ. SLOT 0.64 WIDE X (.025) 0.89 DEEP (.035) 3 2.29 ± .005 (.090 ± .0002) 46 ° 2.29 (.090) 1.54 (.061) 0.89 (.035) 5.21 ± 0.63 (.205 ± .025) 4.88 ± 0.12 (.192 ± .005) 2.77 ± .005 (.109 ± .0002) A A SECTION A-A 4.88 ± 0.25 (.192 ± .010) 0.46 ± 0.02 DIA. (.018 ± .001) 3 PLACES LEADS TO BE COPLANAR WITHIN 0.10 (.004) 0.79 ± 0.25 (.031 ± .010) 2.54 ± 0.25 (.100 ± .010) 0.38 ± 0.12 (.015 ± .005) 2 2.51 ± 0.25 (.099 ± .010) TYP. 8.53 ± 0.76 (.336 ± .030) 0.38 ± 0.05 (.015 ± .002) 0.71 ± 0.25 (.028 ± .010) LEADS TO BE COPLANAR WITHIN 0.10 (.004) 6.65 REF. (.262) 2.54 ± 0.25 (.100 ± .010) 2.54 ± 0.25 (.100 ± .010) 2 1.02 ± 0.25 (.040 ± .010) 2.29 ± 0.25 (.090 ± .010) 2.54 ± 0.25 (.10 ± .010) 3 2.54 ± 0.25 (.100 ± .010) 1 2.54 ± 0.25 (.100 ± .010) Recommended Land Pattern 1.19 ± 0.12 TYP. (.047 ± .005) 1 3 2.29 ± 0.25 (.090 ± .010) Recommended Land Pattern 1.19 ± 0.12 3 PLCS (.047 ± .005) 3.30 ± 0.25 (.130 ± .010) 3 PLCS 7.62 ± 0.12 (.300 ± .005) 9.70 ± 0.12 (.381 ± .005) 2.54 ± 0.12 (.100 ± .005) TYP. WIPER 1 7.37 ± 0.38 (.290 ± .015) SECTION A-A Physical Characteristics Mechanical Angle...................... 270 ° nom. Torque................................. 3.0 oz-in. max. Stop Strength...................... 7.0 oz -in. min. Terminals............................ Solderable pins Weight............................................ 0.02 oz. Marking............................ Resistance code, terminal numbers, manufacturer’s model number, style and date code Wiper.................... 50 % (Actual TR) ±10 % Flammability............................... U.L. 94V-0 Standard Packaging “S” Style....................... 500 pcs./13 ˝ reel “P” Style....................... 750 pcs./13 ˝ reel Adjustment Tool................................... H-90 MSL...........................................................3 6.71 ± 0.12 (.264 ± .005) 0.89 (.035) Environmental Characteristics Maximum Soldering Exposure (Temp/Time)...........+260 ˚C/20 sec. max. above 255 °C Power Rating (300 volts max.) 70 °C......................................... 0.50 watt 125 °C............................................ 0 watt Temperature Range.........-55 °C to +125 °C Temperature Coefficient......... ±100 ppm/°C Seal Test.......85 °C Fluorinert†/60 seconds Humidity............ MIL-STD-202 Method 103 96 hours (2 % ΔTR; 10 Megohms IR) Vibration............ 30 G (1 % ΔTR; 1 % ΔVR) Shock.............. 100 G (1 % ΔTR; 1 % ΔVR) Load Life......1,000 hours 0.5 watt @ 70 °C (3 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV) Rotational Life............................ 200 cycles (4 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV) 3361S 6.71 ± 0.25 (.264 ± .010) 3.30 ± 0.25 (.130 ± .010) 5.08 ± 0.12 (.200 ± .005) DIMENSIONS: MM (INCHES) *RoHS Directive 2015/863, Mar. 31, 2015 and Annex †“Fluorinert” is a registered trademark of 3M Co. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 3361 - 1/4 ˝ Square SMD Trimpot® Trimming Potentiometer How To Order 3361 P - 1 - 502 G LF Model Packaging Specifications (P Style) (S Style) 0.5 MAX. (0.020) Style Standard or Modified Product Indicator -1 = Standard Product Resistance Code Packaging Designator G = Embossed Tape “S” Style = 500 pcs./13 ” reel “P” Style = 750 pcs./13 ” reel Tape and reel material meets Antistatic ANSI ESD 5541-2003 packaging standards. Terminations LF = 100 % Tin-plated (RoHS compliant) Blank = 90 % Tin / 10 % Lead-plated (Standard) Consult factory for other available options. 6°±2° 6.0 ± .10 (.236 ± .004) 7.50 ± .10 (.295 ± .004) DIA. 1.5 + .10/ –.00 (.059 + .004/ –.000) 4.00 ± .10 (.157 ± .004) 7.24 ± .10 (.285 ± .004) 2.00 ± .10 (.079 ± .004) 40 ° ± 2 ° 36 ° ± 2 ° 4.25 (0.167) 9.0 (0.35) 16.0 (0.630) 7.5 (0.295) 1.75 ± 0.1 (0.069 ± 0.004) 5.13 (0.202) 12.00 ± .10 (.472 ± .004) 1.75 ± .10 (.069 ± .004) 9.52 ± .10 (.375 ± .004) 16.0 ± .30 (.630 ± .012) 13.0 ± .51 (.512 ± .020) DIA. 12.0 (.472) TAPE Standard Resistance Table Resistance Resistance (Ohms) Code 10 100 20 200 50 500 100 101 200 201 500 501 1,000 102 2,000 202 5,000 502 10,000 103 20,000 203 25,000 253 50,000 503 100,000 104 200,000 204 250,000 254 500,000 504 1,000,000 105 2,000,000 205 7.56 (0.298) 5.18 (0.204) 0.5 (0.020) 1.5 +0.1/-0.0 (0.059 +.004/-.000) DIA. 1.78 ± .25 EQUAL SPACED 3 PLCS. (.070 ± .010) 18.69 ± .79 DIA. (.736 ± .031) 99.06 ± 1.02 (3.90 ± .040) REEL 6.93 (0.273) 2.0 ± 0.1 (0.079 ± 0.004) 4.0 ± 0.05 (0.157 ± 0.002) 330.2 ± 5.08 DIA. (13.000 ± .200) 1.5 DIA. MIN. (0.059) 16.51+ 2.03/ -.000 (.650 + .080/ -.000) 8.9 ± 0.2 (0.351 ± 0.008) 8.8 (0.346) REF. TAPE 13.0 ± 0.51 (0.512 ± 0.020) 17.78 ± 0.25 EQUAL SPACED 3 PLCS. (.0700 ± 0.010) 18.69 ± 0.79 DIA. (0.736 ± 0.031) DIA. Popular distribution resistance values listed in boldface. Special resistances available. 99.06 ± 1.02 (3.90 ± 0.040) UNITS PACKAGED 750 PIECES PER REEL. DIMENSIONS: MM (INCHES) 330.2 ± 5.08 DIA. (13.00 ± 0.200) Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com Europe: Tel: +36 88 885 877 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com REV. 08/19 REEL 16.51 +2.03/-0.00 (0.650 +0.080/-0.000) UNITS PACKAGED 500 PIECES PER REEL. DIMENSIONS: MM (INCHES) “Trimpot” is a trademark of Bourns, Inc. “Bourns” is a registered trademark of Bourns, Inc. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
