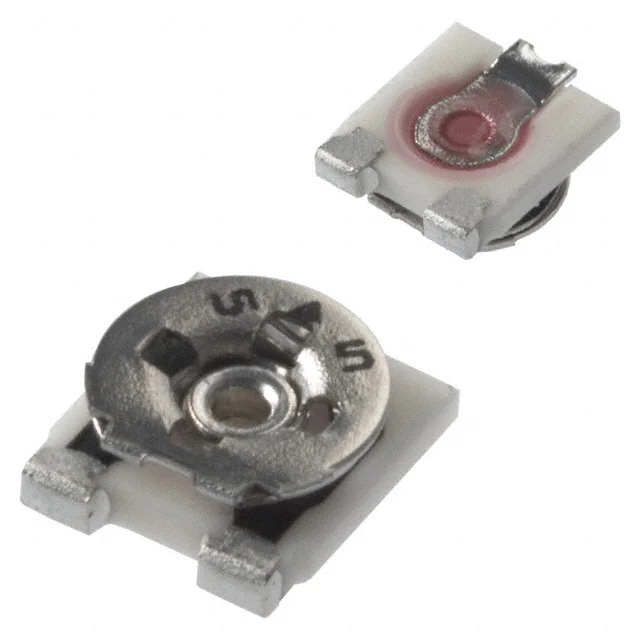

PL IA N T Features M ■ SMD Single-Turn / Cermet / Industrial *R oH S CO Open Frame ■ Cross slot rotor designs suitable for automatic adjustment equipment ■ Supplied in 12 mm embossed tape, compatible with automatic pick-and-place assembly equipment ■ Recommended for reflow solder processing only ■ RoHS compliant* - see processing information on lead free surface mount trimmers ■ For trimmer applications/processing guidelines, click here 3364 - 4 mm Square Trimpot® Trimming Potentiometer Electrical Characteristics Standard Resistance Range ......................100 ohms to 1 megohm (see standard resistance table) Resistance Tolerance ........... ±25 % std. End Resistance 1K............................................... 2 % Contact Resistance Variation (Voltage Divider) .................. 5 % max. Resolution ................................... Infinite Adjustment Angle ..................260 °±20 ° Environmental Characteristics Power Rating (50 volts max.) 70 °C ...................................... 0.2 watt Temperature Range ... -40 °C to +100 °C Temperature Coefficient ... ±250 ppm/°C Humidity ................500 hours (5 % ΔTR) Load Life.................................500 hours 0.2 watt @ 70 °C (5 % ΔTR) Rotational Life ..... 20 cycles (15% ΔTR) Physical Characteristics Torque............................ 20 to 200 g-cm Mechanical Angle ................ Continuous Marking....................... Resistance code, manufacturer’s full part number and date code on packaging Terminals ......................... Solder coated Standard Packaging ... 1000 pcs./7 ˝ reel Adjustment Tool..............................H-90 Product Dimensions Common Dimensions 3364W, X 3-Terminal 3364A, B 3-Terminal 3.80 (.150) 3.80 (.150) 0.55 ± 0.15 (.022 ± .006) 2 2.30 (.091) 4.50 (.177) 2.00 (.079) 2.20 (.087) 2.50 ± 0.15 (.098 ± .006) 1 3 0.55 ± 0.15 (.022 ± .006) 2.00 (.079) ADJ. CROSS SLOT 0.55 ± .15 (.022 ± .006) WIDE 0.35 X DEEP (.014) 2.50 X LONG (.098) 4.20 (.165) 2.20 (.087) 2.00 (.079) 1.40 (.055) 1.50 (.059) 0.80 (.031) 2 1.35 (.053) 1.40 (.055) 3 0.12 (.047) 1.00 (.039) 1 0.95 (.037) 1.60 (.063) 0.80 (.031) 0.80 (.031) 1.90 (.075) 0.95 (.037) 5.10 (.201) Style 1.30 (.051) 1.60 (.063) Styles X,B Terminals away from sprocket holes DIMENSIONS: TOLERANCES: ± 0.25 (.010) 1.50 (.059) 1.30 (.051) 0.80 (.031) 5.08 (.200) 1.10 (.043) 1.50 (.059) 1.20 (.047) 1.20 (.047) 0.60 (.024) 0.80 (.031) 1.20 (.047) 0.60 (.024) 2 MM (INCHES) EXCEPT WHERE NOTED 2 2.40 (.094) 3364 X - 1 - 103 E Model 0.99 (.039) SUGGESTED PWB LAYOUT 1.10 (.043) CCW 1.20 (.047) 1 3 2.40 (.094) Embossed Tape Designator E = 1000 pcs./7 ” reel (-1 standard) 3 0.50 (.020) How To Order Resistance Code 2 1.50 MAX. (.059) SUGGESTED PWB LAYOUT Standard Product 1 1.50 MAX. (.059) Aqueous cleaning not recommended. Reflow solder processing recommended Orientation of parts in tape: Styles W,A Terminals toward sprocket holes 2.50 ± 0.15 (.098 ± .006) WIPER 3 1 CLOCKWISE Consult factory for other available options. *RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. Specifications are subject to change without notice. The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their specific applications. CW 3364 - 4 mm Square Trimpot® Trimming Potentiometer Standard Resistance Table Packaging Specifications 2.20 ± 0.20 (.087 ± .008) 0.60 (.024) 5.51 ± 0.05 (.217 ± .002) 4.00 ± 0.10 (.157 ± .004) W, A ORIENTATION 8.00 ± 0.10 (.315 ± .004) 2.00 ± 0.10 (.079 ± .004) 1.50 ± 0.10 DIA. (.059 ± .004) X, B ORIENTATION 4.30 ± 0.20 (.169 ± .008) Resistance (Ohms) 100 200 500 1,000 2,000 5,000 10,000 20,000 50,000 100,000 200,000 500,000 1,000,000 Resistance Code 101 201 501 102 202 502 103 203 503 104 204 504 105 Part Marking 12 22 52 13 23 53 14 24 54 15 25 55 16 Popular distribution resistance values listed in boldface. 5.00 ± 0.20 (.197 ± .008) 1.75 ± 0.10 (.069 ± .004) 12.00 ± 0.30 (.472 ± .012) TAPE 178 ± .20 DIA. (7.008 ± .008) 1.20 ± .05 (.047 ± .002) EQUAL SPACED 3 PLCS. 1.50 MIN. (.059) 50.00 (1.969) REF. 13.00 ± 0.51 DIA. (.512 ± .020) 21.01 ± 0.76 DIA. 13.00 ± 1.50 (.827 ± .030) (512 ± .060) REEL Conforms with EIA specification RS-481. DIMENSIONS: MM (INCHES) REV. 04/13 “Trimpot” is a registered trademark of Bourns, Inc. Specifications are subject to change without notice. The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their specific applications.
