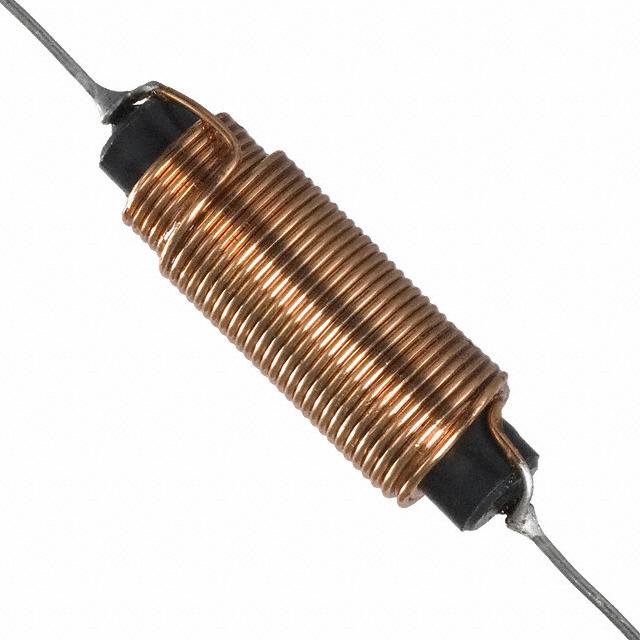

Hash RF Chokes Special Features • Low cost, low DCR • High current capacity • Varnish coated • Operating temperature -55 to +105°C • Ideal for use as EMI filter, output choke, smoothing coil Notes * Current to cause 10% maximum inductance drop or 35°C maximum temperature rise Part Number 5218 5219 5220 5230 5240 5248 5250 5252 5254 5256 5258 L (µH) ±20% Test. Freq. 3.35 4.9 8.8 4.0 40 68 100 125 250 500 1000 7.96 MHz 7.96 MHz 7.96 MHz 7.96 MHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 1 KHz 5200 Series DCR Ω I, DC* Max. (A) Coil Dia. Max. 0.01 0.016 0.021 0.012 0.082 0.054 0.216 0.08 0.17 0.26 0.55 0.6 0.6 0.56 0.38 0.31 0.56 0.38 0.50 0.44 0.56 0.50 20 15 10 8 3 5 2 3.5 2.5 2 1 Lead Wire Core Size Material 12 14 16 20 20 20 20 20 20 20 20 Iron Iron Iron Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Fig. A A A B D C E C C C C Also available as RoHS compliant. 1.25 Min. tinned 1.25 1.25 Min. Fig. A 1.25 0.875 Fig. D 1.25 Min. 1.25 Fig. E Fig. B 1.25 Min. 1.25 1.25 Fig. C Dimensions: Inches 306 E. Alondra Blvd. Gardena, CA 90247-1059 • Phone (310) 515-1720 • FAX (310) 515-1962 wwww.jwmiller.com 21.1
