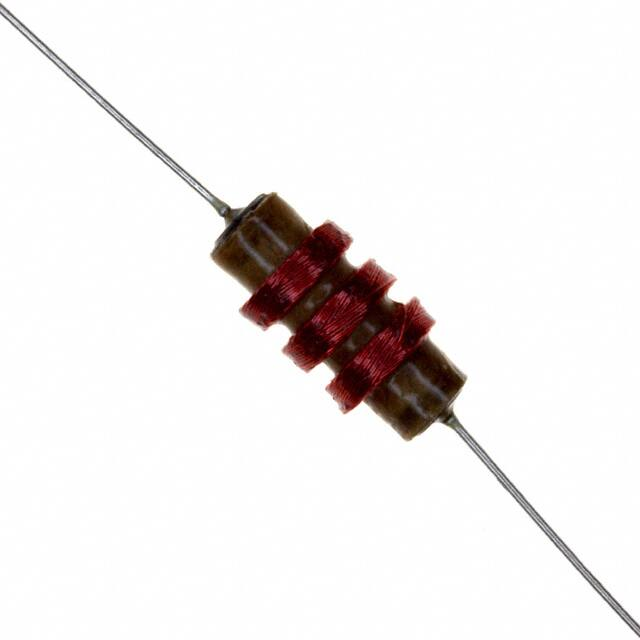

6302-RC

Varnished RF Chokes Special Features • High Q, high self-resonant frequency • High voltage application • 3-pi universal wound • Low cost • Varnish coated • Ferrite core • Operating temperature -55 to +105°C Part Number 6302 6304 6306 6308 6310 L (µH) ±5% 2500 5000 10,000 25,000 50,000 Q Min. 95 80 95 90 100 6300 Series SRF Test Freq. (MHz) (MHz) Min. 0.252 0.252 0.0796 0.0796 0.0796 Also available as RoHS compliant. 1.3 1.0 0.71 0.47 0.33 DCR Ω Max. 9.0 14.0 31.0 82.0 127.0 Notes * Current to cause 35°C maximum temperature rise 1.5 0.875 A 0.032 Dimensions: Inches 20.2 306 E. Alondra Blvd. Gardena, CA 90247-1059 • Phone (310) 515-1720 • FAX (310) 515-1962 wwww.jwmiller.com I, DC* (mA) 160 160 100 65 65 Dim. A Max 0.47 0.53 0.53 0.53 0.63
