Features
n Essentially infinite resolution
n Excellent rotational life
n High quality, rugged construction
n General purpose applications
n Non-standard features available
n Cost and space saving
Electrical Characteristics1

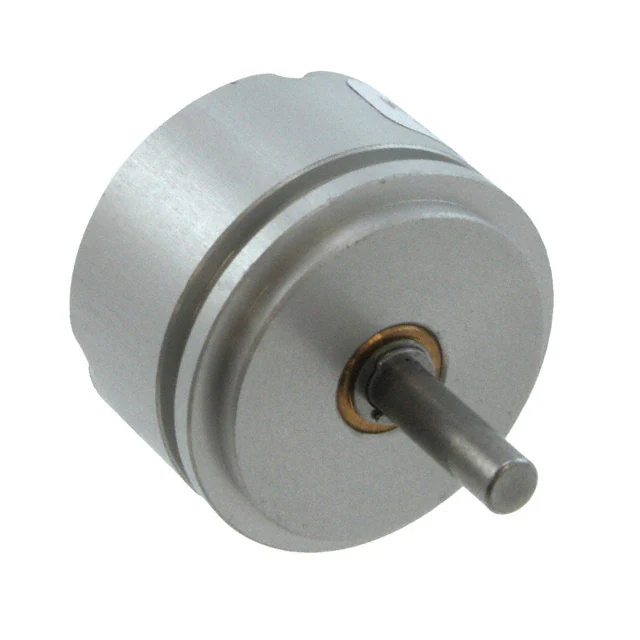

6539/6639 - Precision Potentiometer
6539 Servo Mount
6639 Bushing Mount
Standard Resistance Range................ 1 K to 100 K ohms......................1 K to 100 K ohms
Total Resistance Tolerance................... ±15 %..........................................±15 %
Independent Linearity........................... ±2.0 %.........................................±2.0 %
Effective Electrical Angle...................... 340 ° +3 °....................................340 ° +3 °
End Voltage.......................................... 0.5 % maximum..........................0.5 % maximum
Output Smoothness.............................. 0.1 %...........................................0.1 %
Dielectric Withstanding Voltage (MIL-STD-202, Method 301)
Sea Level.......................................... 750 VAC minimum......................750 VAC minimum
Power Rating (Voltage Limited By Power Dissipation or 300 VAC, Whichever is Less)
+70 °C............................................... 1.0 watt.......................................1.0 watt
+125 °C............................................. 0 watt..........................................0 watt
Insulation Resistance (500 VDC)......... 500 megohms minimum..............500 megohms minimum
Resolution............................................ Essentially infinite.......................Essentially infinite
Product Dimensions
6539
12.70 ± .38
(.500 ± .015)
1.57
(.062)
1.57
(.062)
1.57
(.062)
19.81
(.780)
DIA.
.51
(.020)
REF
12.70 ± .79
(.500 ± .031)
3.18
(.125)
6639
10.317+.000/-.051 DIA.
(.4062+.000/-.002)
6.342+.000/-.008
DIA.
(.2497+.000/-.0003)
6.342+.000/-.008
(.2497+.0000/-.0003)
DIA. SHAFT
.25 CHAMFER
45° ± 5 ° x (.010)
11.25 ± .38
(.443 ± .015)
1.57
(.062)
1.19
1.60
SLOT (.047) X (.063)
22.23
(.875)
DIA.
Mechanical Characteristics1
Mechanical Angle...........................................................Continuous, Stops (340 ° +8 °, -0 °) available
Stop Strength (applies to -301 with mechanical stops only)...................................22.6 N-cm (2 lb.-in.)
Torque (Starting & Running)2....................................................................0.40 N-cm (0.5 oz.-in.) max.
Mounting...............................................................................170-200 N-cm (15-18 lb.-in.) maximum
Shaft Runout.................................................................................................0.13 mm (0.005 in.) T.I.R.
Lateral Runout...............................................................................................0.08 mm (0.003 in.) T.I.R.
Shaft End Play...............................................................................................0.13 mm (0.005 in.) T.I.R.
Shaft Radial Play...........................................................................................0.13 mm (0.005 in.) T.I.R.
Pilot Diameter Runout.................................................................................0.06 mm (0.0025 in.) T.I.R.
Backlash........................................................................................................................ 0.1 º maximum
Weight........................................................ 18 gm (6539 Servo Mount), 24 gm (6639 Bushing Mount)
Terminals.................................................................................................................... Rear Turret Type
Soldering Condition
Manual Soldering..................................96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire
370 °C (700 °F) max. for 3 seconds
Wave Soldering......................................................... 96.5Sn/3.0Ag/0.5Cu solder with no-clean flux
260 °C (500 °F) max. for 5 seconds
Wash processes...................................................................................................Not recommended
Marking.................................................. Manufacturer’s name and part number, resistance value and
tolerance, linearity tolerance, wiring diagram, and date code.
Ganging (Multiple Section Pots)................................................................................... 1 cup maximum
Hardware (6639 only).................................. One lockwasher (H-37-2) and one mounting nut (H-38-2)
is shipped with potentiometer.
19.050+ 000/-.012
(.750+.0000/-.0005)
22.23
(.875)
DIA.
Environmental Characteristics1
Operating Temperature Range............. +1 °C to +125 °C.........................-40 °C to +125 °C
Storage Temperature Range................ -65 °C to +125 °C........................-65 °C to +125 °C
Temperature Coefficient
Over Storage Temperature Range....... ±500 ppm/°C maximum..............±500 ppm/°C maximum
Vibration............................................... 15 G............................................15 G
Wiper Bounce................................... 0.1 millisecond maximum............0.1 millisecond maximum
Total Resistance Shift....................... ±10 %..........................................±10 %
Voltage Ratio Shift............................ ±0.5 %.........................................±0.5 %
Shock................................................... 50 G............................................50 G
Wiper Bounce................................... 0.1 millisecond maximum............0.1 millisecond maximum
Total Resistance Shift....................... ±5 %............................................±5 %
Voltage Ratio Shift............................ ±0.5 %.........................................±0.5 %
Load Life............................................... 1,000 hours, 1 watt.....................1,000 hours, 1 watt
Total Resistance Shift....................... ±10 %..........................................±10 %
Rotational Life (No Load)..................... 10,000,000 shaft revolutions.......10,000,000 shaft revolutions
Total Resistance Shift....................... ±10 % maximum.........................±10 % maximum
Moisture Resistance (MIL-STD-202, Method 106)
Total Resistance Shift....................... ±15 %..........................................±15 %
IP Rating............................................... IP 40............................................IP 40
3.170 +.000/-.008
(.1248+.0000/-.0003)
DIA. SHAFT
.25
45° ± 5 ° x
(.010)
CHAMFER
.25
(.010)
REF
9.53 ± .79
(.375 ± .031)
22.23 ± .76
(.875 ± .03)
3/8 " - 32 UNEF
3.18
(.125)
5.537+.000/-.254
(.218+.000/-.010)
9.652 ± .254
(.380 ± .010)
.381
R (.015)
MAX.
Flatted Shaft
Option
65/6639
UR
BO NS
2
4.83
R
(.19)
CW
3
1At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.
22.82 N-cm (4.0 oz.-in.) max. at -40 °C.
1
30 °±3 °
TYP.
TOLERANCES: EXCEPT WHERE NOTED
.51 .13
DECIMALS: .XX ±
.XXX ±
(.020)
(.005)
FRACTIONS: ±1/64
MM
DIMENSIONS:
(IN.)
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of
this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
2
CCW
WIPER
3
1
CLOCKWISE
CW
.25
(.010)
REF
9.53 ± .79
(.375 ± .031)
22.23 ± .76
(.875 ± .03)
3/8 " - 32 UNEF
3.18
(.125)
5.537+.000/-.254
(.218+.000/-.010)
9.652 ± .254
(.380 ± .010)
.381
R
(.015)
MAX.
Flatted Shaft
Option
6539/6639 - Precision Potentiometer
65/6639
Standard Resistance
Table
2
Recommended Part Numbers
Part Number
6539S-1-102
6539S-1-502
6539S-1-103
UR
BO NS
Resistance (Ω)
1,000
5,000
10,000
Part Number
6639S-1-RC
6639S-2-RC
6639S-3-RC
6639S-4-RC
6639S-5-RC
6639S-6-RC
6639S-7-RC
6639S-8-RC
BOLDFACE LISTINGS ARE IN STOCK AND READILY
AVAILABLE THROUGH DISTRIBUTION.
FOR OTHER OPTIONS CONSULT FACTORY.
Mechanical
Stop
No
No
No
No
Yes
Yes
Yes
Yes
Shaft
No
No
Yes
Yes
Yes
Yes
No
No
Slotted
Flatted
Slotted
Flatted
Slotted
Flatted
Slotted
Flatted
R
Resistance Resistance
(.19)
3
1
(Ohms)
Code
1,000 102
2,000
202
5,000
502
10,000
103
30 °±3 °
TYP.
20,000
203
50,000
503
TOLERANCES: EXCEPT WHERE NOTED
100,000
104
.51 .13
DECIMALS: .XX ±
.XXX ±
(.020)
(.005)
FRACTIONS: ±1/64
MM
2.46 - 3.81
DIMENSIONS:
Schematic
(IN.)
(.097 - .150)
OPTIONAL A/R LUG
1.14
1.59 ± .025
X
(.045)
(.0625 ± .0010)
FROM MOUNTING SURFACE ON
7.92
RADIUS
(.312)
2.46 - 3.81
(.097 - .150)
4.83
CW
A/R Lug
2
CCW
1
WIPER
3
PANEL
CLOCKWISE
CW
HEX NUT
PANEL
MM
DIMENSIONS:
(IN.)
HEX NUT
Panel Thickness Dimensions
LOCKWASHER
POT
(For Bushing Mount Only)
2.46 - 3.81
(.097 - .150)
LOCKWASHER
POT
10.44 ± .07
DIA.
(.411 ± .003)
PANEL
HEX NUT
10.44 ± .07
DIA.
(.411 ± .003)
Panel thickness and hole diameters are
recommended for best fit. However, customers
may adjust the dimensions to suit their specific
application.
Panel thickness and hole diameters are
LOCKWASHER
recommended for best fit. However, customers
may adjust the dimensions to suit their specific
application.
DIMENSIONS:
MM
(INCHES)
TOLERANCES: ±
DIMENSIONS:
MM
(INCHES)
TOLERANCES: ±
0.127
(.005)
POT
0.127
(.005)
10.44 ± .07
DIA.
(.411 ± .003)
REV. 06/20
7.93
Specifications are subject to change without notice.
R
(.312)
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
ADDITIONAL HOLE FOR
ANTIROTATION PIN
1.78 +.07/-.02
DIA.
(.070 +.003/-.001)
Legal Disclaimer Notice
This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and its
affiliates (collectively, “Bourns”).
Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change
without notice. Users should check for and obtain the latest relevant information and verify that such information is current and
complete before placing orders for Bourns® products.
The characteristics and parameters of a Bourns® product set forth in its data sheet are based on laboratory conditions, and
statements regarding the suitability of products for certain types of applications are based on Bourns’ knowledge of typical
requirements in generic applications. The characteristics and parameters of a Bourns® product in a user application may vary
from the data sheet characteristics and parameters due to (i) the combination of the Bourns® product with other components
in the user’s application, or (ii) the environment of the user application itself. The characteristics and parameters of a Bourns®
product also can and do vary in different applications and actual performance may vary over time. Users should always verify
the actual performance of the Bourns® product in their specific devices and applications, and make their own independent
judgments regarding the amount of additional test margin to design into their device or application to compensate for
differences between laboratory and real world conditions.
Unless Bourns has explicitly designated an individual Bourns® product as meeting the requirements of a particular industry
standard (e.g., ISO/TS 16949) or a particular qualification (e.g., UL listed or recognized), Bourns is not responsible for any
failure of an individual Bourns® product to meet the requirements of such industry standard or particular qualification. Users of
Bourns® products are responsible for ensuring compliance with safety-related requirements and standards applicable to their
devices or applications.
Bourns® products are not recommended, authorized or intended for use in nuclear, lifesaving, life-critical or life-sustaining applications, nor in any other applications where failure or malfunction may result in personal injury, death, or severe property or
environmental damage. Unless expressly and specifically approved in writing by two authorized Bourns representatives on a
case-by-case basis, use of any Bourns® products in such unauthorized applications might not be safe and thus is at the user’s
sole risk. Life-critical applications include devices identified by the U.S. Food and Drug Administration as Class III devices and
generally equivalent classifications outside of the United States.
Bourns expressly identifies those Bourns® standard products that are suitable for use in automotive applications on such
products’ data sheets in the section entitled “Applications.” Unless expressly and specifically approved in writing by two
authorized Bourns representatives on a case-by-case basis, use of any other Bourns® standard products in an automotive
application might not be safe and thus is not recommended, authorized or intended and is at the user’s sole risk. If Bourns
expressly identifies a sub-category of automotive application in the data sheet for its standard products (such as infotainment
or lighting), such identification means that Bourns has reviewed its standard product and has determined that if such Bourns®
standard product is considered for potential use in automotive applications, it should only be used in such sub-category of
automotive applications. Any reference to Bourns® standard product in the data sheet as compliant with the AEC-Q standard
or “automotive grade” does not by itself mean that Bourns has approved such product for use in an automotive application.
Bourns® standard products are not tested to comply with United States Federal Aviation Administration standards generally
or any other generally equivalent governmental organization standard applicable to products designed or manufactured for
use in aircraft or space applications. Bourns expressly identifies Bourns® standard products that are suitable for use in aircraft
or space applications on such products’ data sheets in the section entitled “Applications.” Unless expressly and specifically
approved in writing by two authorized Bourns representatives on a case-by-case basis, use of any other Bourns® standard
product in an aircraft or space application might not be safe and thus is not recommended, authorized or intended and is at the
user’s sole risk.
The use and level of testing applicable to Bourns® custom products shall be negotiated on a case-by-case basis by Bourns and
the user for which such Bourns® custom products are specially designed. Absent a written agreement between Bourns and the
user regarding the use and level of such testing, the above provisions applicable to Bourns® standard products shall also apply
to such Bourns® custom products.
Users shall not sell, transfer, export or re-export any Bourns® products or technology for use in activities which involve the
design, development, production, use or stockpiling of nuclear, chemical or biological weapons or missiles, nor shall they use
Bourns® products or technology in any facility which engages in activities relating to such devices. The foregoing restrictions
apply to all uses and applications that violate national or international prohibitions, including embargos or international
regulations. Further, Bourns® products and Bourns technology and technical data may not under any circumstance be
exported or re-exported to countries subject to international sanctions or embargoes. Bourns® products may not, without prior
authorization from Bourns and/or the U.S. Government, be resold, transferred, or re-exported to any party not eligible
to receive U.S. commodities, software, and technical data.
To the maximum extent permitted by applicable law, Bourns disclaims (i) any and all liability for special, punitive, consequential,
incidental or indirect damages or lost revenues or lost profits, and (ii) any and all implied warranties, including implied warranties
of fitness for particular purpose, non-infringement and merchantability.
For your convenience, copies of this Legal Disclaimer Notice with German, Spanish, Japanese, Traditional Chinese and Simplified Chinese
bilingual versions are available at:
Web Page: http://www.bourns.com/legal/disclaimers-terms-and-policies
PDF: http://www.bourns.com/docs/Legal/disclaimer.pdf
C1753 05/17/18R
