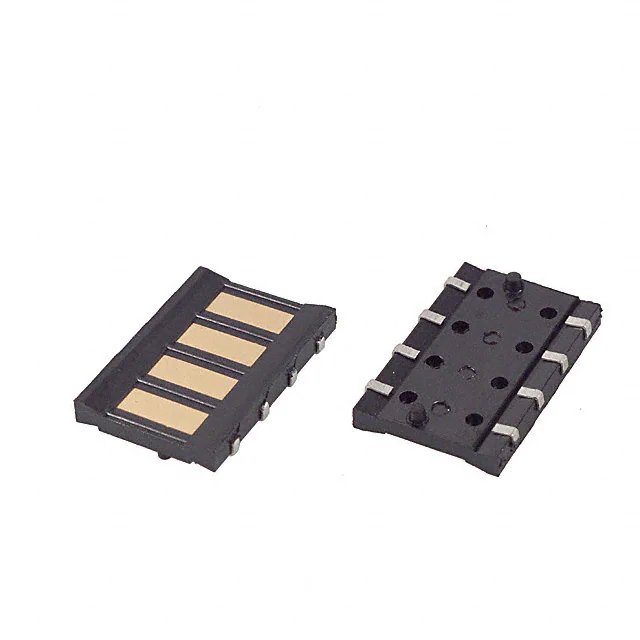

PL IA NT Features ■ Rechargeable battery-pack applications ■ Precious metal contacts ■ Tape & reel available ■ RoHS compliant* - see processing *R oH S CO M information on lead free modular contacts 70AD/Female - Modular Contact Materials & Finishes Insulator Glass reinforced thermoplastic, UL 94V-0 rated, black Contact .............................. Copper alloy Finish Underplating ............................. Nickel Contact Area ............................... Gold Termination.............................Tin alloy (meets MIL-STD-202, method 208) Operating Characteristics Electrical Current Rating ............ DC 3 A/contact Voltage Rating ........................DC 30 V Contact Resistance.........25 mW max. Dielectric Voltage .................AC 500 V Insulating Resistance .....500 MW min. Operating Temperature ................................. -55 °C to 125 °C Mechanical Durability .........................5,000 cycles How to Order Product Dimensions 70ADJ 4.0 (.157) 2.5 (.098) 70ADH 4.0 (.157) 2.5 (.098) 11.0 (.433) 6.02 11.0 (.237) (.433) B A 2.5 (.098) B A 2.5 (.098) 1.0 (.039) C 0.36 (.014) 2.08 (.082) 70AD J - 3 - F L 0 G Model Terminal Style J = SMT H = Through-hole Number of Contacts 2 through 6 Gender F = Female Height L = Low Profile Options 0 = Standard 1 = Locator Pins (J style only) Packaging Option __ = Tube (240/N pcs. or 240 contacts per tube) G = Embossed Tape (500 pcs. per reel) 4.48 (.176) 1.27 DIA. (.050) 0.7 (.028) 11.6 (.457) 15.0° REF 0.76 (.030) 2.3 (.091) 1.77 (.070) 0.6 (.024) 3.8 (.150) 0.7 (.028) 11.6 (.457) 1.0 (.039) 70ADH RECOMMENDED PWB MOUNTING PATTERN 4.0 (.157) 1.0 (.039) DIA. 8 PLCS. Number of Contacts 2 3 4 5 6 Dim. A 9.0 (.354) 13.0 (.512) 17.0 (.669) 21.0 (.827) 25.0 (.984) Dim. B 4.0 (.157) 8.0 (.315) 12.0 (.472) 16.0 (.630) 20.0 (.787) Dim. C 7.0 (.276) 11.0 (.433) 15.0 (.591) 19.0 (.748) 23.0 (.906) 0.6 (.024) 70ADJ RECOMMENDED PWB MOUNTING PATTERN C B 4.0 (.157) 3.9 (.154) 11.4 (.449) 1.65 (.065) DIA. 1.3 (.051) 8 PLCS 9.83 (.387) TOLERANCES: 0.3 UNLESS OTHERWISE NOTED (.012) MM DIMENSIONS: (INCHES) 2.5 (.098) 8 PLCS *RoHS Directive 2002/95/EC Jan 27 2003 including Annex. Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. 70AD/Female - Modular Contact Packaging Specifications 2.8 ± 0.2 (.110 ± .008) 0.30 ± 0.06 (.012 ± .002) 1.75 (.069) 4.0 (.157) 2.0 (.079) 1.50 +0.10/-0 (.059 +.004/-0) DIA. 1.75 (.069) 2.6 ± 0.2 (.102 ± .008) 0.30 ± 0.06 (.012 ± .002) 4.0 (.157) 2.0 (.079) DIA. 1.50 +0.10/-0 (.059 +.004/-0) 11.5 (.453) A 24.0 ± 0.3 (.945 ± .012) 1.5 +0.7/-0 (.059 +.028/-0) DIA. MIN. HOLE 4.0 (.157) 12.0 (.472) B 7.8 (.307) 12.0 (.472) 16.0 (.630) 25.5 (1.004) A 20.20 ± 0.15 (.795 ± .006) 40.4 (1.591) 44.0 ± 0.03 (1.732 ± .001) 4.0 (.157) 16.0 (.630) 2.0 +0.2/-0 (.079 +.008/-0) DIA. MIN. HOLE No. of Contacts 2 3 4 Dimension A 9.5 (.374) 13.5 (.531) 17.5 (.689) Dimension B 8.3 ± 0.2 (.327 ± .008) 8.3 ± 0.2 (.327 ± .008) 7.8 (.307) No. of Contacts 5 6 Dimension A 19.5 (.768) 25.5 (1.004) 13.00 DIA. MAX. (.512) 1.575 DIA. MIN. ACCESS HOLE AT (.062) SLOT LOCATION 0.512 ± .008 (.020 ± .0003) DIA. No. of Contacts 2 3 4 3.90 ± 0.04 (.154 ± .0016) Dimension A .961 (.038) .961 (.038) .961 (.038) 1.765 (.069) 1.765 (.069) MM (INCHES) Dimension B 1.197 (.047) 1.197 (.047) 1.197 (.047) 1.98 (.078) 1.98 (.078) 5 6 .059 (.002) MIN. EQUALLY SPACED 3 PLCS. DIMENSIONS: .795 (.031) DIA. MIN. .098 MIN. WIDTH X (.004) .394 MIN. DEPTH X (.016) SLOT IN CORE A B REV. 07/10 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
