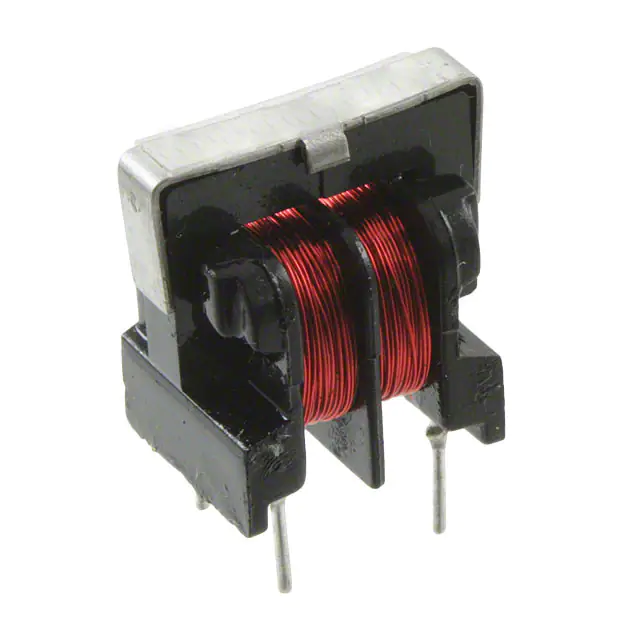

7350-V

Common Mode Inductors/EMI Filters Special Features 7300 Series • Reduce conductive EMI emission • High inductance, compact size • High attenuation at low frequency • Dielectric strength 3750Vrms • Coil wound on VW-1 rated plastic bobbin • Core mounted horizontal or vertical • • (add H or V after P/N) Rated current to cause 35°C maximum temperature rise Operating temperature -55 to +105°C Part Number 7350735173527353735473557356- L (mH) Min. @ 1KHz 0.5 1 2 5 8 10 22 I, DC (A) 1.5 1.2 0.85 0.5 0.4 0.35 0.27 11 max. 17 max. 17 max. (2) 1 2 4 min. (3) 4 0.6 8.0 -/+0.5 3 7.0 -/+0.5 Vertical Core Mount 1 15.5 max. 17 max. 4 12 max. (2) 1 Dim: mm (3) 4 8.0 -/+0.5 4 min. 0.6 7.0 -/+0.5 Horizontal Core Mount 306 E. Alondra Blvd., Gardena, CA 90247-1059 • (310) 515-1720 • FAX (310) 515-1962 90 w w w . j w m i l l e r . c o m DCR (Ω) Max. 0.12 0.22 0.4 1.0 2.0 2.2 4.0
