7814J-1-023E

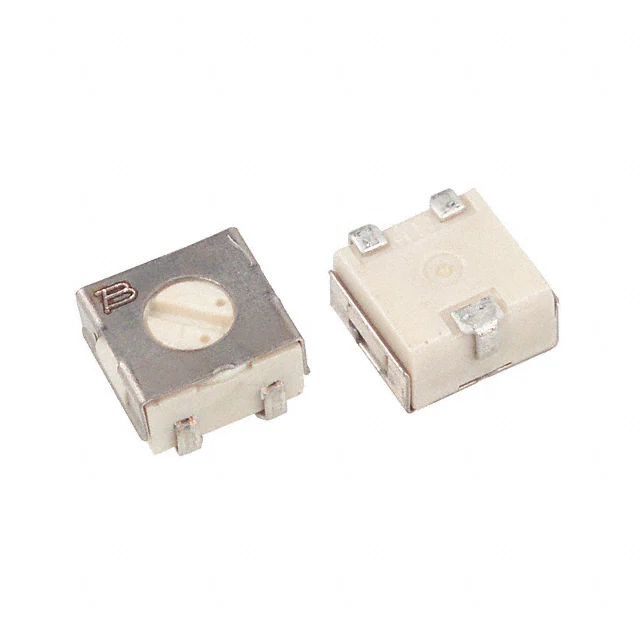

PL IA NT Features ■ ■ ■ ■ Single pole/double throw Compatible with most surface mount soldering processes 50 or 2000 cycle rotational life Compatible with popular vacuum pick-and-place equipment J-hook, gull-wing and through hole Meets EIA/EIAJ/IPC/VRCI SMD standard outline dimensions ■ RoHS compliant* ■ ■ *R oH S CO M 7814 SMD 4 mm Square Sealed Rotary Switch Electrical Characteristics Contact Rating Maximum Current ...........100 mA max. Maximum Voltage .........................16 V Contact Timing...................Non-shorting Contact Resistance ............2 ohms max. Insulation Resistance ..............................100 megohms min. Dielectric Strength ....................250 VAC General Characteristics Switch Type ...................................SPDT Operating Temperature Range ................................-55 °C to +125 °C Storage Temperature Range ................................-55 °C to +125 °C Seal Test .......................85 °C Fluorinert† Mechanical Characteristics Positions ...............................................2 Adjustment Torque..........1.8 N-cm max. Stop Strength ...................2.5 N-cm min. Pushover Strength (Z Style) ...........................2 kilograms minimum Weight.................Approximately 0.2 gm. Marking ...........................Manufacturer’s trademark, life code and date code Environmental Characteristics Vibration ..........................................20 G Shock ............................................100 G Thermal Shock .........................(5 cycles) -55 °C to +125 °C Humidity Insulation Resistance ................................10 megohms min. Rotational Life -051 ......................................50 Cycles -023 ..................................2000 Cycles Max. Soldering Heat ...................245 °C, 10 seconds Packaging Options J & G.......................................500 pcs. Z .............................................200 pcs. H ....................................100 pcs./tube How to Order Product Dimensions 7814J J-Hook 4.50 (.177) 7814H Through-hole 4.50 (.177) C C 5.00 ± 0.10 (.197 ± .004) OUTSIDE WHEN PINS ARE PARALLEL 051 CW X 0.51 WIDE (.020) 0.51 DEEP (.020) 051 2.55 (.100) CW CCW X CCW RECOMMENDED PCB LAYOUT 1.30 ± 0.10 (.051 ± .004) 2.0 (.079) 4.0 (.157) 2.0 (.079) 3 PLCS. 2.55 (.100) 0.60 ± 0.10 (.024 ± .004) 3 PLCS. 5.00 (.197) 2.3 (.091) 4.50 (.177) 1.00 (.039) 3 PLCS. 0.80 ± 0.10 (.031 ± .004) 2 PLCS. 1.3 (.051) 2 PLCS. 2.35 (.093) 7814G Gull Wing 4.50 (.177) C 7814Z Right Angle 5° MAX. TYP. ADJUSTMENT SLOT 2.45 LONG (.096) 0.51 X WIDE (.020) 0.55 X DEEP (.022) 2.55 (.100) ROTOR POSITIONED AS SHOWN WITHIN ± 22˚ OF CENTERLINE OF TERMINAL 2 ADJ. SLOT 3.08 2.41 (.121) (.095) LONG 0.51 X (.020) WIDE 0.60 X (.024) DEEP 3 4.50 (.177) 023 1 C CW CCW 0.20 (.008) TYP. RECOMMENDED PCB LAYOUT 7814 J - 1 - 051 E Model Terminal J = J-Hook G = Gull Wing H = Through-hole Z = Right Angle Switch Type 1 = SPDT Rotational Life -051 = 50 Cycles -023 = 2000 Cycles Optional Embossed Tape Designator (For pin styles J, G, Z only omit for tube packaging) 2.35 (.093) 2.30 (.091) 0.80 ± 0.10 (.031 ± .004) 2 PLCS. 1.30 (.051) 2 PLCS. 2.54 (.100) 1.27 (.050) 6.20 (.244) 1.30 (.051) 3 PLCS. 1.30 ± 0.10 (.051 ± .004) 5.00 (.197) 5.50 (.217) 2.00 (.079) 3.18 (.226) 0.61 (.024) 5.01 (.197) C 2 CCW 3 1 CW DIMENSIONS ARE: TOLERANCES: ±.2 EXCEPT WHERE NOTED. *RoHS Directive 2002/95/EC Jan 27 2003 including Annex. †“Fluorinert” is a registered trademark of 3M Co. Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. 2E 051 0.60 (.024) TYP. 1.19 (.047) 7A 4.00 (.157) TYP. 2.55 (.100) RECOMMENDED PCB LAYOUT 2.55 (.100) 0.80 TYP. DIA. (.031) 3.32 (.130) 0.96 (.038) 5.76 (.226) 5.60 (.220) 7A 5.00 4.50 (.197) (.177) ADJUSTMENT SLOT 2.45 LONG (.096) 6.30 4.50 (.248) (.177) 0.20 TYP. (.008) 7A RECOMMENDED PCB LAYOUT 2.54 0.26 (.100) (.010) 2.01 1.30 (.080) (.051) 1.29 (.050) 3.48 (.138) 2.01 (.080) 0.21 (.084) 2.01 (.080) MM (INCHES) 7814 SMD 4 mm Square Sealed Rotary Switch Packaging Specifications (J Style) .36 MAX. (.014) 2.74 ± .10 (.101 ± .004) 1.5 + .10/ –.00 DIA. (.059 + .004.–.00) 4.00 ± .10 (.157 ± .004) 2.74 ± .10 (.101 ± .004) 1.5 + .10/ –.00 DIA. (.059 + .004.–.00) 4.00 ± .10 (.157 ± .004) (G Style) .36 MAX. (.014) (Z Style) 5.90 REF. (.232) 7.60 REF. (.299) 0.40 MAX. (.016) 16.00 ± 0.30 (.630 ± .012) 7.50 ± 0.10 (.295 ± .004) 1.50 ± .10/ –.000 DIA. (.059 ± .004.–.00) 5.52 ± 0.5 (.217 ± .020) 7A 5.52 ± 0.5 (.217 ± .020) 7A 5.26 ± .10 (.207 ± .004) 051 6.45 ± .10 (.250 ± .004) 051 2.00 ± .05 (.079 ± .002) 5.26 ± .10 (.207 ± .004) 2.00 ± .05 (.079 ± .002) 5.26 ± .10 (.207 ± .004) 6.00 ± 0.10 (.236 ± .004) 8.00 ± .20 (.315 ± .008) 1.75 ± .10 (.069 ± .004) 12.00 ± .30 (.472 ± .012) TAPE 1.78 ± .254 (.070 ± .010) EQUAL SPACED 3 PLCS. 13.0 ± .508 (.512 ± .020) DIA. 21.01 ± .787 (.827 ± .031) DIA. 2.67 ± .254 (.105 ± .010) 1.78 ± .254 (.070 ± .010) EQUAL SPACED 3 PLCS. 21.01 ± .787 (.827 ± .031) DIA. 2.67 ± .254 (.105 ± .010) 1.75 ± 0.10 (.069 ± .004) 12.00 REF. (.472) TAPE 1.78 ± .254 (.070 ± .010) EQUAL SPACED 3 PLCS. 13.0 ± .508 DIA. (.512 ± .020) 59.18 ± 2 (2.330 ± .079) 180.0 ± 5 DIA. (7.087 ± .197) 12.4 + 2.01/ -.000 (.488 + .079/-.000) REEL Meets EIA specification 481. 59.18 ± 2 (2.330 ± .079) 8.00 ± .20 (.315 ± .008) 1.75 ± .10 (.069 ± .004) 12.00 ± .30 (.472 ± .012) 4.00 ± 0.10 (.157 ± .004) TAPE 1.50 ± 0.10 (.059 ± .004) 12.00 ± 0.10 (.472 ± .004) 5.50 ± 0.10 (.217 ± .004) 5.50 ± 0.10 (.217 ± .004) 13.0 ± .508 (.512 ± .020) DIA. 21.01 ± .787 (.827 ± .031) DIA. 2.67 ± .254 (.105 ± .010) 180.0 ± 5 DIA. (7.087 ± .197) REEL Meets EIA specification 481. 12.4 + 2.01/ -.000 (.488 + .079/-.000) 59.18 ± 2 (2.330 ± .079) 180.0 ± 5 DIA. (7.087 ± .197) (H Style) 6.60 (.260) 9.65 (.380) 4.24 (.167) REEL Meets EIA Specification 481. 16.4 + 2.00/ -.00 (.646 +.079/ -.00) Reflow Soldering Profile 275 225 Temperature (°C) 240 °C 180 °C 10-15 Sec. 80-90 Sec. 35-60 Sec. .51 ± .127 (.020 ± .005) 4.32 (.170) 175 125 120 °C 75 30-40 Sec. 25 0 20 40 60 TUBE LENGTH - 525MM. UNITS PACKAGED 100 PIECES PER TUBE. 80 100 120 140 160 180 200 Time (Seconds) REV. 09/04 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
