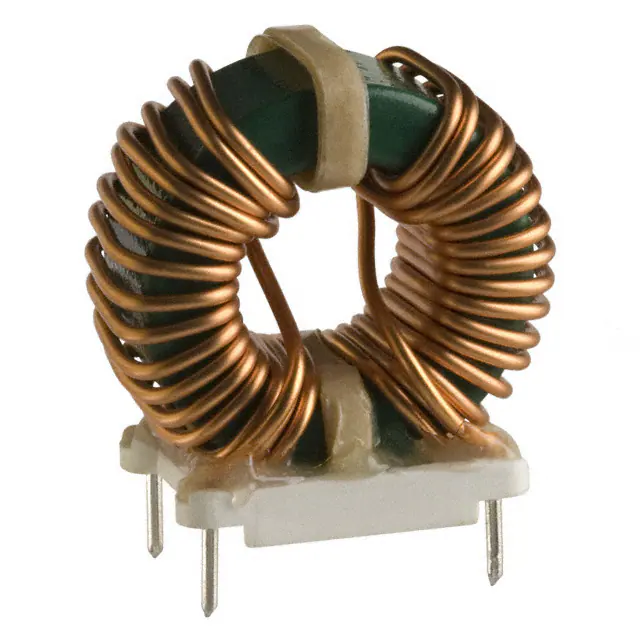

Common Mode Inductors (with Header) Special Features • Single layer wound • Excellent EMI suppression capability over wide frequency spectrum • High current capacity • Dielectric strength: 1500Vrms • Coil mount on VW-1 rated plastic header • Fixed pin spacing allow easy PCB insertion • Operating temperature: -55 - +105°C Part Number 8101 8102 8103 8104 8105 8106 8107 8108 8109 8110 8111 8112 8113 8114 8115 8116 8117 8118 8119 8120 8121 Notes * Rated current to cause approx. 35°C temperature rise L (mH) Min. @ 1KHz I (A)* Max. DCR (Ω) Max. 4 2.5 1 10 7 5 2 1 30 20 12 8 5 2.5 1.2 50 36 7.3 4 2.4 1 1.7 2.4 4.8 2.4 2.8 3.7 6.6 10 2.3 2.9 4 5.6 8.9 12.5 16 2.3 2.9 9.3 14.5 17 20 0.173 0.09 0.022 0.17 0.12 0.07 0.022 0.01 0.33 0.21 0.11 0.055 0.022 0.011 0.006 0.45 0.3 0.032 0.012 0.008 0.007 8100 Series Dim. Dim. A B Max. ±0.01 0.76 0.76 0.76 1.20 1.20 1.20 1.20 1.20 1.35 1.35 1.35 1.35 1.45 1.45 1.50 1.55 1.55 1.65 1.70 1.70 1.70 0.425 0.425 0.425 0.60 0.60 0.60 0.60 0.60 0.80 0.80 0.80 0.80 0.80 0.80 0.80 0.80 0.80 0.80 0.90 0.90 0.90 Dim. C ±0.015 Dim. D ±0.015 Dim. E Max. Dim. F Max. 0.600 0.600 0.600 0.800 0.800 0.800 0.800 0.800 0.900 0.900 0.900 0.900 0.900 0.900 0.900 0.900 0.900 0.900 1.200 1.200 1.200 0.250 0.250 0.250 0.400 0.400 0.400 0.400 0.400 0.600 0.600 0.600 0.600 0.600 0.600 0.600 0.600 0.600 0.600 0.700 0.700 0.700 0.90 0.90 0.90 1.20 1.20 1.20 1.20 1.20 1.45 1.45 1.45 1.45 1.50 1.50 1.53 1.65 1.65 1.65 1.65 1.65 1.65 0.040 0.040 0.040 0.050 0.050 0.050 0.050 0.050 0.050 0.050 0.050 0.050 0.043 0.053 0.060 0.050 0.050 0.043 0.060 0.067 0.067 Also available as RoHS compliant. A 0.12 min. B A 0.12 min. B E E D 0.09 0.15 F C 2 3 1 4 D 0.20 2 3 1 4 8101-8103 2 3 1 4 2 3 1 4 8104-8121 Dimensions: Inches 306 E. Alondra Blvd. Gardena, CA 90247-1059 • Phone (310) 515-1720 • FAX (310) 515-1962 25.4 wwww.jwmiller.com F C
