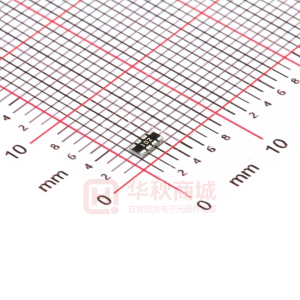

CAT16-1003J8LF

oH V SC AV ER OM AI SIO PL LA N IA BL S NT E Features ■ ■ ■ ■ ■ ■ Lead free version available (see How to Order “Termination” options) Lead free versions are RoHS compliant* Convex and concave terminals 2, 4 or 8 isolated elements available Resistance tolerance ±1 % and ±5 % Resistance range: 10 ohms to 1 megohm *R CAT/CAY 16 Series - Chip Resistor Arrays Specifications Requirement Short Time Overload Soldering Heat Temperature Cycling (5) Moisture Load Life Load Life Characteristics ±1 % (±2 % for CAT16-F8, -J8 & CAY16-J8) ±1 % ±1 % ±2 % (±3 % for CAT16-F8, -J8 & CAY16-J8) ±2 % (±3 % for CAT16-F8, -J8 & CAY16-J8) Test Method Rated Voltage X 2.5, 5 seconds 260 °C ±5 °C, 10 seconds ±1 second 125 °C (30 minutes) - normal (15 minutes) -30 °C (30 minutes) - normal (15 minutes) 1000 hours 1000 hours Characteristics Characteristics Number of Elements Power Rating Per Resistor Resistance Tolerance Resistance Range: E24 (J), E96 + E24 (F) Zero-Ohm Jumper < 0.05 ohm Max. Working Voltage Operating Temp. Range CAT16/CAY16 2 (J2), 4 (F4, J4), 8 (F8, J8) 62 mW (31 mW for CAY16-J8) ±1 %, ±5 % 10 ohms - 1 megohm 50 V (25 V for CAY16-J8) -55 °C - 125 °C How To Order CA Y 16 - 103 J 4 __ Chip Arrays Type • T = Concave • Y = Convex Models • J2 = 0606 Package Size • F4, J4 = 1206 Package Size • F8 = 2406 Package Size for CAT16 • J8 = 2406 Package Size for CAT16; 1506 Package Size for CAY16 Resistance Code • 103 = 10 K ohms • 1003 = 100 K ohms (1 % tolerance) • 000 = Zero-ohm Resistance Tolerance • J = ±5 % (Use “J” for zero-ohm jumper) • F = ±1 % (4 resistor package and CAT16-F8) Resistors • 2 = 2 Isolated Resistors • 4 = 4 Isolated Resistors • 8 = 8 Isolated Resistors Terminations* • LF = Tin-plated (lead free) • Blank = Solder-plated Soldering Profile for Lead Free Chip Resistors and Arrays 275 Maximum of 20 seconds between 260 °C peak 255 °C +255 °C and +260 °C 225 220 °C Temperature (°C) 190 °C 175 150 °C 60 - 90 seconds Ramp Down 3 °C/second *Model CAY16-J8 is available only with tin-plated terminations. 125 60 - 120 seconds 10 seconds minimum For Standard Values Used in Capacitors, Inductors, and Resistors, click here. Schematics 75 Ramp Up 3 °C/second maximum 25 0 50 100 150 Time (seconds) 200 250 300 CAT16-J2 CAY16-J2 CAT16-F4, -J4 CAY16-F4, -J4 R1 R2 R1 R2 R3 R4 CAT16-F8, -J8 CAY16-J8 R1 R2 R3 R4 R5 R6 R7 R8 *RoHS Directive 2002/95/EC Jan 27 2003 including Annex Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. CAT/CAY 16 Series - Chip Resistor Arrays Derating Curve Rated power in percentage (%) 100 80 60 40 20 0 -55 0 70 125 Ambient Temperature (˚C) Dimensions Model CAT16-F4, -J4 CAY16-F4, -J4 CAT16-J2 CAY16-J2 CAT16-F8, -J8 CAY16-J8 A 0.40±0.15 (.016±.006) 0.50±0.15 (.002±.006) 0.40±0.15 (.016±.006) — 0.40±0.15 (.016±.006) 0.30±0.15 (.012±.006) A — 0.70±0.10 (.027±.008) — 0.60±0.15 (.024±.006) — 0.30±0.15 (.012±.006) B 3.20±0.20 (.126±.008) 3.20±0.20 (.126±.008) 1.60±0.15 (.063±.006) 1.60±0.15 (.063±.006) 6.40±0.20 (.252±.008) 3.80±0.20 (.15±.008) DIMENSIONS ARE: C 0.80±0.05 (.032±.002) 0.80±0.05 (.032±.002) 0.80±0.05 (.032±.002) 0.76±0.10 (.030±.004) 0.80±0.15 (.032±.006) 0.50±0.05 (.02±.002) MM (INCHES) D 1.60±0.20 (.063±.008) 1.60±0.20 (.063±.008) 1.60±0.15 (.063±.006) 1.60±0.15 (.063±.006) 1.60±0.20 (.063±.008) 1.60±0.20 (.063±.008) E 0.50±0.10 (.020±.004) 0.50±0.10 (.020±.004) 0.60±0.15 (.024±.006) 0.45±0.10 (.018±.004) 0.60±0.15 (.024±.006) 0.50±0.10 (.02±.004) F 0.30±0.15 (.012±.006) 0.30±0.20 (.012±.008) 0.30±0.20 (.012±.008) 0.30±0.20 (.012±.008) 0.30±0.20 (.012±.008) 0.30±0.15 (.012±.006) Configurations CAT16-F4, -J4 A CAY16-F4, -J4 A' A CAT16-J2 A CAY16-J2 A' F F F F D C B C B B C C B E F CAT16-F8, -J8 A CAY16-J8 A' A F F D C B C B E F Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. CAT/CAY 16 Series - Chip Resistor Arrays Land Patterns CAT16-F4, -J4, -F8, -J8 Solder resist Land CAY16-F4, -J4, -J8 Solder resist Land CAT16-J2 p Solder resist Land CAY16-J2 p Solder resist Land f f f f Chip resistor array a a Chip resistor array a Chip resistor array a Chip resistor array b p b p b b Model CAT16-F4, -J4, -F8, -J8 CAY16-F4, -J4 CAY16-J8 CAT16-J2 CAY16-J2 a 0.7 to 0.9 (.028 to .035) 0.7 to 0.9 (.028 to .035) 0.7 to 0.9 (.028 to .035) 0.7 to 0.9 (.028 to .035) 0.7 to 0.9 (.028 to .035) b 0.4 to 0.45 (.016 to .0178) 0.4 to 0.45 (.016 to .0178) 0.3 to 0.35 (.012 to .014) 0.4 to 0.45 (.016 to .0178) 0.4 to 0.5 (.016 to .020) p 0.80 (.032) 0.80 (.032) 0.50 (.020) 0.80 (.032) 0.80 (.032) f 2.0 to 2.2 (.079 to .087) 2.4 to 2.8 (.094 to .11) 2.0 to 2.2 (.079 to .087) 2.2 to 2.6 (.087 to .102) 2.0 to 2.6 (.079 to .102) Packaging Dimensions 1.0 MAX. (.039) 1.5 + 0.1 - 0 (.059 + .004 - 0) 4.0 ± 0.1 (.158 ± .004) 2.0 ± 0.5 (.079 ± .020) 13.0 ± 0.5 (.511 ± .020) b c 60 (2.362) a DIMENSIONS ARE: MM (INCHES) 2.0 + 0.1/-0.2 (.08 + .004/-.008) 4.0 ± 0.1 (.157 ± .004) 180 (7.087) 21.0 ± 0.8 (.827 ± .031) d e Model CAT16-F4, -J4 & CAY16-F4, J4 CAT16-J2 & CAY16-J2 CAT16-F8, -J8 CAY16-J8 a 3.40 ± 0.10 (.134 ± .004) 1.80 ± 0.10 (.070 ± .004) 6.90 ± 0.20 (.272 ± .008) 4.10 ± 0.15 (.161 ± .012) b 3.50 ± .005 (.138 ± .004) 3.50 ± .005 (.138 ± .004) 5.50 ± 0.10 (.217 ± .004) 3.50 ± 0.05 (.138 ± .002) c 8.0 ± 0.3 (.315 ± .012) 8.0 ± 0.3 (.315 ± .012) 12.0 ± 0.2 (.472 ± .008) 8.0 ± 0.3 (.315 ± .012) d 9.0 ± 0.3 (.354 ± .012) 9.0 ± 0.3 (.354 ± .012) 13.0 ± 0.2 (.512 ± .008) 9.0 ± 0.3 (.354 ± .012) e 11.4 ± 1.0 (.449 ± .040) 11.4 ± 1.0 (.449 ± .040) 15.4 ± 1.0 (.606 ± .040) 11.4 ± 1.0 (.449 ± .040) • 5,000 pcs. per reel (J2, J4, CAY16-J8) 4,000 pcs. per reel (CAT16-F8, -J8) • Paper tape REV. 07/06 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. Chip Resistor Arrays - Application Note Component Placement a. Reduce the mechanical stress to a minimum during and after placing of the unit in order not to damage the terminals and protective coating. b. Misplacement of components may cause solder bridges. Soldering a. Reflow soldering: Recommendation is shown in the following chart. b. Wave soldering: Recommendation according to IEC standards. c. Hand soldering: Don’t touch the protective coating of the part. Solder within 3 seconds when the temperature is over 280 ºC. Temperature (¡C) Preheating 250 200 150 100 50 0 60 sec. min. Soldering Gradual Cooling 10-30 sec. 120 sec. min. Cleaning A recommended cleaning method is shown in the following table. Cleaning Condition Solvents Dipping Isopropyl alcohol 5 minutes maximum Ultrasonic Wave Washing 1 minute maximum Power: 20 W/L Frequency: 10 to 100 kHz Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
