CD123D-B140R

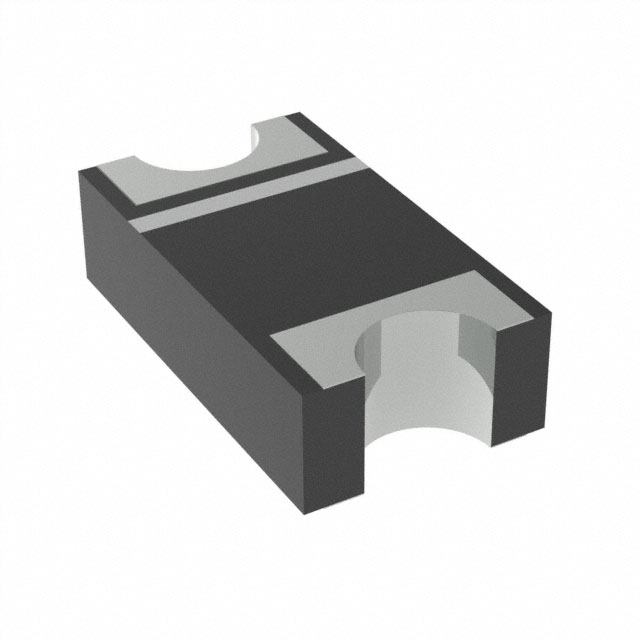

C O LO & MP LI GE AN N T FR EE *R oH S Applications n RoHS compliant* n Switch Mode Power Supplies (SMPS) n Leadless chip form n Portable equipment batteries n High current capability n High frequency rectification n Low forward voltage n DC/DC converters n Halogen free** n Telecommunications *R oH S C OM PL IA N T ** HA Features CD123D-B1xR Schottky Barrier Chip Diode Series General Information LE AD F RE E Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers small-signal Schottky Barrier Diodes for switching and rectification applications, in a compact chip package compatible with SOD-123 size format. The Schottky Barrier Diodes offer a forward current of 1 A with a choice of repetitive peak reverse voltage of 20 V and 40 V. Ro VE LEA HS RS D C ION FRE OM S E PL AR IA E NT * Absolute Maximum Ratings (@ TA = 25 °C Unless Otherwise Noted) Parameter Symbol Maximum Repetitive Peak Reverse Voltage Maximum Average Forward Rectified Current (TA = 55 °C) Peak Forward Surge Current 8.3 ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) Operating Temperature Range Storage Temperature Range VRRM CD123DB120R B140R B140LR 20 40 40 Unit V IF(AV) 1 A IFSM 20 A TJ -55 to +125 °C -55 to +150 °C TSTG Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Instantaneous Forward Voltage Symbol VF Repetitive Peak Reverse Current IR Junction Capacitance CJ Thermal Resistance RθJA RθJL Test Condition IF = 0.1A CD123D-B120R IF = 0.5 A CD123D-B140R IF = 1.0 A IF = 0.1A IF = 0.5 A CD123D-B140LR IF = 1.0 A CD123D-B120R CD123D-B140R VR = VRRM CD123D-B140LR CD123D-B120R VR = 4 V, CD123D-B140R f = 1.0 MHz CD123D-B140LR Junction to Ambient (1) Junction to Case (2) Min. Typ. 0.32 0.40 0.46 0.24 0.31 0.37 Max. 0.015 0.2 0.30 1.0 110 115 190 60 0.50 Unit V 0.38 mA pF °C/W NOTES: (1) Pulse test width PW = 300 us, 1 % duty cycle. (2) Mounted on P.C. board with 2.73 x 1.6 mm and 0.86 x 1.6 mm copper pad areas. Asia-Pacific: Tel: +886-2 2562-4117 • Email: asiacus@bourns.com EMEA: Tel: +36 88 520 390 • Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 • Email: americus@bourns.com www.bourns.com * RoHS Directive 2015/863, Mar 31, 2015 and Annex. **Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. CD123D-B1xR Schottky Barrier Chip Diode Series Performance Graphs - Model CD123D-B120R & CD123D-B140R Forward Current Derating Curve Maximum Non-Repetitive Peak Forward Surge Current 25 Peak Forward Surge Current (A) Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 0.2 0 0 25 50 75 100 125 20 15 10 5 0 150 8.3 ms Single Half Sine-Wave 1 Typical Forward Characteristics 100.00 Instantaneous Reverse Current (mA) Instantaneous Forward Current (A) 100 Typical Reverse Characteristics 10.00 1.00 0.10 0.01 0.001 10 Number of Cycles at 60 Hz Lead Temperature (°C) TA = 25 °C 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 10.00 TJ = 100 °C 1.00 0.10 TJ = 25 °C 0.01 . 0.001 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Forward Voltage (V) Typical Junction Capacitance 400 Junction Capacitance (pF) TJ = 25 °C f = 1.0 MHz Vsig = 50 mVP-P 100 10 0.1 1 10 Reverse Voltage (V) 100 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/ disclaimer.pdf. CD123D-B1xR Schottky Barrier Chip Diode Series Performance Graphs - Model CD123D-B140LR Forward Current Derating Curve Maximum Non-Repetitive Peak Forward Surge Current 25 1.0 Peak Forward Surge Current (A) Average Forward Current (A) 1.2 0.8 0.6 0.4 0.2 0 0 25 50 75 100 125 15 10 5 0 150 10 100 Typical Reverse Characteristics 100.00 Instantaneous Reverse Current (mA) 10.00 Instantaneous Forward Current (A) 1 Number of Cycles at 60 Hz Typical Forward Characteristics 1.00 0.10 0.01 8.3 ms Single Half Sine-Wave 20 Lead Temperature (°C) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 10.00 TJ = 100 °C 1.00 0.10 TJ = 25 °C 0.01 . 0.001 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Forward Voltage (V) Typical Junction Capacitance 400 Junction Capacitance (pF) TJ = 25 °C f = 1.0 MHz Vsig = 50 mVP-P 100 10 0.1 1 10 Reverse Voltage (V) 100 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/ disclaimer.pdf. D D E 3312 - 2 mm SMDBarrier Trimming CD123D-B1xR Schottky Chip Potentiometer Diode Series F Product Dimensions G Recommended Pad Layout A B D E C C A B D D E Dimension CD123D-B1xR A 2.73 MIN. (0.107) B 4.26 REF. (0.168) C 1.60 MIN. (0.063) D A4 . 0.67 MAX. (0.026) 0.86 MIN. (0.034) E Environmental Specifications F C Moisture Sensitivity Level.................................................................1 ESD Classification (HBM)............................................................. 3B G Typical Part Marking Dimension CD123D-B1xR A 3.40 ± 0.2 (0.0748 ± 0.0079) B 1.9 ± 0.2 (0.0748 ± 0.0079) C 1.6 P. TYP. (0.0630) D 0.7 ± 0.2 (0.0276 ± 0.0079) E 0.96 +0.2/-0.1 (0.0378 +0.0079/-0.0039) A F 2.3 ± 0.2 B (0.0906 ± 0.0079) G 0.43 ± 0.2 (0.0169 ± 0.0079) D E MM DIMENSIONS: (INCHES) A4 . Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 1 40L DEVICE CODE: 1 20 = CD123D-B120R 1 40 = CD123D-B140R 1 40L = CD123D-B140LR How to Order CD 123D - B 1 40 L R Common Code CD = Chip Diode Package 123D = SOD-123 Size Model B = Schottky Barrier Diode Average Forward Current 1=1A Reverse Voltage 40 = 40 V Forward Voltage (Blank) = Standard L = Low  CDDFN5-0504N - TVS/Steering Diode Array CD123D-B1xR Schottky Barrier Chip Diode Series Packaging Information The product will be dispensed in tape and reel format (see diagram below). P 0 P 1 d T E Index Hole 120 ° F D2 W B D1 D P A Trailer ....... ....... End 30 PITCHES C Device ....... ....... ....... ....... Leader ....... ....... POLARITY STRIP Start 30 PITCHES Direction of Feed Item REV. 11/17 Symbol Carrier Width A Carrier Length B Carrier Depth C Sprocket Hole d Reel Outside Diameter D Reel Inner Diameter D1 Feed Hole Diameter D2 Sprocket Hole Position E Punch Hole Position F Punch Hole Pitch P Sprocket Hole Pitch P0 Embossment Center P1 Overall Tape Thickness T Tape Width W Reel Width W1 Quantity per Reel W1 MM DIMENSIONS: (INCHES) -- Devices are packed in accordance with EIA standard EIA-481-D and specifications shown here. CD123D-B1xR 2.20 ± 0.10 0.087 ± 0.004 3.65 ± 0.10 (0.144 ± 0.004) 1.75 ± 0.10 (0.069 ± 0.004) 1.50 ± 0.10 (0.059 ± 0.004) 178 ± 2.0 (7.008 ± 0.079) 50 MIN. (1.969) 13.0 ± 0.5 (0.512 ± 0.020) 1.75 ± 0.10 (0.069 ± 0.004) 5.50 ± 0.05 (0.217 ± 0.002) 4.00 ± 0.10 (0.157 ± 0.004) 4.00 ± 0.10 (0.157 ± 0.004) 2.00 ± 0.10 (0.079 ± 0.004) 0.40 MAX. (0.016) 12.00 ± 0.30 (0.472 ± 0.012) 18.7 MAX. (0.736) 3000 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.  Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and its affiliates (collectively, “Bourns”). Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change without notice. Users should check for and obtain the latest relevant information before placing orders and should verify that such information is current and complete. The characteristics and parameters of a Bourns® product set forth in its data sheet are based on laboratory conditions, and statements regarding the suitability of products for certain types of applications are based on Bourns’ knowledge of typical requirements in generic applications. The characteristics and parameters of a Bourns® product in a user application may vary from the data sheet characteristics and parameters due to a combination of the Bourns® product with other components in the user’s application or due to the environment of the user application itself. Such characteristics and parameters also can and do vary in different applications and actual performance may vary over time. Users should always verify actual performance of the Bourns® product in their specific devices and applications, and make their own independent judgments about how much additional test margin to design in to compensate for differences between laboratory and real world conditions. Unless Bourns has explicitly designated an individual Bourns® product as meeting the requirements of a particular industry standard (e.g., ISO/TS 16949) or a particular qualification (e.g., UL listed or recognized), Bourns is not responsible for any failure of an individual Bourns® product to meet requirements of such industry standard or such particular qualification. Users of Bourns® products are responsible for ensuring compliance with safety-related requirements and standards applicable to their applications. Bourns® products are not recommended, authorized or intended for use in nuclear, lifesaving, life-critical or life-sustaining applications, nor in any other applications where failure or malfunction may result in personal injury, death, or severe property or environmental damage. Unless expressly and specifically approved in writing by two authorized Bourns representatives on a case-by-case basis, use of any Bourns® products in such unauthorized applications is at the user’s sole risk. Life-critical applications include devices identified by the U.S. Food and Drug Administration as Class III devices and generally equivalent classifications outside of the United States. Bourns® standard products that are designed and tested for use in automotive applications will be described on the applicable data sheets as compliant with the applicable AEC-Q standard. Unless expressly and specifically approved in writing by two authorized Bourns representatives on a case-by-case basis, use of any other Bourns® standard products in an automotive application is not recommended, authorized or intended and will be at the user’s sole risk. Bourns® standard products are not tested to comply with United States Federal Aviation Administration standards generally or any other generally equivalent governmental organization standard applicable to products designed or manufactured for use in aircraft or space applications. Bourns® standard products that are designed and tested for use in aircraft or space applications will be described on the applicable data sheets as compliant with the RTCA DO-160 standard. Unless expressly and specifically approved in writing by two authorized Bourns representatives on a case-by-case basis, use of any other Bourns® standard product in an aircraft or space application is not recommended, authorized or intended and will be at the user’s sole risk. The use and level of testing applicable to Bourns® custom products shall be negotiated on a case-by-case basis by Bourns and the user for which such Bourns® custom products are specially designed. Absent a written agreement between Bourns and the user regarding the use and level of such testing, the provisions above applicable to Bourns® standard products shall also apply to such Bourns® custom products. Users shall not sell, transfer, export or re-export any Bourns® products or technology for use in activities which involve the design, development, production, use or stockpiling of nuclear, chemical or biological weapons or missiles, nor shall they use Bourns® products or technology in any facility which engages in activities relating to such devices. The foregoing restrictions apply to all uses and applications that violate national or international prohibitions, including embargos or international regulations. Further, Bourns® products, technology or technical data may not under any circumstance be exported or re-exported to countries subject to international sanctions or embargoes, and Bourns® products may not, without prior authorization from Bourns and/or the U.S. Government, be resold, transferred, or re-exported to any party not eligible to receive U.S. commodities, software, and technical data. To the maximum extent permitted by applicable law, Bourns disclaims (i) any and all liability arising out of the application or use of any Bourns® standard product, (ii) any and all liability, including, without limitation, special, punitive, consequential or incidental damages, and (iii) any and all implied warranties, including implied warranties of fitness for particular purpose, non-infringement and merchantability. For your convenience, copies of this Legal Disclaimer Notice with German, Spanish, Japanese, Traditional Chinese and Simplified Chinese bilingual versions are available at: Web Page: http://www.bourns.com/legal/disclaimers-terms-and-policies PDF: http://www.bourns.com/docs/Legal/disclaimer.pdf C1753 10/18/17
