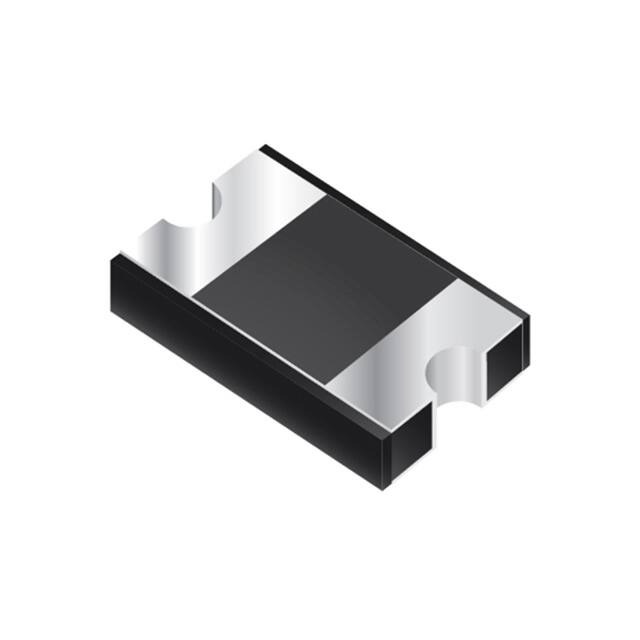

CD214B-FS2G

NT IA PL CO M S oH *R Features Applications ■ RoHS compliant* ■ Switching Mode Power Supplies ■ Low profile ■ Portable equipment batteries ■ Low power loss, high efficiency ■ High frequency rectification ■ UL 94V-0 classification ■ DC/DC Converters ■ Telecommunications CD214B-FS2x Series Fast Response Rectifier Chip Diode General Information Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Glass Passivated Rectifiers for rectification applications in a compact chip package compatible with DO-214AA (SMB) size format. The Glass Passivated Rectifier Diodes offer a forward current of 2 A with a choice of repetitive peak reverse voltage of 200 V up to 800 V. Absolute Maximum Ratings (@ TA = 25 °C Unless Otherwise Noted) Parameter Symbol CD214BFS2D 200 FS2G 400 FS2J 600 FS2K 800 Unit Maximum Repetitive Peak Reverse Voltage VRRM Maximum Average Forward Current IF(AV) 2 V A Maximum Peak Forward Surge Current (8.3 ms Single Half Sine-Wave) IFSM 50 A Operating Junction Temperature Range TOPR -65 to +175 °C Storage Temperature Range TSTG -65 to +175 °C Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Symbol Maximum Instantaneous Forward Voltage (NOTE 1) VF DC Reverse Current IR Reverse Recovery Time Trr IF = 0.5 A, IR = 1.0 A, Irr = 0.25 A Typical Junction Capacitance Typical Thermal Resistance (NOTE 2) CJ IF = 2 A Condition or Model CD214B-FS2D CD214B-FS2G CD214B-FS2J CD214B-FS2K VR = VRRM VR = 4 V, f = 1.0 MHz Min. Typ. 0.94 1.15 1.4 1.65 0.2 Max. 0.95 1.25 1.7 2.2 5 Unit V μA 35 nS 19 pF Junction to Ambient RθJA 66 Junction to Lead RθJL 8 °C/W NOTES: (1) Pulse width 300 microsecond, 1 % duty cycle. (2) Mounted on PCB with 5.0 x 5.0 mm (0.2 x 0.2 inch) copper pad areas. WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. CD214B-FS2x Series Fast Response Rectifier Chip Diode Performance Graphs Max. Peak Forward Surge Current 2.0 70 Peak Forward Surge Current (Amps) Average Forward Rectified Current (Amps) Forward Current Derating Curve 1.5 1.0 Resistive or Inductive Load PCB Mounted on 5.0 x 5.0 mm (0.2 x 0.2 inch) Copper Pad Areas 0.5 0 0 25 75 50 100 125 150 60 50 8.3 ms Single Half Sine-Wave 40 (JEDEC Method) 30 20 10 0 175 0 10 Lead Temperature (°C) Typical Instantaneous Forward Characteristics Typical Reverse Characteristics 100 10 CD214B-FS2D Instantaneous Reverse Current (mA) Instantaneous Forward Current (A) 100 Number of Cycles @ 60 Hz CD214B-FS2G 1 CD214B-FS2K 0.1 CD214B-FS2J Ta = 25 °C C 0.01 0.2 TJ = 150 °C 10 1 0.1 0.01 0.6 1.0 1.4 1.8 2.2 TJ = 125 °C TJ = 25 °C 0 20 40 60 80 100 110 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (Volts) Junction Capacitance (pF) Typical Junction Capacitance 200 100 10 1 0.1 TJ = 25 °C f = 1.0 MHz Vsig = 50 mVP-P 1 10 100 Reverse Voltage (Volts) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. CD214B-FS2x Series Fast Response Rectifier Chip Diode Product Dimensions Recommended Pad Layout A B G D DIA. C H I E E Dimension CD214B-FS2 Series G 2.65 MAX. (0.104) H 3.00 MIN. (0.118) I 6.65 REF. (0.262) F Dimension CD214B-FS2 Series A 5.20 ± 0.10 (0.205 ± 0.004) B 3.60 ± 0.10 (0.142 ± 0.004) C 3.01 TYP. (0.119) D (Dia.) 0.695 ± 0.015 (0.027 ± 0.001) E 1.15 ± 0.1 (0.045 ± 0.004) F 1.10 ± 0.15 (0.043 ± 0.006) DIMENSIONS: WW = WEEK NUMBER FS2D YWW MM (INCHES) Environmental Specifications Moisture Sensitivity Level ................................................................1 ESD Classification (HBM)............................................................. 3B MM (INCHES) Typical Part Marking DATE CODE: Y = LAST DIGIT OF YEAR DIMENSIONS: DEVICE CODE: FS2D = CD214B-FS2D FS2G = CD214B-FS2G FS2J = CD214B-FS2J FS2K = CD214B-FS2K How to Order CD 214B - FS 2 D Common Code CD = Chip Diode Package 214B = SMB/DO-214AA Compatible Model FS = Fast Response Rectifier Maximum Average Forward Rectified Current 2=2A Maximum Repetitive Peak Reverse Voltage D = 200 V G = 400 V J = 600 V K = 800 V Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. CD214B-FS2x Series Fast Response Rectifier Chip Diode Packaging Information The product is dispensed in tape and reel format (see diagram below). P 0 P 1 d T E Index Hole 120 ° F D2 W B D1 D P A Trailer End ....... ....... C Device ....... ....... Leader ....... ....... ....... ....... 30 pitches W1 Start DIMENSIONS: MM (INCHES) 30 pitches Direction of Feed Item Symbol CD214B-FS2 Series Carrier Width A 3.70 ± 0.10 (0.146 ± 0.004) Carrier Length B 5.40 ± 0.10 (0.213 ± 0.004) Carrier Depth C 1.65 ± 0.10 (0.065 ± 0.004) Sprocket Hole d 1.50 ± 0.10 (0.059 ± 0.004) Reel Outside Diameter D 330 ± 2.0 (12.992 ± 0.079) Reel Inner Diameter D1 Feed Hole Diameter D2 13.0 ± 0.50 (0.512 ± 0.020) Sprocket Hole Position E 1.75 ± 0.10 (0.069 ± 0.004) Punch Hole Position F 5.50 ± 0.05 (0.217 ± 0.002) Punch Hole Pitch P 8.00 ± 0.10 (0.157 ± 0.004) Sprocket Hole Pitch P0 4.00 ± 0.10 (0.157 ± 0.004) Embossment Center P1 2.00 ± 0.10 (0.079 ± 0.004) Overall Tape Thickness T Tape Width W Reel Width W1 Quantity per Reel -- 50.0 MIN. (1.969) 0.40 MAX. (0.016) 12.00 ± 0.30 (0.472 ± 0.012) 18.7 MAX. (0.736) 5,000 Asia-Pacific: Tel: +886-2 2562-4117 Email: asiacus@bourns.com Europe: Tel: +36 88 885 877 Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 Email: americus@bourns.com www.bourns.com REV. 08/19 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
