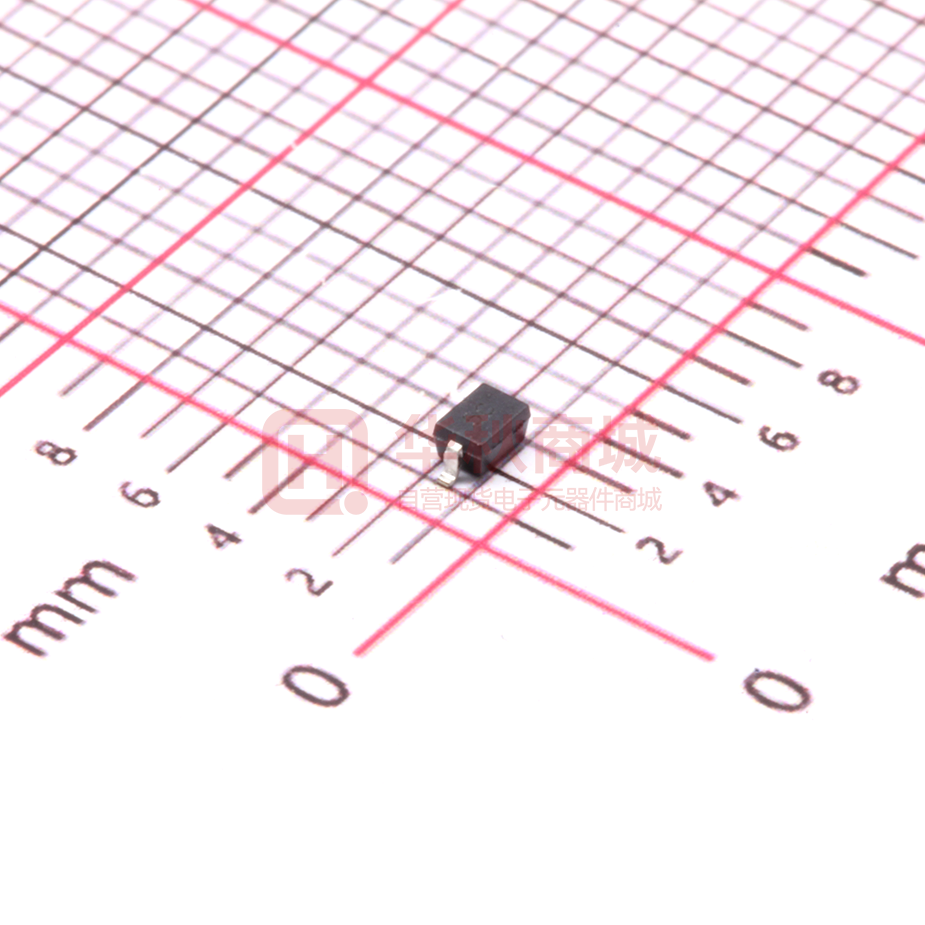

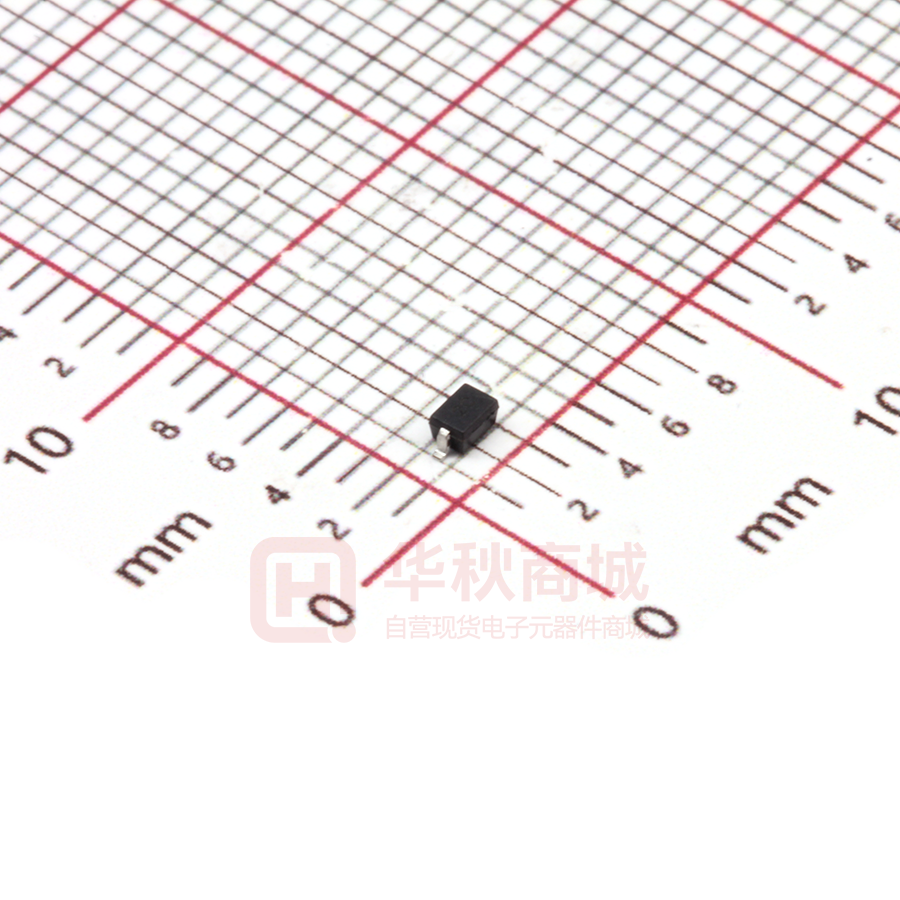

CDSOD323-T05C

T PL IA N M CO *R oH S Features Applications ■ RoHS compliant* ■ Cellular phones ■ Protects one line or one I/O port ■ PDAs and notebooks ■ Bidirectional configuration ■ Digital cameras ■ ESD protection 30 kV max. ■ MP3 players and GPS ■ Low capacitance: ~3 pF typical ■ USB interface ■ Replaces 0805 MLV devices CDSOD323-TxxC - TVS Diode Array Series General Information UNIDIRECTIONAL 1 Portable communications, computing and video equipment manufacturers are challenging the semiconductor industry to develop increasingly smaller electronic components. BIDIRECTIONAL 1 Bourns offers Transient Voltage Suppressor Array diodes for surge and ESD protection applications, in SOD323 package size format. The Transient Voltage Supressor Array series offers a choice of voltage types ranging from 3 V to 24 V in a unidirectional or bidirectional configuration. Bourns Chip Diodes conform to JEDEC standards, are easy to handle on standard pick and place equipment and their flat configuration minimizes roll away. The Bourns® device will assist compliance with IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT) and IEC 61000-4-5 (Surge) requirements. 2 Note: For 12 V and 24 V VDSL applications, the CDSOD323-TxxC-DSL family of devices is recommended. 2 Electrical & Thermal Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Peak Pulse Power (tp = 8/20 μs) Operating Temperature Storage Temperature Symbol Value Unit PPP 350 W TJ -55 to +150 °C TSTG -55 to +150 °C CDSOD323Parameter Symbol UniT03 BiT03C UniT05 BiT05C Minimum Breakdown Voltage @ 1 mA VBR 4.0 6.0 Working Peak Voltage UniT08 BiT08C UniT12 8.5 BiT12C 13.3 Unit V VWM 3.3 5.0 8.0 12.0 V Maximum Clamping Voltage @ IP = 1 A VC 7.0 9.8 13.4 19.0 V Typical Clamping Voltage @ 8/20 μs @ IPP VC 19.0 V @ 20 A 18.3 V @ 17 A 18.5 V @ 17 A 28.3 V @ 11 A V Maximum Leakage Current @ VWM ID 5 5 2 1 μA Typical Capacitance @ 0 V, 1 MHz CJ 3 pF CDSOD323Parameter Symbol UniT15 BiT15C UniT18 BiT18C UniT24 BiT24C Unit Minimum Breakdown Voltage @ 1 mA VBR 16.7 20.0 26.7 V Working Peak Voltage VWM 15.0 18.0 24.0 V Maximum Clamping Voltage @ IP = 1 A VC 24.0 29.0 43.0 V Typical Clamping Voltage @ 8/20 μs @ IPP VC 31.8 V @ 10 A 45.0 V @8A 56.0 V @6A V Maximum Leakage Current @ VWM ID 1 μA Typical Capacitance @ 0 V, 1 MHz CJ 3 pF Notes: 1. Part numbers with suffix “C” indicate bidirectional device, i.e. CDSOD323-T05C. 2. For bidirectional devices only, the electrical specifications apply in both directions. WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov *RoHS Directive 2015/863, Mar 31, 2015 and Annex. Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. CDSOD323-TxxC - TVS Diode Array Series Product Dimensions Recommended Footprint This is an RoHS compliant molded JEDEC SOD-323 package with 100 % Sn plating on the terminations. It weighs approximately 30 W L C CATHODE BAND (FOR UNIDIRECTIONAL PRODUCTS ONLY) S L A E Dimensions (Nominal) B F D H L 0.80 (0.031) S 1.40 (0.055) W 0.50 (0.020) J Dimensions A 1.60 - 1.90 (0.063 - 0.075) B 1.15 - 1.45 (0.045 - 0.057) C 2.39 - 2.70 (0.094 - 0.106) D 0.92 - 1.14 (0.036 - 0.045) E 0.25 - 0.40 (0.010 - 0.016) F 0.08 - 0.20 (0.003 - 0.008) H 0.13 ......... (0.005) MAX. J 0.30 - 0.45 (0.012 - 0.018) DIMENSIONS: MM (INCHES) DIMENSIONS: MM (INCHES) Typical Part Marking Each device has device marking outlined below and the unidirectional devices have an additional Polarity Band indicating the cathode. CDSOD323-T03 ............................................................................3 CDSOD323-T03C..........................................................................3C CDSOD323-T05 ............................................................................5 CDSOD323-T05C..........................................................................5C CDSOD323-T08 ............................................................................8 CDSOD323-T08C..........................................................................8C CDSOD323-T12 ............................................................................2 CDSOD323-T12C..........................................................................2C CDSOD323-T15 ............................................................................6 CDSOD323-T15C..........................................................................6C CDSOD323-T18 ............................................................................1 CDSOD323-T18C..........................................................................1C CDSOD323-T24 ............................................................................4 CDSOD323-T24C..........................................................................4C Environmental Specifications Moisture Sensitivity Level ................................................................1 ESD Classification (HBM)............................................................. 3B Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. CDSOD323-TxxC - TVS Diode Array Series Performance Graphs Peak Pulse Power vs Pulse Time Pulse Waveform 120 1,000 350 W, 8/20 µs Waveform 100 10 0.1 1 10 100 1,000 10,000 IPP – Peak Pulse Current (% of IPP) PPP – Peak Pulse Current (W) 10,000 Test Waveform Parameters tt = 8 µs td = 20 µs tt 100 80 et 60 40 td = t|IPP/2 20 0 0 5 10 Block Diagram 15 20 25 30 t – Time (µs) td – Pulse Duration (µs) How to Order UNIDIRECTIONAL 1 BIDIRECTIONAL 1 CD SOD323 - T 05 C Common Code Chip Diode Package SOD323 = SOD-323 Package Model T = Transient Voltage Suppressor Working Peak Reverse Voltage 05 = 5 VWM (Volts) 2 2 Suffix C = Bidirectional Diode Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. CDSOD323-TxxC - TVS Diode Array Series Packaging Information The product is packaged in tape and reel format per EIA-481 standard. P 0 P 1 d T E Index Hole 120 ° F D2 W B D1 D P Trailer ....... ....... End A Product Orientation C Device ....... ....... 10 pitches (min.) ....... ....... Leader ....... ....... 10 pitches (min.) W1 Start DIMENSIONS: MM (INCHES) Direction of Feed Item Symbol SOD-323 Carrier Width A 1.55 ± 0.10 (0.061 ± 0.004) Carrier Length B 2.90 ± 0.10 (0.114 ± 0.004) Carrier Depth C 1.35 ± 0.10 (0.053 ± 0.004) Sprocket Hole d 1.55 ± 0.05 (0.061 ± 0.002) Reel Outside Diameter D 178 (7.008) Reel Inner Diameter D1 Feed Hole Diameter D2 13.0 ± 0.20 (0.512 ± 0.008) Sprocket Hole Position E 1.75 ± 0.10 (0.069 ± 0.004) Punch Hole Position F 3.50 ± 0.05 (0.138 ± 0.002) Punch Hole Pitch P 4.00 ± 0.10 (0.157 ± 0.004) Sprocket Hole Pitch P0 4.00 ± 0.10 (0.157 ± 0.004) Embossment Center P1 2.00 ± 0.05 (0.079 ± 0.002) Overall Tape Thickness T 0.20 ± 0.10 (0.008 ± 0.004) Tape Width W 8.00 ± 0.20 (0.315 ± 0.008) Reel Width W1 Quantity per Reel -- 80.0 MIN. (3.150) 13.5 MAX. (0.531) 3000 Asia-Pacific: Tel: +886-2 2562-4117 Email: asiacus@bourns.com Europe: Tel: +36 88 885 877 Email: eurocus@bourns.com The Americas: Tel: +1-951 781-5500 Email: americus@bourns.com www.bourns.com REV. 09/19 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
