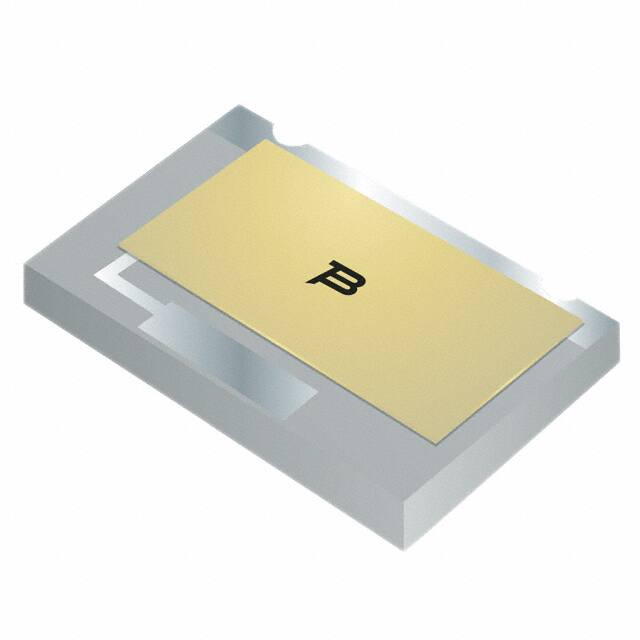

CHF3523CNT500LW

T PL IA N M CO *R oH S Features This series is currently available but not recommended for new designs. ■ DC to 5 GHz ■ Terminal for lead attachment ■ Low VSWR Applications ■ Aluminum Nitride substrate ■ Drop-In isolators ■ Hybrid couplers ■ RF power amplifiers CHF3523xNT Series Power RF Chip Termination Derating Curve 160 Percentage of Rated Power (%) General Specifications Substrate ......................................... ALN Resistor ..................................Thick Film Resistance ......................................50 W Tolerance ........................................±5 % Packaging .......................... 100 pcs./bag Absolute Ratings Power Version C...................................150 W Version D...................................100 W Frequency Version C...................................3 GHz Version D...................................5 GHz VSWR* Version C....................... 1.2 Maximum Version D....................... 1.1 Maximum *VSWR
