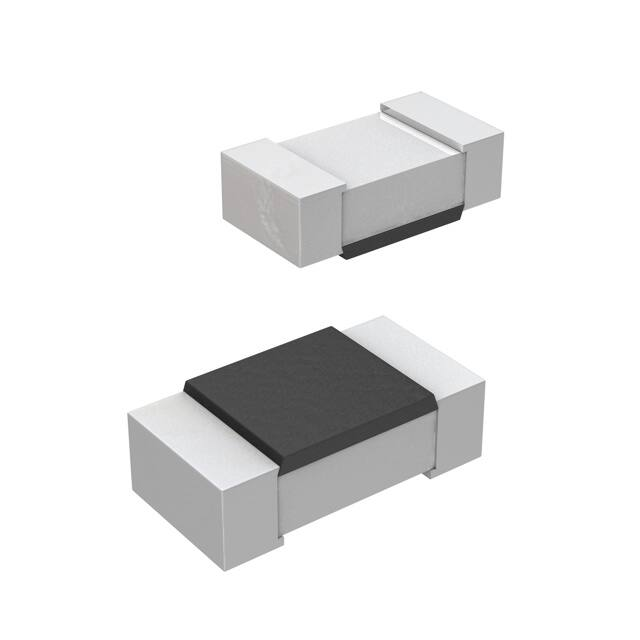

CRT0603-BZ-15R0EAS

T PL IA N M CO *R oH S Features Applications ■ Ultra-tight tolerance ■ Current sense ■ Wide resistance range ■ Precision circuits ■ RoHS compliant* ■ Medical equipment** ■ Four package sizes available ■ Printers ■ Sulfur-resistant ■ Automation equipment ■ Navigation equipment CRT-AS Series - Sulfur-Resistant Thin Film Precision Chip Resistors Electrical Characteristics Characteristic Power Rating @ 70 °C Operating Temperature Range Derated to Zero Load at Maximum Working Voltage Maximum Overload Voltage Resistance Range (E-96 + E-24 Values) Model CRT0402-AS 1/16 watt Model Model CRT0603-AS CRT0805-AS 1/10 watt 1/8 watt -55 to +155 °C +155 °C 75 V 150 V 150 V 300 V 25 V 50 V Model CRT1206-AS 1/4 watt 200 V 400 V (See Standard Values Table) ±10 PPM/°C, ±15 PPM/°C, ±25 PPM/°C, ±50 PPM/°C, (See Value - TCR Table on Page 2) Temperature Coefficient of Resistance (TCR) Environmental Characteristics Specification Short Time Overload Load Life Humidity (Steady State) Thermal Shock Solderability Resistance to Soldering Heat Mechanical Shock Vibration ESD Flammability Sulfur Test Test Method JIS-C-5201-1 4.13 IEC 60115-1 4.13 MIL-STD-202 Method 108 MIL-STD-202 Method 103 JESD22 Method JA-104 JIS-C-5201-1 4.17 IEC 60115-1 4.17 JIS-C-5201-1 4.18 IEC 60115-1 4.18 MIL-STD-202 Method 213 MIL-STD-202 Method 204 AEC-Q200-002, 2 kV UL-94V0 ASTM-B-809-95 3~5 PPM H2S, 50 ± 2 °C, 91~93 % RH, no load for 1000 hrs. Limit (ΔR) (Tol. ≤ 0.05 %) Limit (ΔR) (Tol. > 0.05 %) ±0.2 % ±0.5 % ±0.5 % ±0.05 % ±0.2 % >95 % coverage ±0.05 % ±0.2 % ±0.05 % ±0.05 % ±0.1 % ±0.1 % ±0.1 % -±0.5 % How to Order CRT 0603 - C V - 1003 E AS Model (CRT = Thin Film Precision Chip Resistor Size 0402 • • 0603 • 0805 • 1206 Resistance Tolerance F = ±1 % D = ±0.5 % C = ±0.25 % B = ±0.1 % A = ±0.05 % TCR (PPM/°C) X = ±15 Y = ±25 Z = ±50 W = ±10 Resistance Value
