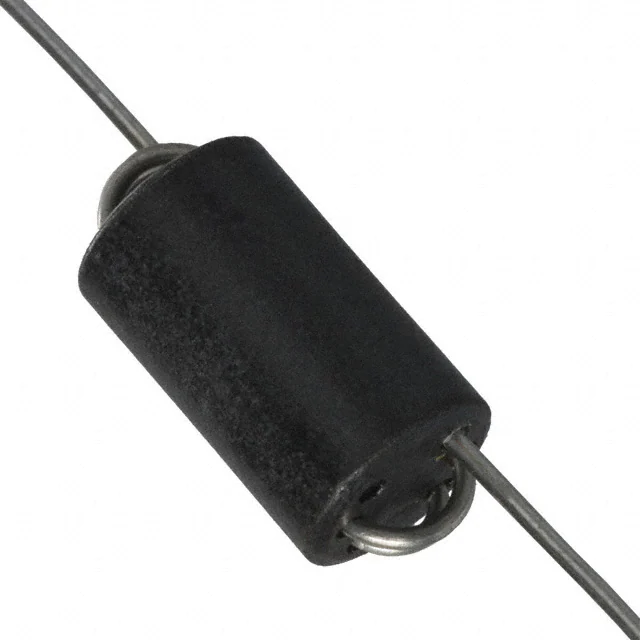

FB20020-4B

Wide-Band Chokes Special Features • High impedance • Excellent EMI suppression capability at wide frequency range • Low cost • Differential & common mode configuration Part Number No. of turns FB20009-3B FB20019-4B FB20010-3B FB20020-4B FB20011-3B FB20021-4B FB20022-4B 1 1/2 1 1/2 2 1/2 2 1/2 2 x 1 1/2 2 x 1 1/2 3 FB2000 Series Z (Ω) Z (Ω) ±25% ±25% @ 10MHz @ 100MHz 225 175 460 30 215 175 430 400 500 785 410 415 485 900 Fig. A A B B C C D Also available as RoHS compliant. 0.138 0.236 45° 0.394 Core Dimension 0.024 0.55 Max. 1.5 Fig. A Fig. B Fig. C Fig. D Dimensions: Inches 306 E. Alondra Blvd. Gardena, CA 90247-1059 • Phone (310) 515-1720 • FAX (310) 515-1962 wwww.jwmiller.com 14.1
